3-Axis CNC Router
The 3-axis CNC router is a computer-controlled CNC machine tool used for precision cutting, engraving, and shaping a variety of materials. It operates based on a CNC system, giving precise instructions through software to guide the movement of the cutting tool. “3-axis” means the machine can move along three different axes: X, Y, and Z. The X-axis represents horizontal movement, the Y-axis represents vertical movement, and the Z-axis controls depth or spindle movement. This configuration enables the CNC router to create complex designs and prototypes with high precision.
The 3-axis CNC router is commonly used in woodworking, metalworking, and plastic manufacturing. The CNC router operates according to programmed instructions, enabling efficient and repeatable production. Users create designs using computer-aided design (CAD) software, which is then converted into machine-readable code. Applications range from intricate detailing in woodworking to precise cutting of metal parts. The efficiency and repeatability of CNC routers make them an essential tool for industries that require complex and precise machining capabilities, streamline production processes, and ensure consistent output.
Tips for Choosing a Suitable 3-axis CNC Router
For craftsmen and manufacturers, starting with choosing the right 3-axis CNC router is a critical decision. From precision requirements to material versatility, we guide you through the essential factors to ensure your investment is seamlessly matched to your specific processing needs. Whether you are a seasoned professional or new to CNC technology, our tips are designed to help you make an informed choice about a 3-axis CNC router that will improve your process and productivity.
Understand Your Application Needs
Before we dive into the technical specifications, first determine the primary purpose of the CNC router. Different applications require different functionality. Do you specialize in woodworking, metalworking, signage, prototyping, or a combination of these? Understanding your specific application will guide your choice.
Work Area Size
Consider the size of the work area required for your project. A larger work area allows the flexibility to work with a wider range of materials and larger designs. Measure the dimensions of your commonly used materials to ensure they fit comfortably within the CNC router’s working envelope.
Spindle Power And Speed
The spindle is the power source of the CNC router, and its power and speed directly affect the cutting ability. Consider the material you will be working with and the depth of cut required. Higher spindle power and adjustable speed provide the versatility to handle a variety of materials and achieve optimal results.
Precision And Accuracy
Evaluate the level of precision and accuracy provided by the CNC router. Assess machine accuracy by factors such as ball screws, linear guides, and overall build quality. Look for features that help improve accuracy, such as backlash compensation and advanced control systems.
Material Compatibility
Different CNC routers are suitable for different materials. Make sure the CNC router you choose is compatible with the core materials of your project. Whether it’s wood, plastic, metal, or composites, a CNC router should handle your materials with ease and precision.
Control System And Software
Check user interface, control system, and software compatibility. A user-friendly interface and intuitive control system help simplify operation. Compatibility with industry-standard software ensures seamless integration with your existing design and manufacturing workflows.
Construction And Build Quality
Check the construction and build quality of the CNC router. High-quality materials and sturdy construction contribute to machine longevity and stability during operation. Well-built machines not only ensure durability but also maintain consistent accuracy over the long term.
Tool Changing System
For increased efficiency and versatility, consider a 3-axis CNC router with an automatic tool change system. This feature allows the machine to switch seamlessly between different tools, reducing downtime and expanding the range of tasks the router can perform.
Dust Removal System
Effective dust collection helps maintain a clean and safe workspace. Look for CNC routers equipped with effective dust collection systems to minimize the impact of debris on machine performance and ensure a healthy working environment.
Maintenance And Support
Consider the maintenance requirements of the CNC router. Machines with removable components and simple maintenance procedures save time and reduce downtime. Additionally, ask about the availability of customer support, warranty, and training options to ensure ongoing assistance.
Budget Considerations
Create a realistic budget based on your business or personal financial constraints. While it’s tempting to choose the most advanced features, balance your needs with budget considerations. Look for a machine that offers the best combination of features within your finances. Consider the long-term benefits of your investment in improving productivity and capabilities.
Comments And Suggestions
Research customer reviews and seek advice from industry peers. Real-world experience can provide valuable insights into the performance, reliability, and overall satisfaction of a specific CNC router model or brand.
What materials can the 3-axis CNC router cut?
The 3-axis CNC router is a versatile machine that can cut a variety of materials. But it may vary based on factors such as the machine’s power, rigidity, spindle speed and type of cutting tool used. The following are the materials that the 3-axis CNC router can cut:
Wood
- Pine
- Oak
- Maple
- Plywood
- MDF
- Cedar
- Teak
Plastics
- Acrylic
- PVC
- HDPE
- LDPE
- Polycarbonate
- PET
- PU
Metal
- Stainless Steel
- Carbon Steel
- Aluminum
- Aluminum
- Copper
- Titanium
- Gold
Others
- Rubber
- Carbon Fiber
- Laminates
- Leather
- Glass
- Stone
- Ceramics
Application Industry
Construction Industry
The integration of CNC routers into construction workflows has ushered in a new era characterized by meticulous detailing, rapid prototyping, and improved material utilization.
Aerospace Industry
The CNC router is widely used in aerospace engineering due to its unparalleled ability to carve complex designs, manufacture complex parts, and ensure tight tolerances.
Jewelry Industry
The CNC router revolutionize the way fine jewelry is designed and made by delivering unparalleled precision and efficiency and producing intricate designs with meticulous attention to detail.
Stone Carving Industry
The integration of CNC routers into the stone carving industry is not only revolutionizing the way craftsmen carve, it is also redefining the boundaries of artistic possibilities in this ancient practice.
Blog
Is It Difficult to Learn CNC Router?
In this article, we will explore what it takes to learn CNC router operation, breaking down the skills involved, the learning curve, and how beginners can handle the learning challenges.
Read More
What are The Disadvantages and Advantages of Wood CNC Router?
In this article, we will delve into both the benefits and drawbacks of using a wood CNC router, providing a balanced view to help you assess whether this tool is ...
Read More
The Impact of Spindle Power on CNC Router Functionality
This article will delve into how spindle power affects the overall functionality of CNC routers, helping users make informed decisions based on their specific production needs.
Read More
How to Evaluate Energy Consumption and Operating Costs of CNC Router?
This article will guide you through the elements to consider when evaluating the energy consumption and operating costs of a CNC router, providing you with strategies to reduce operating costs.
Read More

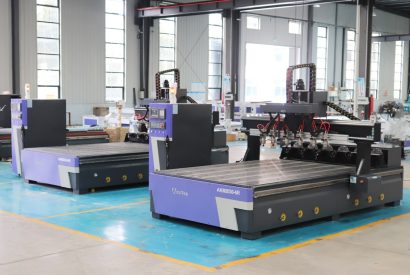

How do I Choose The Right CNC Router Size and Capacity for a Specific Need?
In this article, we’ll walk you through the key considerations when determining the proper size and capacity of a CNC router, aiming to help you make an informed decision that ...
Read More
How to Choose the Perfect Woodworking CNC Router Bit
In this article, we’ll walk you through the essential factors to consider when choosing the perfect woodworking CNC router bit. We aim to help you choose the best router bit ...
Read More
Frequently Asked Questions
What is a 3-Axis CNC Router?
The 3-axis CNC router is a cutting-edge machining device that operates along 3 axes (X, Y, and Z) to transform digital designs into precise, tangible creations. This advanced tool is designed to cut, engrave, mill, and shape a variety of materials with exceptional precision and efficiency.
The X-axis represents side-to-side movement, allowing the cutting tool to move horizontally. The Y-axis represents forward and backward motion, allowing the tool to move the workpiece vertically. The Z-axis controls the up and down motion of the tool, determining the cutting and forming depth within the material. This 3-axis configuration enables the CNC router to execute complex designs with unparalleled precision, making it an indispensable and versatile tool in various industries.
These CNC routers operate via computer numerical control, interpreting digital design files and converting them into precise movements of cutting tools. Cutting tools are typically spindles with various router bits that follow programmed paths to engrave, mill, or cut materials such as wood, plastic, metal, and composites.
The advantage of a 3-axis CNC router is its ability to automate tasks and ensure consistency and accuracy in production. It is widely used in woodworking, standard fabrication, prototyping, and other fields, providing efficiency and versatility in material processing. Whether crafting detailed furniture components or producing complex prototypes, 3-axis CNC routers are at the forefront of modern manufacturing, embodying the precision and flexibility to create diverse and complex designs.
How does 3-Axis CNC Router work?
The 3-axis CNC router operates through precisely choreographed processes to accurately and efficiently transform digital designs into physical creations. Here’s a detailed explanation of how it works:
- Design Input: The process begins by creating a digital design using specialized CAD (computer-aided design) or CAM (computer-aided manufacturing) software. The design serves as a blueprint for the desired machined object or pattern.
- Design Conversion: Computer-aided manufacturing (CAM) software is then used to convert the digital design into a CNC-compatible format. This step involves converting the design into a set of instructions that the CNC router can interpret.
- Material Setup: The workpiece is usually a piece or piece of material, such as wood, plastic, metal, or composite, fixed to the CNC router’s workbench. Proper clamping and securing of materials helps ensure stability during processing.
- Tool Selection: The appropriate cutting tool, such as end mills or router bits, is selected based on the material type and the intricacy of the design. Different tools are used for roughing and finishing.
- Machine Initialization: The operator loads the program into the CNC router’s control unit. The machine is calibrated and zeroed to ensure it operates from the correct reference point.
- Execute Command: The CNC router executes the machining process according to the programming instructions. X, Y, and Z axis motors precisely move the cutting tool along the specified path and depth according to the programmed tool path. As the CNC router traverses these paths, it cuts, carves, or shapes the material, guided by programmed commands.
- Monitoring And Control: Throughout the operation, the CNC router’s sensors and feedback system monitor various parameters such as speed, tool position, and material resistance. The operator oversees the entire process, ensuring the machine is running smoothly and intervening when adjustments or modifications are needed.
- Quality Control: Throughout the entire machining process, operators can monitor operations and make real-time adjustments as needed. Quality control measures ensure that finished products meet specified dimensional and quality standards.
- Unloading And Setting Up: The machined parts are removed from the body of the CNC router to make room for the next job. If needed, machine settings can be adjusted for the next project, including changing tools or repositioning the workpiece.
How to maintain and care for the 3-Axis CNC Router?
Proper maintenance and upkeep are essential to ensure the longevity, accuracy, and efficient operation of your 3-axis CNC router. Here is a detailed guide on how to maintain and care for your CNC router:
- Regular Cleaning: Clean the machine regularly to remove dust, chips, and debris that accumulate during cutting operations. Use compressed air to blow away debris from critical components (spindle, gantry, and ball screw). Be careful not to blow debris into hard-to-reach areas.
- Lubrication: Check and lubricate moving parts according to manufacturer’s recommendations. Proper lubrication ensures smooth movement and extends the life of these components. If applicable, lubricate the spindle bearings according to the manufacturer’s recommendations.
- Tool Maintenance: Check cutting tools regularly for wear and damage. Promptly replace worn or damaged tools to ensure accurate cutting and prevent damage to the workpiece or machine. Calibrate tools regularly to maintain accuracy. Use a tool height setter or a touch probe to ensure the tool is at the correct height for precise cuts.
- Electronics And Wiring: Check wiring, connections, and electrical components for signs of wear, damage, or loose connections. Solve any problems promptly to prevent electrical failures. Keep control panels and electrical cabinets clean and dry, and protect electronic components from dust and moisture.
- Spindle Maintenance: Follow the manufacturer’s spindle maintenance guidelines, including cleaning, lubrication, and checking for any unusual noise or vibration.
- Coolant System: If your CNC router uses a coolant system, check and maintain the coolant level regularly. Make sure the coolant is clean and free of contamination. Follow the manufacturer’s recommendations for coolant type and change intervals.
- Shaft Alignment And Calibration: Regularly check machine shaft alignment and squareness. Misalignment can result in inaccurate cutting and engraving. Adjust and recalibrate as needed.
- Software And Control Systems: Regularly back up machine settings and important data. Update software and firmware as recommended by the manufacturer to ensure compatibility and access to new features.
- Operator Training And Best Practices: Provide machine operators with comprehensive training on proper use, safety protocols, and maintenance procedures. Educated operators can detect problems early and use machines efficiently.
- Operating Conditions: Maintain proper operating conditions, including stable power, adequate ventilation, and controlled temperature and humidity levels within the workspace.
- Regular Maintenance: Follow the manufacturer’s recommended maintenance schedule as outlined in your machine manual. Regular inspections and maintenance can help prevent unexpected breakdowns.
- Professional Service And Support: When you encounter complex problems or perform routine inspections and adjustments, seek professional service or support from certified technicians or the manufacturer.
- Documentation: Keep detailed records of maintenance activities, repairs, and any problems encountered. This documentation can aid in troubleshooting and provide valuable information for future maintenance.
3-Axis CNC Router Safety Operation Guide
The safe operation of a 3-axis CNC router is vital to the operator’s well-being and the machine’s service life. Here is a comprehensive guide to ensuring safe use of your machine:
- Operator Training: Before operating a CNC router, operators should receive thorough training on machine functions, emergency procedures, and safety protocols. Training should cover both theoretical and practical aspects of machine operation.
- Read The Manual: Familiarize yourself with the manufacturer’s operating manual. It provides important information about machine specifications, safety guidelines, and maintenance procedures. Keep the manual handy for quick reference.
- Personal Protective Equipment (PPE): Always wear appropriate personal protective equipment, including safety glasses, hearing protection, and, if necessary, a dust mask or respirator. Follow the manufacturer’s recommendations for your specific personal protective equipment.
- Machine Inspection: Perform a thorough inspection before starting the machine. Check for loose parts, damaged cables, and any anomalies that may compromise safety.
- Safe Work Area: Ensure the work area is free of obstructions, debris, and unnecessary tools to prevent accidents during machine operation. Keep your workspace clean and organized.
- Emergency Stops And Controls: Locate and become familiar with the emergency stop button. If any unexpected situation occurs, the operator should be able to quickly and easily reach the emergency stop position to stop the machine operation.
- Tool Inspection: Check cutting tools regularly for signs of wear or damage. Replace dull or damaged knives promptly to ensure safe and efficient cutting operations.
- Material Securing: Properly secure workpieces to prevent movement or displacement during cutting operations. Use appropriate clamps or fixtures to ensure stability.
- Tool Changing: Follow proper tool-changing procedures. Make sure the spindle is locked, the power is turned off, and the tool change is completed safely. Use the correct tools and follow manufacturer guidelines.
- Spindle Speed And Feeds: Follow the recommended spindle speeds and feeds for the specific material being machined. Operating within these parameters ensures optimal cutting performance and minimizes the risk of tool breakage.
- Material Handling: Follow proper material handling procedures. Lift and load material safely and ensure it is securely placed on the workbench.
- Machine Warm-Up: Allowing the CNC router to warm up before starting critical machining operations helps stabilize machine parts and improve accuracy.
- Programming And Setup: Before starting a cutting operation, double-check the CNC program and tool paths for accuracy. Verify that the tool path is appropriate for the material and cutting tool being used.
- Supervision And Monitoring: An operator is present throughout the process to monitor the machine and intervene when necessary. Regularly check the progress and quality of workpieces.
- Dust Collection: If your CNC router generates dust or debris, use an effective dust collection system. Proper dust management can improve air quality and reduce the risk of respiratory disease.
- Fire Safety Measures: Implement fire safety protocols and have appropriate fire-fighting equipment nearby. Maintain a fire-proof environment and ensure all flammable materials are stored away from the machine.
- Power Supply: ensure stable and reliable power supply of CNC router. Use a surge protector to protect against power fluctuations.
- Closing Procedures: Follow proper closing procedures when completing work or taking a break. Before attempting any maintenance or adjustments, make sure all moving parts have come to a complete stop.
- Regular Maintenance: Keep your machine in top condition by adhering to scheduled maintenance tasks. Regularly inspect electrical components and lubricate moving parts to ensure the overall integrity of the machine.
- Logging And Reporting: Operators are encouraged to report any malfunctions, anomalies, or safety issues immediately. Maintain complete records of reported issues and corrective actions taken.
How much is a 3-axis CNC router?
The cost of a 3-axis CNC router can vary greatly depending on factors such as its size, features, brand, and functionality. Entry-level or hobbyist-level models start at about $3,000 to $8,000, while mid-range CNC routers with more advanced features may start at $5,000 to $10,000. Industrial-grade or high-precision CNC routers suitable for mass production and complex tasks can cost upwards of $15,000, and may even reach hundreds of thousands of dollars.
When preparing to purchase a 3-axis CNC router, consider not only the initial purchase price, but also additional costs such as software, tools, and maintenance. When evaluating a CNC router, it is recommended to evaluate your specific needs, the materials you will be using, and the level of precision required to determine the best and most cost-effective option for your application.
What are the advantages and disadvantages of this 3-axis CNC router?
Advantages of 3-Axis CNC Router
- Versatility: Ability to handle a variety of materials, including wood, metal, plastic and composites.
- Accuracy: Provides high precision and repeatability, ensuring consistent and intricate cuts.
- Easy To Use: User-friendly interface and automated processes make it easy to use for both beginners and experienced operators.
- Automation: Reduce manual labor and increase productivity by automating the cutting process, resulting in faster turnaround times.
- Cost-Effectiveness: 3-axis CNC routers are generally more affordable for general-purpose applications than more complex multi-axis systems.
- Wide Range of Applications: Suitable for a variety of industries, from woodworking and metalworking to prototyping and signage production.
- Automation: Reduce manual labor and increase productivity by automating the cutting process, resulting in faster turnaround times.
- Complex Designs: Ability to create complex and detailed designs that may be challenging or impossible with hand tools.
- Scalability: Suitable for small projects and large production runs, allowing it to adapt to different manufacturing needs.
- Limited Complexity: unable to handle complex 3D contours or perform certain complex machining tasks that require additional axes.
- Tool Changes: Tools may need to be changed manually for different operations, which can disrupt workflow and add time to the machining process.
- Z-Axis Depth Limitation: Due to the Z-axis limitation, the cutting depth is limited, which affects the processing of thicker materials.
- Maintenance And Repairs: As with any machinery, maintenance is required and repairs can be costly, especially if the machine is used heavily.
- Understanding these advantages and disadvantages will help users make informed decisions based on their specific needs and project requirements.
3-axis CNC router VS 4-axis CNC router
The primary difference between a 3-axis CNC router and a 4-axis CNC router lies in the number of axes or directions of movement the machine can control. Here’s a brief comparison:
3-Axis CNC Router
- Movement: Operates in three axes, X, Y, and Z. X and Y control horizontal and vertical movements, while Z controls the depth or spindle movement.
- Applications: Well-suited for 2D and simpler 3D machining tasks. Ideal for flat or contoured surfaces.
- Advantages:
- Simplicity and ease of use.
- Cost-effective for basic machining needs.
- Versatile for a wide range of materials and applications.
- Disadvantages:
- Limited in handling highly complex 3D designs.
- May require repositioning of the workpiece for certain tasks.
- Additional Axis: In addition to X, Y, and Z, a 4-axis CNC router has a rotational axis (usually A or B), allowing the spindle or workpiece to rotate.
- Applications: Enables more complex 3D machining by rotating the workpiece or tool. Ideal for sculpting, engraving, and other intricate tasks.
- Advantages:
- Enhanced capabilities for intricate 3D designs.
- Reduced need for repositioning, improving efficiency.
- Suitable for tasks requiring cylindrical or contoured cuts.
- Disadvantages:
- Generally higher in cost compared to 3-axis CNC routers.
- Requires additional programming and setup expertise.
