Small Stone 7090 CNC Router For Sale

The 7090 stone CNC router provides precise and efficient stone processing capabilities, making it an essential tool in industries such as architecture, construction, and art.

AKS7090 CNC Router

$5,350.00

Model: AKS7090
Barnd: AccTek CNC
Spindle: Water Cooled Spindle
Drive Mode: Stepper Motor
Control System: Mach3
Table of Contents

Product Description

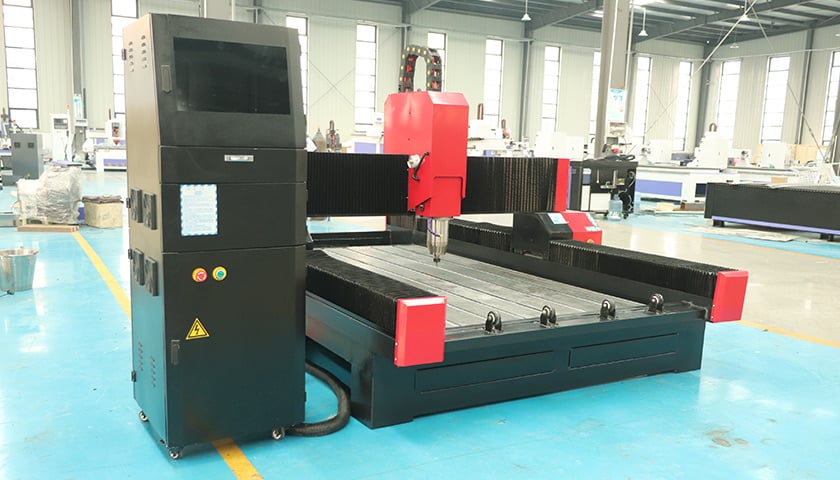

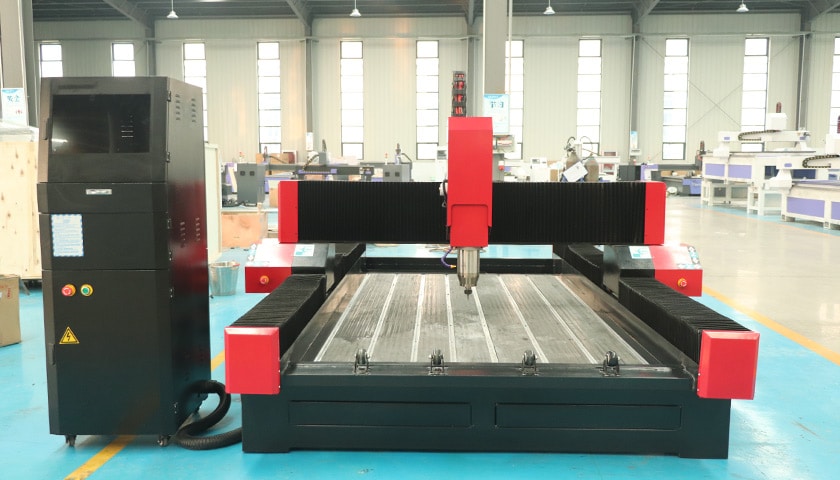

The 7090 stone CNC router is a versatile and powerful machine designed for cutting and engraving various types of stone. The machine provides precise and efficient stone processing capabilities, making it an essential tool in industries such as construction, construction, and art. The main features of the 7090 stone CNC router include its sturdy construction, which ensures stability and durability during operation. It is equipped with a high-quality spindle that can handle a variety of stone materials, from granite and marble to limestone and slate. The machine’s cutting and engraving accuracy is exceptional, allowing complex designs and detailed processing on stone surfaces. The 7090 stone CNC router is user-friendly, with intuitive software and controls that make it easy for both experienced professionals and beginners to use. Its high-speed performance and automated features increase productivity, making it ideal for businesses looking to streamline their stone processing operations.

Product Configuration

HQD Water Cooled Spindle

Heavy Structural Body

Featuring a heavy-duty structural body, the machine delivers superior performance and durability to meet and exceed the most demanding industrial requirements. The machine body is manufactured from the highest quality materials, ensuring absolute stability during high-speed and complex machining processes, translating this into impeccable precision and consistent results. Achieve unparalleled precision and flawless cuts even when working with the most challenging materials.

Water-Cooled Spindle

The machine is equipped with a water-cooled spindle to maintain optimal temperature levels during long periods of operation. This precise temperature control prevents overheating, ensuring the spindle operates at peak performance and extends service life. The water cooling system dissipates heat efficiently without producing excessive noise or vibration, creating a quieter and more comfortable working environment. Water-cooled spindles are capable of continuous operation without overheating, so you can significantly reduce downtime, resulting in greater productivity and efficiency.
HQD Water Cooled Spindle
Hiwin Guide Rail

Taiwan Hiwin Guide Rail

This machine uses Taiwan Hiwin guide rails, which provide unparalleled stability, ensuring your machine’s motion is rock solid, eliminating vibration, and guaranteeing the accuracy you need. The Hiwin guide rails are durable and focus not only on accuracy but also on durability. It’s built to withstand the rigors of continuous operation, delivering the longevity and reliability professionals rely on.

Mach3 Control System

The machine is equipped with the Mach3 control system, which features a user-friendly operating interface that allows you to easily create complex designs, smooth curves, and sharp edges, allowing you to achieve high-quality results that match your vision. Advanced algorithms allow you to control your CNC router with extreme precision, guaranteeing outstanding results no matter how complex your design is.
Mach3 Control System
High-Precision Stepper Motor

High-Precision Stepper Motor

Equipped with highly reliable and precise stepper motors, the machine offers a range of advantages to meet the needs of various applications. Rugged construction and meticulous engineering ensure long-lasting performance, reducing downtime and maintenance costs. The motor’s ability to provide fine control of movement translates into precise cuts and detailed engravings, giving you the confidence to create exceptional work.

Fuling Inverter

This machine uses a Fuling inverter, which converts energy to power spindles, motors, and other important components, ensuring your machine runs at peak performance. Fuling inverter converters ensure the precision you need, allowing you to fine-tune the performance of your CNC router with high precision. It can withstand harsh working environments and provide you with continuous and reliable power.
Fuling Inverter
High-Performance Leadshine Driver

High-Performance Leadshine Driver

The machine is equipped with high-performance Leadshine drives, a key component ensuring precision, speed, and reliability for all CNC router tasks. Known for its precision and reliability, the drive provides excellent control of the machine’s movement. Whether you require high-speed cabling or intricate detailing, this driver configuration ensures your project is completed with precision and efficiency.

Tool Sensor

The machine is equipped with advanced tool sensors designed to improve CNC project accuracy and efficiency. This unit streamlines your machining process by accurately detecting and measuring tool lengths, ensuring that every tool change is performed with impeccable accuracy. It reduces the risk of errors and ensures your CNC projects meet the highest standards of accuracy.
Tool Sensor

Product Features

  • The machine is equipped with high-precision components such as ball screws and linear guides to ensure the accuracy and repeatability of stone cutting and engraving.
  • The sturdy frame and gantry construction provide stability and support, allowing it to handle heavy stones with minimal vibration for consistent results.
  • Equipped with a high-performance spindle, the machine is capable of handling various types of stone, including marble, granite, and quartz, delivering consistent cutting and engraving results.
  • The CNC control system features an intuitive and user-friendly interface that allows operators to easily program and control the machine.
  • The machine is compatible with a variety of CAD/CAM software and can be seamlessly integrated into existing design and production workflows.
  • Its automated operation and ability to handle large and heavy slabs increases productivity and reduces labor costs and material waste.

Technical Parameters

Model AKS7090 AKS9015 AKS1325
Working Area 700*900*300mm 900*1500*300mm 1300*2500*300mm
Frame Steel gantry, fully industrial-grade welding technology
Spindle Motor HQD 5.5kw water cooling spindle
Rotating Speed of Spindle Air cooling spindle: 0~18000 rpm; Water cooling spindle: 0~24000 rpm
Control System Mach3 controller
Working Mode Leadshine driver M860 and stepper motor 450B
Motion Positioning Accuracy ±0.01/300mm
Repositioning Accuracy ±0.03mm
Max Motion Speed 15000 mm/min
Max Engraving Speed 8000 mm/min
Inverter Fuling
Drive Mechanism The X and Y axes are driven by guide rails and racks, and the Y axis is driven by a Taiwan TBI ball screw
Guide Rail Taiwan Hiwin linear square guide rail
Table Surface T-slot with the water tank
Lubrication System Auto oil lubrication system
Z-Axis Setting Z origin tool sensor

Product Applications

The 7090 stone CNC router is a versatile and powerful tool with a wide range of applications in the stone processing industry. Some of its primary product applications include:
  • Monuments and Memorials: The CNC router is commonly used to create intricate and customized designs on tombstones, monuments, and memorials, allowing for detailed engraving and personalization.
  • Countertops and Vanity Tops: It can precisely cut and shape stone slabs to create countertops and vanity tops with intricate edge profiles and designs, enhancing the aesthetics of kitchens and bathrooms.
  • Architectural Elements: The machine is used for producing decorative architectural elements like columns, balusters, cornices, and facades, adding a touch of elegance to building exteriors and interiors.
  • Flooring and Wall Cladding: The CNC router can create unique patterns and textures on stone tiles for flooring and wall cladding, enhancing the visual appeal of homes and commercial spaces.
  • Sculptures and Artwork: Artists and sculptors utilize the machine to carve detailed sculptures, statues, and artwork from various stone materials.
The 7090 stone CNC router’s adaptability and precision make it an indispensable tool for professionals in the stone industry, enabling them to create high-quality, custom, and intricate stone products for various applications.

Why Choose AccTek CNC?

Enjoy a 1 to 3-year warranty for the entire machine. If any problems occur during the warranty period, major parts (excluding consumables) will be replaced free of charge.
If you need installation or adjustments, we can dispatch technicians to provide you with hands-on assistance to ensure your CNC router is optimally set up.

We offer free lifetime maintenance to ensure your machine remains running at its best for years to come.

Lifetime online technical support is available, and expert help is just a message or call away, ensuring you’re never left stranded if something goes wrong.
Our CNC routers are designed and manufactured by experts who understand the ins and outs of CNC machining, ensuring the highest quality performance.
Our CNC routers offer customization and accessory options, so no matter what your project is, we can provide a solution to meet your unique needs.
