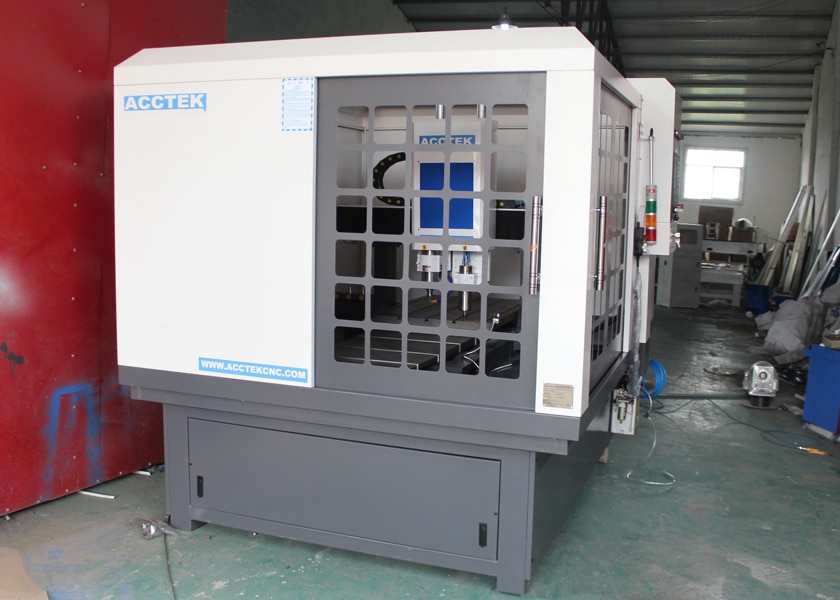

Economic 6060 Metal CNC Router

The AK6060 CNC router is a high-precision machine designed for metal engraving. With advanced motion control and durable construction, it delivers detailed and accurate results for intricate metalwork.
AK6060 CNC Router
(4 customer reviews)

$3,600.00

Model: AK6060
Barnd: AccTek CNC
Spindle: HQD
Drive Mode: Stepper Motor
Control System: Mach3
Table of Contents

Product Description

The AK6060 CNC router is a robust and highly precise machine designed specifically for metal engraving applications. Built with a heavy structural body, it ensures exceptional stability and minimal vibration, even during demanding tasks. The CNC router is equipped with a high-performance water-cooled spindle, which ensures optimal heat dissipation and extends the lifespan of the spindle during prolonged engraving operations.
The AK6060 CNC router features Taiwan Hiwin guide rails, providing smooth and precise movement of the cutting head for intricate engraving tasks on metals such as aluminum, brass, copper, and steel. The CNC router is powered by high-precision stepper motors, ensuring accurate and repeatable motion, while the Mach3 control system offers user-friendly software compatibility and seamless operation. The system is further enhanced by the Fuling inverter, ensuring consistent power delivery for the spindle, and a Leadshine driver for high-efficiency motor control.
Additionally, the tool sensor integrated into the AK6060 CNC router ensures accurate tool height detection for consistent engraving depth, making it ideal for applications that require high precision and fine detail. Whether you are working on industrial parts, signage, or custom metal engravings, the AK6060 CNC router delivers reliable performance and exceptional engraving quality.

Product Configuration

Heavy Structural Body

Steel Structure Body

The machine is equipped with a sturdy and durable steel structure body that ensures unparalleled stability, eliminates vibration, and ensures superior cutting and engraving accuracy. The rigidity of the steel structure body minimizes deformation during machining, translating into precise carvings even when working with challenging materials.

HQD Water-Cooled Spindle

The machine is equipped with an HQD water-cooled spindle, which provides excellent precision and consistent results. The water cooling system provides excellent cooling capacity, ensuring effective heat dissipation during long machining operations, preventing the spindle from overheating and allowing extended use without affecting performance. This spindle offers variable speed control, allowing you to adjust the RPM of the spindle to suit different materials and engraving requirements.
HQD Water Cooled Spindle
Screw Transmission Device

Taiwan TBI Ball Screw Transmission Device

The machine is equipped with Taiwan TBI ball screw transmission, which provides minimal clearance and excellent repeatability. This ball screw is designed to convert rotary motion into linear motion with superior efficiency, not only saving energy but also ensuring your CNC machine runs smoothly and reliably. TBI ball screw drives feature a ball-bearing design that significantly reduces friction and wear, helping to extend service life.

Taiwan Hiwin Guide Rail

This machine uses Taiwan Hiwin guide rails, which provide unparalleled stability, ensuring your machine’s motion is rock solid, eliminating vibration, and guaranteeing the accuracy you need. The Hiwin guide rails are durable and focus not only on accuracy but also on durability. It’s built to withstand the rigors of continuous operation, delivering the longevity and reliability professionals rely on.
Hiwin Guide Rail
Vacuum Worktable With Double-Stage Air Pump

Cast Iron T-Slot Worktable

The machine features a sturdy cast iron T-slot worktable, providing a rock-solid foundation for your machining projects. The T-slot design provides versatility for holding workpieces, jigs, and fixtures, allowing for quick and safe installation. The inherent rigidity of cast iron prevents deflection during machining, allowing you to achieve the high precision required for intricate detail, fine engraving, and consistent top-quality results.

Mach3 Control System

The machine is equipped with the Mach3 control system, which features a user-friendly operating interface that allows you to easily create complex designs, smooth curves, and sharp edges, allowing you to achieve high-quality results that match your vision. Advanced algorithms allow you to control your CNC router with extreme precision, guaranteeing outstanding results no matter how complex your design is.
Mach3 Control System
High-Precision Stepper Motor

High-Precision Stepper Motor

Equipped with highly reliable and precise stepper motors, the machine offers a range of advantages to meet the needs of various applications. Rugged construction and meticulous engineering ensure long-lasting performance, reducing downtime and maintenance costs. The motor’s ability to provide fine control of movement translates into precise cuts and detailed engravings, giving you the confidence to create exceptional work.

Fuling Inverter

This machine uses a Fuling inverter, which converts energy to power spindles, motors, and other important components, ensuring your machine runs at peak performance. Fuling inverter converters ensure the precision you need, allowing you to fine-tune the performance of your CNC router with high precision. It can withstand harsh working environments and provide you with continuous and reliable power.
Fuling Inverter

Product Features

  • Heavy Structural Body: The machine is constructed with a heavy-duty structural body, ensuring superior stability and vibration dampening. This design minimizes movement during high-speed operations, providing precise results even on demanding metal engraving tasks.
  • Water-Cooled Spindle: Equipped with a high-performance water-cooled spindle, the machine ensures efficient heat dissipation, preventing overheating during extended engraving sessions. This extends the spindle’s lifespan and ensures consistent, high-quality engraving.
  • Taiwan Hiwin Guide Rail: For unparalleled precision, the router utilizes Taiwan Hiwin guide rails. These rails offer smooth and accurate linear motion, enhancing the machine’s overall performance and ensuring precise engraving on metal surfaces.
  • Mach3 Control System: The machine features the Mach3 control system, a user-friendly interface that allows easy programming and operation. The system is highly compatible with various design software, making it ideal for seamless integration into existing workflows.
  • High-Precision Stepper Motors: With high-precision stepper motors, the machine guarantees smooth and accurate movement of the router head. This results in sharp, detailed engravings and ensures repeatability across multiple jobs.
  • Fuling Inverter for Stable Power Supply: The Fuling inverter maintains a stable power supply to the spindle motor, ensuring consistent speed and torque, even during demanding engraving operations. This contributes to smoother performance and higher precision.
  • High-Performance Leadshine Driver: The machine is equipped with a Leadshine driver that enhances motor control and provides high efficiency, ensuring fast response times and minimal lag, contributing to smoother cutting and engraving performance.
  • Tool Sensor: The integrated tool sensor ensures accurate tool height detection, preventing errors in engraving depth. This feature ensures consistent and high-quality results, especially for projects that require tight tolerances.

Technical Parameters

Model AK4040 AK6060
X, Y, Z Working Area 400x400x150mm 600x600x150mm
Worktable Size 400x400mm 600x600mm
Traveling Positioning Accuracy ±0.03mm
Repositioning Accuracy ±0.03mm
Worktable Surface T-Slot Extrusions
Worktable Frame Whole Cast Steel
Transmission TBI Ball Screw from Taiwan
Guide Rails Hiwin Rail Linear Guide Rails
Max Power Consumption (Without Spindle) 0.8KW
Max Rapid Travel Rate 6000mm/min
Max Working Speed 4000mm/min
Spindle Power Motor 2.2KW Water-Cooled Spindle
Spindle Speed 0-24000 rpm
Drive Motors Stepper Motors
Operating System Mach3 Controller
Inverter Shanghai Fuling Inverter
Working Voltage 220/380V/50/60Hz

Product Applications

The AK6060 CNC router is a versatile and powerful machine designed specifically for metal engraving and machining. Thanks to its robust construction and advanced features, it is ideal for a wide range of applications, including:
  • Metal Engraving: The AK6060 excels in engraving intricate patterns, logos, and designs on various metal surfaces, including aluminum, brass, copper, and stainless steel. It delivers precise and clean engravings, making it ideal for both industrial and artistic metalworking projects.
  • Custom Tool Engraving: The AK6060 is frequently used in the creation of custom engravings on tools and dies. Its precise control over depth and detailing allows for the engraving of intricate designs on precision tools, jigs, and molds.
  • Prototype and Product Development: The router is an excellent tool for product designers and manufacturers looking to create prototypes, especially in industries such as jewelry, and hardware. It can quickly carve or engrave detailed models from metal to test and refine product designs.
  • Artwork and Decorative Engraving: Artists and craftsmen can use the AK6060 for creating detailed and high-quality engravings on metals for decorative purposes, such as custom metal artwork, sculptures, and personalized gifts.

Why Choose AccTek CNC?

Enjoy a 1 to 3-year warranty for the entire machine. If any problems occur during the warranty period, major parts (excluding consumables) will be replaced free of charge.
If you need installation or adjustments, we can dispatch technicians to provide you with hands-on assistance to ensure your CNC router is optimally set up.

We offer free lifetime maintenance to ensure your machine remains running at its best for years to come.

Lifetime online technical support is available, and expert help is just a message or call away, ensuring you’re never left stranded if something goes wrong.
Our CNC routers are designed and manufactured by experts who understand the ins and outs of CNC machining, ensuring the highest quality performance.
Our CNC routers offer customization and accessory options, so no matter what your project is, we can provide a solution to meet your unique needs.
