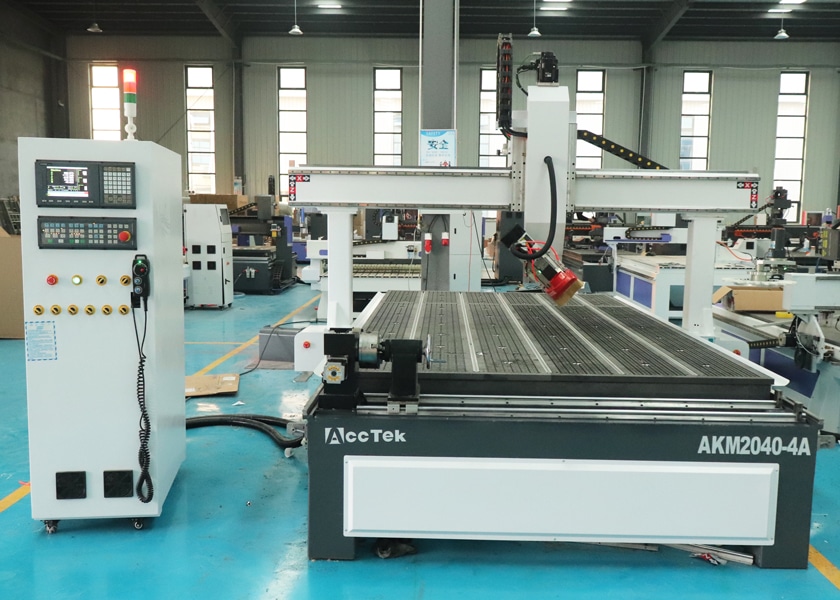

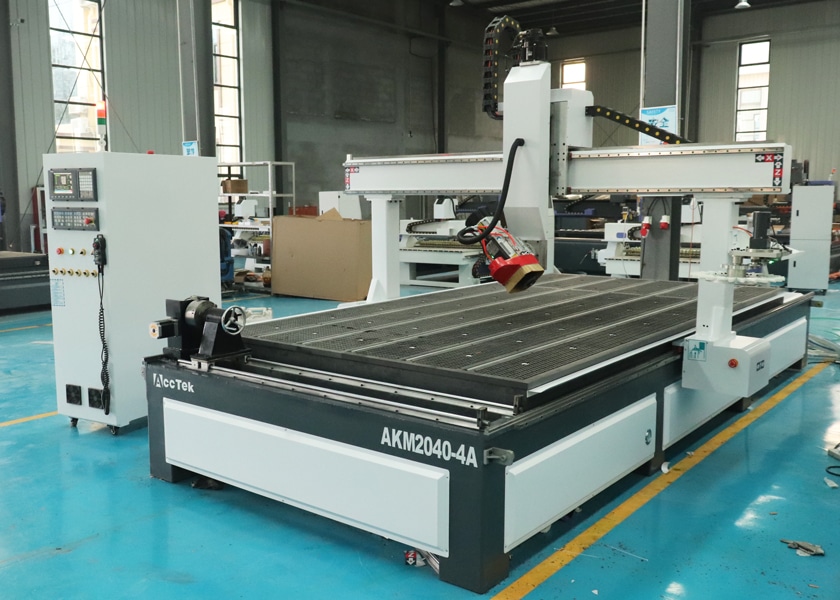

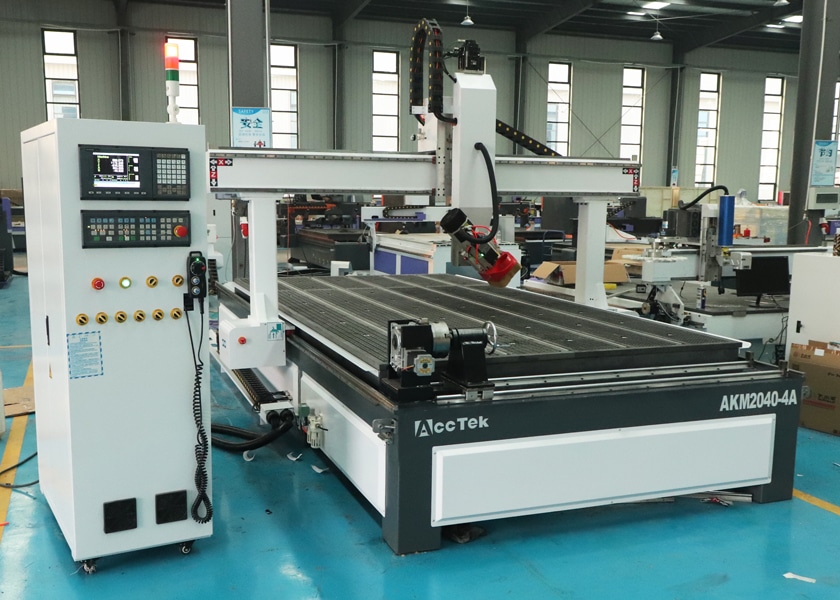

High Power 2040 CNC Router With Automatic Tool Changer Spindle

The 4-axis 2040 ATC CNC router is a versatile and highly automated machine that excels in precision machining of a variety of materials and industries.

AKM2040C-4A CNC Router

(4 customer reviews)

$20,050.00

Model: AKM2040C-4A
Barnd: AccTek CNC
Spindle: HQD
Drive Mode: Yaskawa Servo Motor and Driver
Control System: Syntec 60W-E
Table of Contents

Product Description

The 4-axis 2040 ATC CNC router represents a high-precision and versatile machining solution. This advanced CNC router operates on four axes (X, Y, Z, and an A-axis capable of ±180° rotation), enabling complex 3D machining and routing. It has a workbench size of 2000*4000mm (approximately 6.6 feet x 13.1 feet), which can accommodate larger workpieces or multiple smaller components at the same time. The ATC feature allows automatic tool changes during operation, reducing downtime and increasing productivity by accommodating multiple tool types in one job. The 4-axis 2040 ATC CNC router is a versatile and highly automated machine that excels in precision machining of a variety of materials and industries. Its large work area, automated features such as the ATC system, and the ability to handle a variety of materials make it a valuable asset in manufacturing and design applications.

Product Configuration

HSD Air-Cooled ATC Spindle

HQD Air-Cooled ATC Spindle

The machine uses a 9.0KW HQD air-cooled ATC spindle, which can provide excellent power to the CNC router to easily process a variety of materials. The ATC function enables your CNC router to quickly adapt to different project needs. The innovative air-cooling design ensures efficient heat dissipation to keep the spindle in optimal condition, eliminating the need for complex water-cooling systems.

Yaskawa Servo Motor

The machine uses Yaskawa servo motors, which can work seamlessly with Yaskawa motion controllers and drives to precisely control speed, position, and torque, resulting in excellent precision and accuracy. The motor offers fast response times and is able to quickly adapt to changes in position and speed, allowing it to handle dynamic and demanding tasks.
Yaskawa Servo Motor
Disc Tool Changer

Disc Automatic Tool Changer

The machine is equipped with a disc automatic tool changer that can accommodate 10 types of cutting and engraving tools to ensure the accuracy and efficiency of the processing process. It quickly switches tools by rotating a tool holder carousel, minimizing downtime and maximizing productivity. Disc automatic tool changers offer versatility and precision for applications in woodworking, metalworking, and more.

Japan Shimpo and Nabtesco Reducer

The machine is equipped with Japanese Shimpo and Nabtesco reducers (Shimpo reducers are used for the X and Y axis, and Nabtesco reducers are used for the A axis), which can provide efficient power transmission, reduce speed and increase torque in the mechanical system. These reducers are designed to minimize backlash and ensure smooth, precise movement. They are also able to withstand harsh industrial environments and provide long-lasting performance, reducing maintenance and replacement costs.
Japanese Shimpo Reducer
Syntec 60W-E Control System

Syntec 60W-E Control System

This machine adopts a Syntec 60W-E control system, which can realize advanced functions such as tool path optimization and multi-axis control, allowing you to fully utilize the potential of a CNC router. Syntec 60W-E offers an intuitive, user-friendly interface that simplifies CNC operations, shortens the learning curve, and increases productivity. Excellent precision is achieved with this control system, ensuring that your machining processes are executed with precision.

Taiwan Hiwin Guide Rail

This machine uses Taiwan Hiwin guide rails, which provide unparalleled stability, ensuring your machine’s motion is rock solid, eliminating vibration, and guaranteeing the accuracy you need. The Hiwin guide rails are durable and focus not only on accuracy but also on durability. It’s built to withstand the rigors of continuous operation, delivering the longevity and reliability professionals rely on.
Hiwin Guide Rail
Vacuum Worktable With Double-Stage Air Pump

Vacuum Worktable With Double-Stage Air Pump

The machine is equipped with a vacuum worktable that ensures the workpiece remains firmly in place throughout the CNC routing process. The powerful vacuum system grabs your material reliably and evenly, preventing unwanted movement and ensuring precise, error-free results. In addition to improving accuracy, vacuum worktables ensure a safe and clean workspace. The pump requires minimal maintenance, saving you valuable time and reducing operating costs, ensuring your CNC router operates at its best for a long time.

Double Bag Dust Collector

The machine features a dual-bag dust collector designed to effectively eliminate dust and debris generated during CNC operations. Equipped with dual collection bags, it ensures complete removal of waste, keeping your workspace clean and your machine running optimally. It’s more than just an accessory, it’s your commitment to cleanliness, air quality, and a more efficient workspace.
Double Bag Dust Collector

Table Design Selection

Sunken Worktable

Sunken Worktable

The sunken worktable accommodates higher workpiece heights and provides flexibility for integrated rotary axes, taking your process capabilities to new heights. Additionally, a sunken worktable goes beyond the limitations of a traditional tabletop worktable by providing a solid foundation for your workpiece.

Desktop Worktable

Desktop Worktable

Benchtop worktable is all about flexibility. If you need flexibility and unrestricted handling of a variety of CNC projects, this design is the best choice for you, allowing you to load and unload materials easily and freely. It gives you adaptability and efficiency no matter what project you're working on.

Product Features

  • The machine is exceptional precision makes it ideal for complex and detailed machining of a variety of materials.
  • The machine is compatible with a wide range of materials and is suitable for a variety of applications in woodworking, plastic manufacturing, and other industries.
  • The machine comes with user-friendly software for programming and controlling the CNC router, making it accessible to operators with varying levels of expertise.
  • The machine is equipped with a dust collection system to maintain a clean workspace and mitigate potential health and safety risks associated with processing dust.
  • The machine is equipped with a powerful high-speed spindle for efficient cutting and engraving, ensuring fast material removal.
  • The machine offers customization options that allow the equipment to be tailored to specific industry needs, and automation features can be integrated to optimize operational efficiency.
  • The machine is built with high-quality components and materials to meet the demands of continuous operation in industrial environments.

Technical Parameters

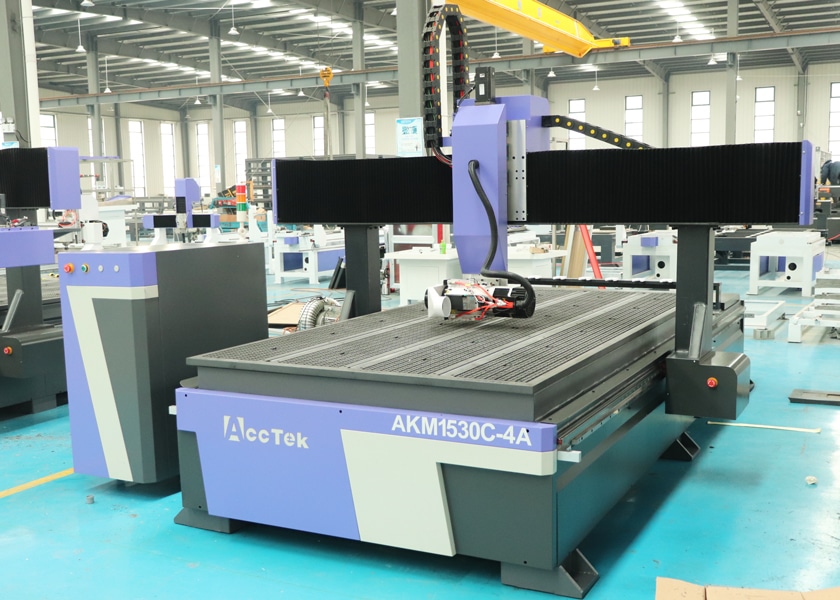

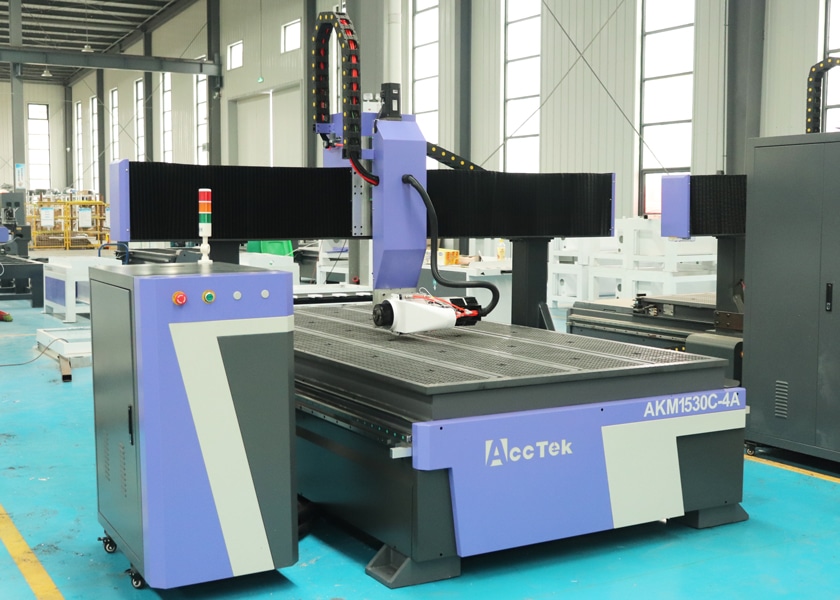

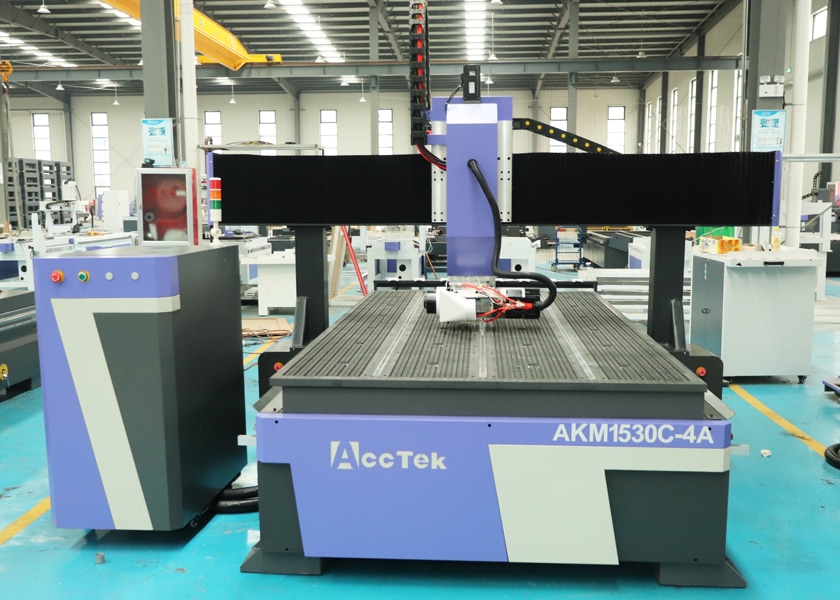

Model AKM1325C-4A AKM1530C-4A AKM2030C-4A AKM2040C-4A
Working Area 1300x2500x500mm 1500×3000×600mm 2000×3000×600mm 2000×4000×600mm
Spindle Type Air cooling spindle
Spindle Power 9.0 KW
Worktable Type T-slot and vacuum worktable
Spindle Rotating Speed 0-18000 rpm
Locating Precision <0.01mm
Working Precision ±0.03mm
Min Shaping Character Charater: 3x3mm, letter: 2x2mm
Drive Motors Yaskawa servo motor
Operation System Syntec 60W-E control system
Power Supply 220±10, 50HZ(AC380v)
Working Temperature 5℃-40℃
Working Humidity 30%-75% (without condensed water)

Product Applications

The 4-axis 2040 ATC CNC router finds a wide array of applications across industries. It is utilized for precision tasks such as:
  • Woodworking: Crafting intricate furniture, cabinets, and artistic woodwork.
  • Plastic fabrication: Shaping and machining plastic components for various industries.
  • Foam cutting: Creating molds for various applications, architectural models, and packaging materials.
  • Composite material machining: Manufacturing aerospace and automotive composite components.
  • 3D carvings: Sculptures, art pieces, and architectural ornamentation.
  • Pattern making: Crafting patterns for casting, textiles, and foundry work.
With its precision, large work area, and automation capabilities, it is indispensable for various manufacturing and design sectors.

Why Choose AccTek CNC?

Enjoy a 1 to 3-year warranty for the entire machine. If any problems occur during the warranty period, major parts (excluding consumables) will be replaced free of charge.
If you need installation or adjustments, we can dispatch technicians to provide you with hands-on assistance to ensure your CNC router is optimally set up.

We offer free lifetime maintenance to ensure your machine remains running at its best for years to come.

Lifetime online technical support is available, and expert help is just a message or call away, ensuring you’re never left stranded if something goes wrong.
Our CNC routers are designed and manufactured by experts who understand the ins and outs of CNC machining, ensuring the highest quality performance.
Our CNC routers offer customization and accessory options, so no matter what your project is, we can provide a solution to meet your unique needs.
