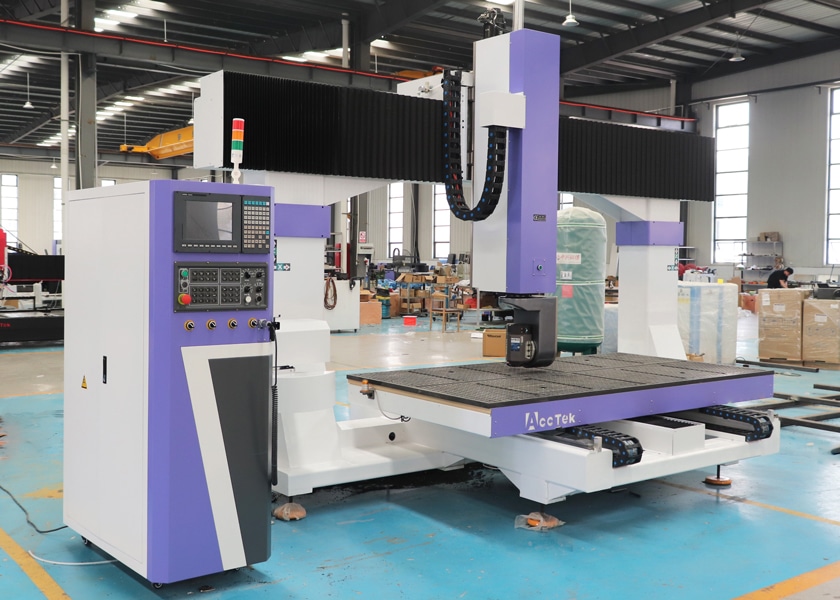

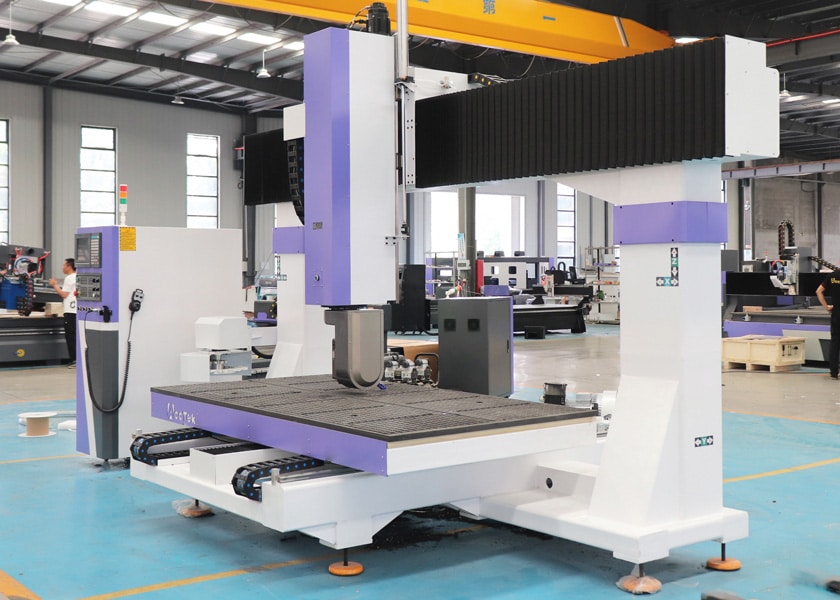

Industrial 1530 5-Axis CNC Router For 3D Milling

The 5-axis 1530 ATC CNC router is capable of moving cutting tools in 5 directions simultaneously, enabling the creation of 3D designs with high precision.

AKM1530-5A CNC Router

(4 customer reviews)

$73,000.00

Model: AKM1530-5A
Barnd: AccTek CNC
Spindle: Hiteco
Drive Mode: Yaskawa Servo Motor and Driver
Control System: Syntec 610MA-E5
Table of Contents

Product Description

The 5-axis 1530 ATC CNC mill is an advanced, versatile machine designed to meet the precision machining and complex engraving needs of a variety of industries. It combines the power of 5-axis synchronized motion with the efficiency of an automatic tool changer (ATC), making it the first choice for manufacturers and craftsmen in a variety of fields including aerospace, automotive, woodworking, and more.
The machine’s ability to move cutting tools simultaneously in five directions enables the creation of complex three-dimensional shapes and intricate contours with high precision. It has a 1500*3000mm workbench, providing a spacious working range suitable for large workpieces and multi-functional settings, thereby increasing productivity and flexibility. The automatic tool changer (ATC) is an outstanding feature of this CNC router. It automatically changes tools during machining operations, eliminating the need for manual tool changes, significantly reducing downtime, and increasing efficiency.

Product Configuration

Italian Hiteco 5-Axis Water-Cooled Spindle

Italian Hiteco 5-Axis Water-Cooled Spindle

The machine uses a Hiteco 5-axis water-cooled spindle. It is designed for 5-axis CNC machines and uses a water cooling system to maintain ideal operating temperatures. This precision spindle ensures consistently high performance, making it suitable for use in industries requiring complex, multi-directional machining. Water cooling enhances heat dissipation and extends spindle life, resulting in better-cut quality and increased efficiency.

Taiwan Syntec 610MA-E5 System

The machine is equipped with Taiwan’s Syntec 610MA-E5 system, which provides advanced features for precision machining, automation, and flexibility. It can be a CNC router capable of precisely controlling multi-axis motion, spindle speed, and tool changes. The Syntec 610MA-E5 system features a user-friendly interface, powerful processing capabilities, and good compatibility with a variety of machine types.
Taiwan Syntec 610MA-E5 System
Vacuum Worktable With Double-Stage Air Pump

Vacuum Worktable With Double-Stage Air Pump

The machine is equipped with a vacuum worktable that ensures the workpiece remains firmly in place throughout the CNC routing process. The powerful vacuum system grabs your material reliably and evenly, preventing unwanted movement and ensuring precise, error-free results. In addition to improving accuracy, vacuum worktables ensure a safe and clean workspace. The pump requires minimal maintenance, saving you valuable time and reducing operating costs, ensuring your CNC router operates at its best for a long time.

Yaskawa Servo Motor

The machine uses Yaskawa servo motors, which can work seamlessly with Yaskawa motion controllers and drives to precisely control speed, position, and torque, resulting in excellent precision and accuracy. The motor offers fast response times and is able to quickly adapt to changes in position and speed, allowing it to handle dynamic and demanding tasks.
Yaskawa Servo Motor
Hiwin Guide Rail

Taiwan Hiwin Guide Rail

This machine uses Taiwan Hiwin guide rails, which provide unparalleled stability, ensuring your machine’s motion is rock solid, eliminating vibration, and guaranteeing the accuracy you need. The Hiwin guide rails are durable and focus not only on accuracy but also on durability. It’s built to withstand the rigors of continuous operation, delivering the longevity and reliability professionals rely on.

Japanese SMC Pneumatic Element

The machine uses a Japanese SMC pneumatic element to ensure precise control of clamping, tool changing, and workpiece positioning, helping to achieve high machining accuracy. Its sturdy construction and long service life reduce maintenance downtime and increase the overall efficiency of the machine. Additionally, it provides efficient air management, ensuring fast and reliable tool changes.
Japanese SMC Pneumatic Element
Double Bag Dust Collector

Double Bag Dust Collector

The machine features a dual-bag dust collector designed to effectively eliminate dust and debris generated during CNC operations. Equipped with dual collection bags, it ensures complete removal of waste, keeping your workspace clean and your machine running optimally. It’s more than just an accessory, it’s your commitment to cleanliness, air quality, and a more efficient workspace.

Automatic Oil Lubrication System

The machine is equipped with an automatic oil lubrication system that ensures consistent and precise lubrication of critical machine components, reducing wear and friction. Automatic oil lubrication systems eliminate the need for manual lubrication, saving time and reducing the risk of human error. It also provides optimal oil distribution, preventing over or under-lubrication.
Automatic Oil Lubrication System

Table Design Selection

Sunken Worktable

Sunken Worktable

The sunken worktable accommodates higher workpiece heights and provides flexibility for integrated rotary axes, taking your process capabilities to new heights. Additionally, a sunken worktable goes beyond the limitations of a traditional tabletop worktable by providing a solid foundation for your workpiece.

Desktop Worktable

Desktop Worktable

Benchtop worktable is all about flexibility. If you need flexibility and unrestricted handling of a variety of CNC projects, this design is the best choice for you, allowing you to load and unload materials easily and freely. It gives you adaptability and efficiency no matter what project you're working on.

Product Features

  • Advanced 5-axis simultaneous machining capabilities enable complex 3D machining, which is ideal for complex geometries and organic shapes.
  • Equipped with an intelligent tool management system, it can simplify the tool replacement process, reduce production downtime, and optimize operational efficiency.
  • Featuring a generous 1500x3000mm workspace, it accommodates large workpieces and provides flexibility for a variety of project sizes and setups.
  • Advanced motion control technology ensures superior precision and accuracy in every machining operation, resulting in high-quality finished products.
  • Suitable for a variety of materials including wood, plastics, and composites, making it suitable for a variety of industrial applications.
  • Features an intuitive software interface that simplifies programming and operation, allowing operators to effectively control the CNC router.
  • Equipped with an efficient dust and chip removal system to maintain a clean and safe working environment.
  • A variety of spindle options are available, allowing users to select the appropriate spindle power and speed based on specific application requirements.

Technical Parameters

Model AKM1212-5A AKM1224-5A AKM1325-5A AKM1530-5A
Working Area 1200x1200x600mm 1200×2400×600mm 1300×2500×600mm 1500×3000×600mm
C Axis (Rotary Axis) ±360°
B Axis (Swing Axis) ±110°
Framework Cast steel structure
Spindle Italian Hiteco 10kw 5-axis spindle with industry water chiller
Rotating Speed 6000-24000 rpm/min
Tool Magazine Disc-type ATC (with 8 tools) or Linear-type ATC (with 8 tools)
Drive Motors Yaskawa servo motor
Guide Rail Hiwin 30mm linear guide rail
X, Y, Z Axis Transmission X, Y axis rack and pinion rack, Z axis Taiwan TBI ball screw
Repositioning Accuracy ±0.03mm
Control System Taiwan syntec 610MA-E5 system

Product Applications

The 5-axis 1530 ATC CNC router is a versatile, high-performance machining tool suitable for a variety of industries. Its ability to perform simultaneous 5-axis machining and automatic tool changes makes it indispensable in applications such as aerospace for complex parts and molds. In the automotive industry, it is extremely valuable for creating complex prototypes and specialized parts. Additionally, woodworkers benefit from its precision in crafting fine furniture and woodworking projects. This CNC router is suitable for a wide range of materials, making it an important asset for industries that require complex, 3D machining and high-precision detailing.

Why Choose AccTek CNC?

Enjoy a 1 to 3-year warranty for the entire machine. If any problems occur during the warranty period, major parts (excluding consumables) will be replaced free of charge.
If you need installation or adjustments, we can dispatch technicians to provide you with hands-on assistance to ensure your CNC router is optimally set up.

We offer free lifetime maintenance to ensure your machine remains running at its best for years to come.

Lifetime online technical support is available, and expert help is just a message or call away, ensuring you’re never left stranded if something goes wrong.
Our CNC routers are designed and manufactured by experts who understand the ins and outs of CNC machining, ensuring the highest quality performance.
Our CNC routers offer customization and accessory options, so no matter what your project is, we can provide a solution to meet your unique needs.
