Best 1325 5-Axis ATC CNC Router for Wood & Foam Carving

The 5-axis 1325 ATC CNC router is an advanced multi-function CNC router that combines the power of a 5-axis system with the efficiency of an automatic tool changer (ATC).

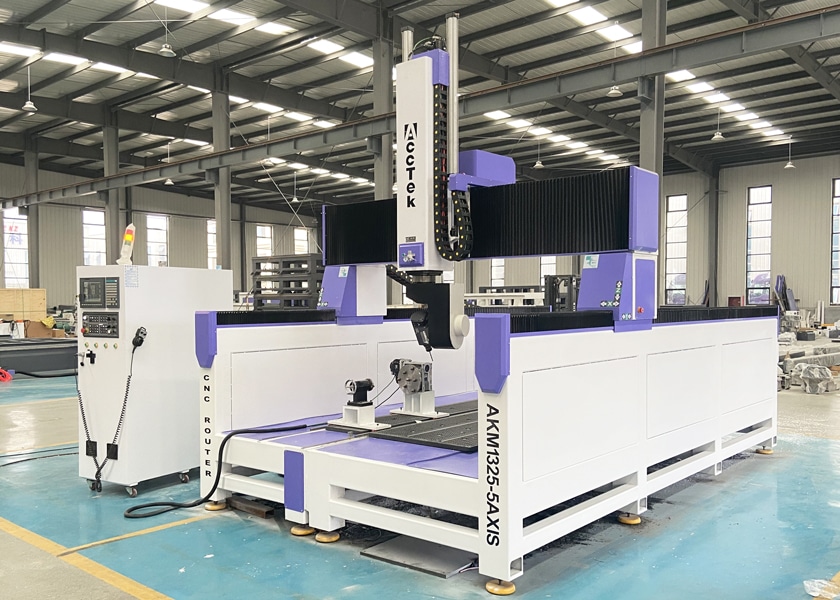

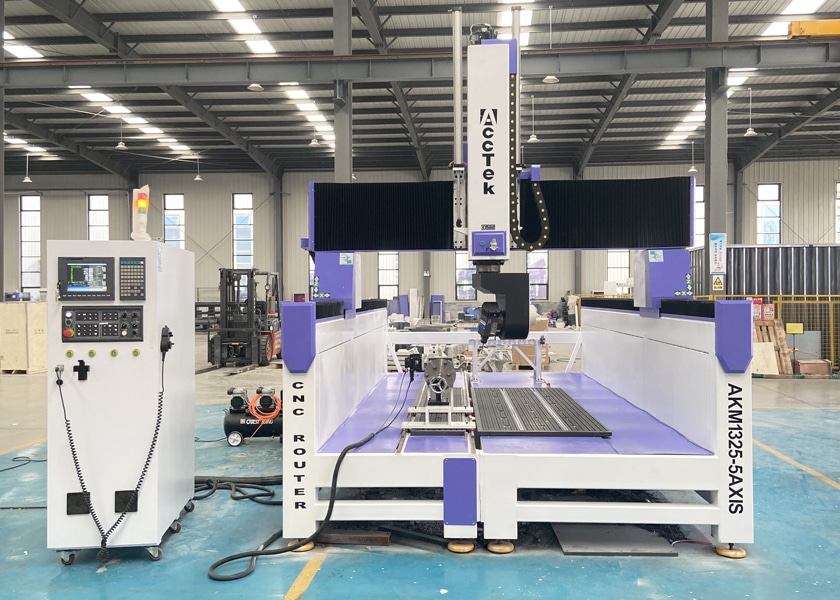

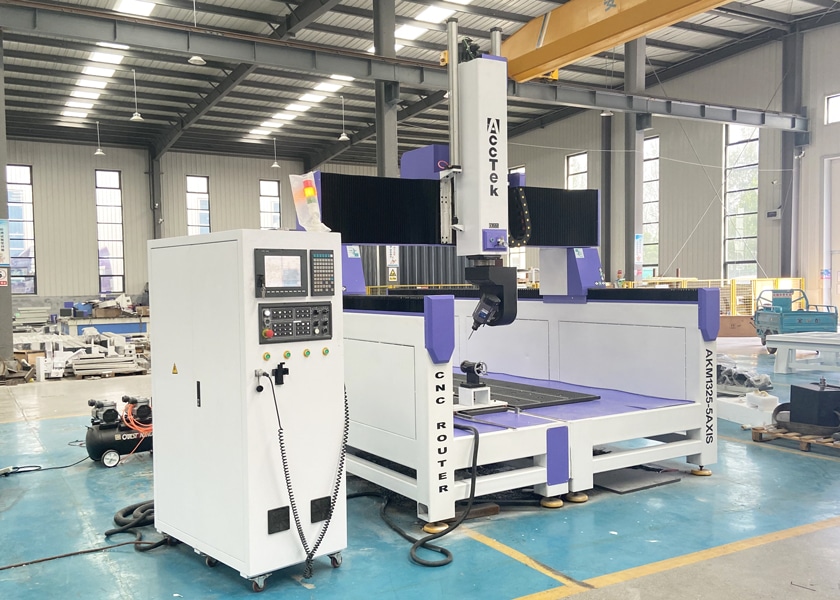

AKM1325-5A CNC Router

(4 customer reviews)

$64,500.00

Model: AKM1325-5A
Barnd: AccTek CNC
Spindle: Hiteco
Drive Mode: Yaskawa Servo Motor and Driver
Control System: Syntec 610MA-E5
Table of Contents

Product Description

The 5-axis 1325 ATC CNC router is an advanced multi-function CNC router that combines the power of a 5-axis system with the efficiency of an automatic tool changer (ATC). The machine’s ability to move the cutting tool in five simultaneous directions enables the creation of complex three-dimensional shapes and contours with extremely high precision. It has a workbench size of 1300*2500mm, which can accommodate large workpieces and multiple settings, thereby increasing productivity and versatility. The automatic tool changer (ATC) is an excellent feature that enables seamless and fast tool changes during machining operations without the need for manual intervention. This feature significantly reduces downtime, making the 5-axis 1325 ATC CNC router an efficient and time-saving choice for manufacturers, craftsmen, and businesses.

Product Configuration

Italian Hiteco 5-Axis Water-Cooled Spindle

Italian Hiteco 5-Axis Water-Cooled Spindle

The machine uses a Hiteco 5-axis water-cooled spindle. It is designed for 5-axis CNC machines and uses a water cooling system to maintain ideal operating temperatures. This precision spindle ensures consistently high performance, making it suitable for use in industries requiring complex, multi-directional machining. Water cooling enhances heat dissipation and extends spindle life, resulting in better-cut quality and increased efficiency.

Taiwan Syntec 610MA-E5 System

The machine is equipped with Taiwan’s Syntec 610MA-E5 system, which provides advanced features for precision machining, automation, and flexibility. It can be a CNC router capable of precisely controlling multi-axis motion, spindle speed, and tool changes. The Syntec 610MA-E5 system features a user-friendly interface, powerful processing capabilities, and good compatibility with a variety of machine types.
Taiwan Syntec 610MA-E5 System
Vacuum Worktable With Double-Stage Air Pump

Vacuum Worktable With Double-Stage Air Pump

The machine is equipped with a vacuum worktable that ensures the workpiece remains firmly in place throughout the CNC routing process. The powerful vacuum system grabs your material reliably and evenly, preventing unwanted movement and ensuring precise, error-free results. In addition to improving accuracy, vacuum worktables ensure a safe and clean workspace. The pump requires minimal maintenance, saving you valuable time and reducing operating costs, ensuring your CNC router operates at its best for a long time.

Yaskawa Servo Motor

The machine uses Yaskawa servo motors, which can work seamlessly with Yaskawa motion controllers and drives to precisely control speed, position, and torque, resulting in excellent precision and accuracy. The motor offers fast response times and is able to quickly adapt to changes in position and speed, allowing it to handle dynamic and demanding tasks.
Yaskawa Servo Motor
Hiwin Guide Rail

Taiwan Hiwin Guide Rail

This machine uses Taiwan Hiwin guide rails, which provide unparalleled stability, ensuring your machine’s motion is rock solid, eliminating vibration, and guaranteeing the accuracy you need. The Hiwin guide rails are durable and focus not only on accuracy but also on durability. It’s built to withstand the rigors of continuous operation, delivering the longevity and reliability professionals rely on.

Japanese SMC Pneumatic Element

The machine uses a Japanese SMC pneumatic element to ensure precise control of clamping, tool changing, and workpiece positioning, helping to achieve high machining accuracy. Its sturdy construction and long service life reduce maintenance downtime and increase the overall efficiency of the machine. Additionally, it provides efficient air management, ensuring fast and reliable tool changes.
Japanese SMC Pneumatic Element
Double Bag Dust Collector

Double Bag Dust Collector

The machine features a dual-bag dust collector designed to effectively eliminate dust and debris generated during CNC operations. Equipped with dual collection bags, it ensures complete removal of waste, keeping your workspace clean and your machine running optimally. It’s more than just an accessory, it’s your commitment to cleanliness, air quality, and a more efficient workspace.

Automatic Oil Lubrication System

The machine is equipped with an automatic oil lubrication system that ensures consistent and precise lubrication of critical machine components, reducing wear and friction. Automatic oil lubrication systems eliminate the need for manual lubrication, saving time and reducing the risk of human error. It also provides optimal oil distribution, preventing over or under-lubrication.
Automatic Oil Lubrication System

Table Design Selection

Sunken Worktable

Sunken Worktable

The sunken worktable accommodates higher workpiece heights and provides flexibility for integrated rotary axes, taking your process capabilities to new heights. Additionally, a sunken worktable goes beyond the limitations of a traditional tabletop worktable by providing a solid foundation for your workpiece.

Desktop Worktable

Desktop Worktable

Benchtop worktable is all about flexibility. If you need flexibility and unrestricted handling of a variety of CNC projects, this design is the best choice for you, allowing you to load and unload materials easily and freely. It gives you adaptability and efficiency no matter what project you're working on.

Product Features

  • The 5-axis linkage processing capability can realize complex 3D processing, complex 3D design, and high-precision complex contours.
  • The automatic tool changer (ATC) simplifies the tool-changing process, reduces production downtime, and improves operational efficiency.
  • The machine features a spacious 1300x2500mm work area that can accommodate large workpieces and multiple setups, increasing productivity and flexibility.
  • The advanced motion control technology ensures superior precision and accuracy in every machining operation, resulting in high-quality finished products.
  • This versatile machine can handle a variety of materials, including wood, metal, plastic, composites, and more, making it suitable for different applications in various industries.
  • The user-friendly software interface allows for easy programming and operation, allowing operators to effectively manage the CNC router.
  • A variety of spindle options are available, allowing users to select the appropriate spindle power and speed based on their specific application requirements.
  • The machine is constructed from sturdy and durable materials, ensuring reliable performance and minimal maintenance requirements.

Technical Parameters

Model AKM1212-5A AKM1224-5A AKM1325-5A AKM1530-5A
Working Area 1200x1200x600mm 1200×2400×600mm 1300×2500×600mm 1500×3000×600mm
C Axis (Rotary Axis) ±360°
B Axis (Swing Axis) ±110°
Framework Cast steel structure
Spindle Italian Hiteco 10kw 5-axis spindle with industry water chiller
Rotating Speed 6000-24000 rpm/min
Tool Magazine Disc-type ATC (with 8 tools) or Linear-type ATC (with 8 tools)
Drive Motors Yaskawa servo motor
Guide Rail Hiwin 30mm linear guide rail
X, Y, Z Axis Transmission X, Y axis rack and pinion rack, Z axis Taiwan TBI ball screw
Repositioning Accuracy ±0.03mm
Control System Taiwan syntec 610MA-E5 system

Product Applications

The 5-axis 1325 ATC CNC router is a powerful, versatile machining tool that can be used in a wide range of industries. Its ability to perform simultaneous 5-axis machining and automatic tool changing makes it ideal for complex tasks. Industries such as aerospace, automotive, and woodworking rely on it to produce complex parts, molds, and detailed wood products. Due to its precise functionality, it can also be used to create prototypes, signage, and artistic sculptures. This CNC router is suitable for a wide range of materials, making it a valuable asset in any field that requires high-precision 3D machining and detailing.
