Economical 6090 CNC router

The ball screw 6090 CNC router is a precision machining tool designed for cutting, carving, and shaping a variety of materials, including wood, and plastics.

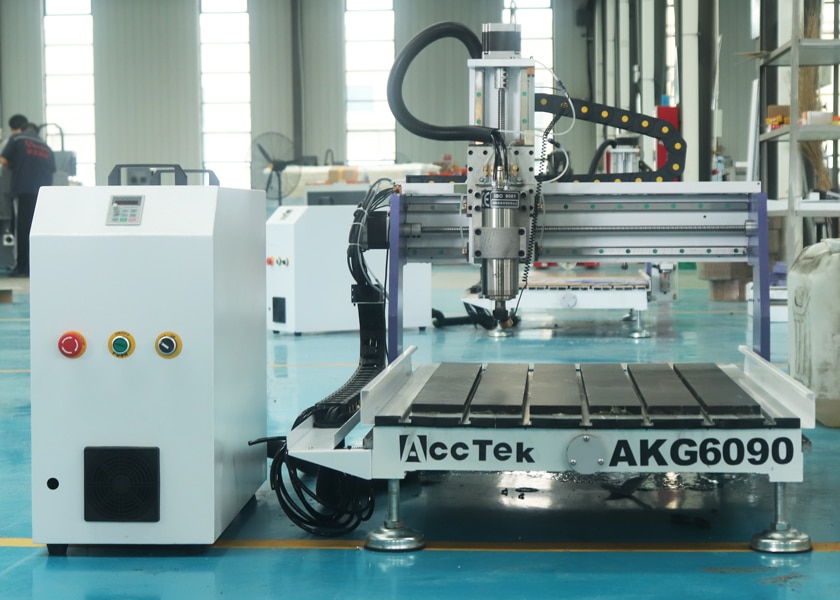

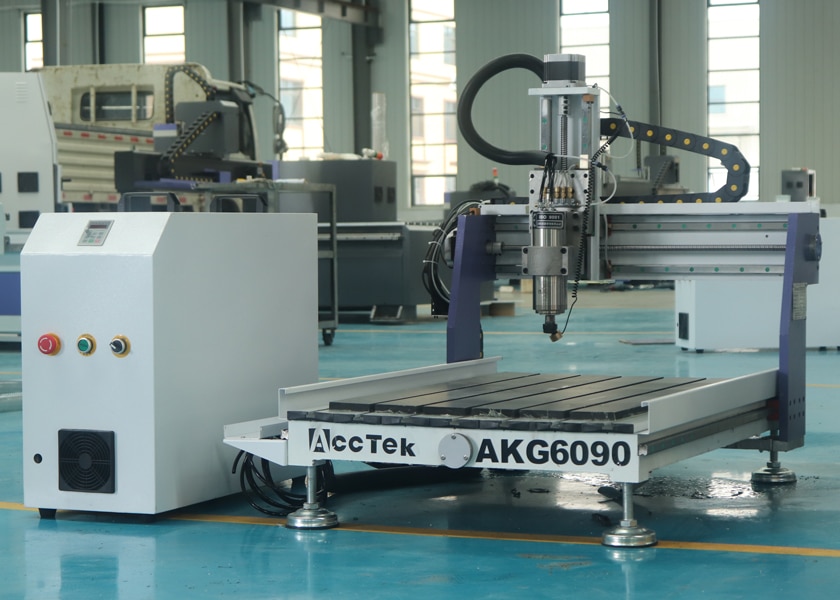

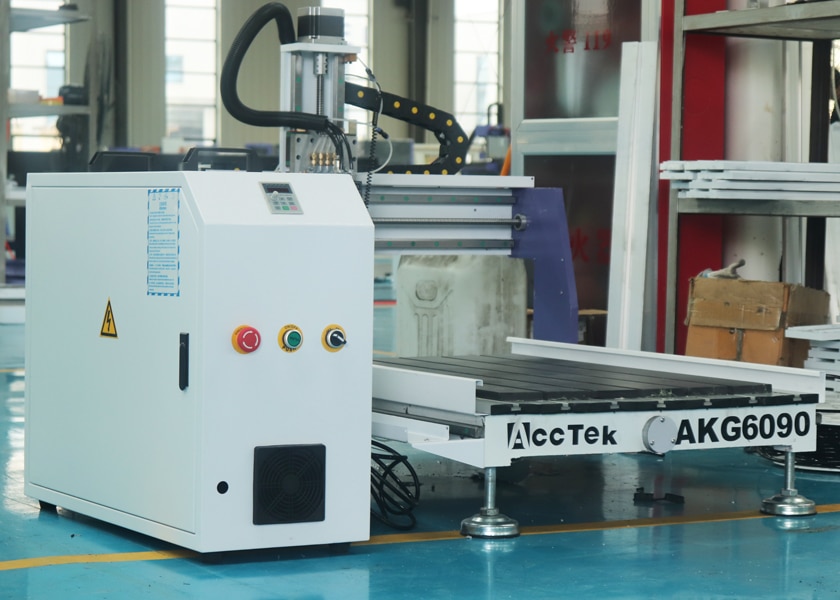

AKG6090 CNC Router

(4 customer reviews)

$2,600.00

Model: AKG6090
Barnd: AccTek CNC
Spindle: HQD
Drive Mode: NEMA23 311A Stepper Motor and Leadshine M542 Driver
Control System: Mach3
Table of Contents

Product Description

The ball screw 6090 CNC router is a precision machining tool designed for cutting, carving, and shaping a variety of materials, including wood, and plastics. It features a robust ball screw drive system, which ensures high-precision movement and accurate positioning of the cutting tool. The 6090 model typically has a working area of 600mm x 900mm, providing ample space for a wide range of projects. It’s commonly used in small to medium-sized workshops and manufacturing facilities. The ball screw 6090 CNC router is favored by hobbyists, artisans, and professionals for its reliability, versatility, and ability to produce high-quality, intricate workpieces. It’s an essential tool in the world of precision machining and woodworking.

Product Configuration

HQD Water Cooled Spindle

HQD Air/Water Cooling Spindle

The machine offers the flexibility to choose between two high-quality spindle options: HQD air-cooled spindle and HQD water-cooled spindle. Whether you choose air or water cooling, both spindle options are designed for efficient machining, helping to increase productivity without compromising work quality. This versatility allows you to customize the CNC router to best suit your specific requirements and application.

Cast Iron Body

The machine adopts a cast iron body, which can significantly reduce vibration, making the engraving process smoother. The inherent strength and density of cast iron provide unparalleled stability and rigidity, helping to minimize bending during machining, ensuring that every project is executed with optimal precision. The cast iron body offers exceptional durability, ensuring that the CNC router can deliver superior performance over an extended period of time.
Cast Iron Body
Mach3 Control System

Mach3 Control System

The machine is equipped with the Mach3 control system, which features a user-friendly operating interface that allows you to easily create complex designs, smooth curves, and sharp edges, allowing you to achieve high-quality results that match your vision. Advanced algorithms allow you to control your CNC router with extreme precision, guaranteeing outstanding results no matter how complex your design is.

NEMA23 311A Stepper Motor

The machine is equipped with a rugged NEMA23 311A stepper motor, ensuring excellent performance and reliability for your machining jobs. It delivers superior torque and precision, making it ideal for a variety of applications. Whether you’re doing complex engravings, complex engravings, or fine cuts, this high-torque stepper motor ensures your CNC router delivers outstanding results.
NEMA23 311A Stepper Motor
Leadshine M542 Driver

Leadshine M542 Driver

The machine features Leadshine M542 drives, which are an important component in ensuring top-notch performance and reliability in machining operations. It is a hallmark of quality and precision, renowned for its superior control and efficiency. Whether you’re working on intricate designs, engraving fine details, or performing intricate cuts, the Leadshine M860 drive keeps your CNC router running accurately and consistently.

Taiwan TBI Ball Screw Transmission Device

The machine is equipped with Taiwan TBI ball screw transmission, which provides minimal clearance and excellent repeatability. This ball screw is designed to convert rotary motion into linear motion with superior efficiency, not only saving energy but also ensuring your CNC machine runs smoothly and reliably. TBI ball screw drives feature a ball-bearing design that significantly reduces friction and wear, helping to extend service life.
Screw Transmission Device
Hiwin Guide Rail

Taiwan Hiwin Guide Rail

This machine uses Taiwan Hiwin guide rails, which provide unparalleled stability, ensuring your machine’s motion is rock solid, eliminating vibration, and guaranteeing the accuracy you need. The Hiwin guide rails are durable and focus not only on accuracy but also on durability. It’s built to withstand the rigors of continuous operation, delivering the longevity and reliability professionals rely on.

Fuling Inverter

This machine uses a Fuling inverter, which converts energy to power spindles, motors, and other important components, ensuring your machine runs at peak performance. Fuling inverter converters ensure the precision you need, allowing you to fine-tune the performance of your CNC router with high precision. It can withstand harsh working environments and provide you with continuous and reliable power.
Fuling Inverter

Optional Configuration

HQD Water Cooled Spindle

Rotary Axis

The machine supports optional rotary axes, allowing your CNC router to handle cylindrical objects. Whether you’re making custom round pieces or routing complex designs on curved surfaces, this feature enables your machine to handle a whole new range of projects.

Multiple Spindles

The machine can optionally be equipped with multiple spindles, which can increase the efficiency and flexibility of the machining process. Multi-axis configurations allow you to handle more tasks with precision and speed. Whether your project requires different tool diameters, different cutting depths, or routing and engraving at the same time, it’s guaranteed to help optimize workflow and reduce production time while maintaining the high-quality results you expect.
HQD Water Cooled Spindle
HQD Water Cooled Spindle

Swing Axis

The machine offers the option of being equipped with a swing axis, adding 3D routing capabilities to the machine. It enables you to create complex three-dimensional designs, contours, and engravings with ease and precision. Whether you’re making complex prototypes, detailed sculptures, or complex architectural models, this feature enhances your creativity and lets you turn your ideas into reality.

Product Features

  • The machine features a ball screw mechanism that increases the precision of the router by minimizing backlash and providing smoother, more consistent linear motion.
  • Ball screw drive combined with advanced motion control technology enables high-precision cutting and engraving tasks, making it suitable for complex designs and fine detail processing.
  • The machine works with a variety of materials, including wood, plastic, and composites, making it suitable for different applications.
  • The machine is compatible with a variety of computer-aided design (CAD) and computer-aided manufacturing (CAM) software, allowing users to create and execute complex designs with ease.
  • The machine comes with a user-friendly control interface, making it easier for operators to set up and run the machine efficiently.
  • This machine can handle heavy-duty tasks and materials thanks to its sturdy construction and ball screws’ ability to support large loads.
  • The machine features an anti-backlash mechanism that minimizes play and ensures tool accuracy.
  • The machine has a sturdy and durable structure, ensuring long-term reliability and stability during operation.

Technical Parameters

Model AKG6090 AKG6012 AKG1212
X, Y, Z Working Area 600x900x200mm 600x1200x200mm 1200x1200x200mm
Whole Structure Whole Structure
Worktable Surface T-Slot Worktable
Movement Parts Taiwan TBI Ball Screw Transmission
Spindle Type 1.5KW Water Cooling Spindle
Spindle Speed 24000 rpm
Drive Motor NEMA23 Stepper Motor and Leadshine M542 Driver
Max Rapid Travel Rate 15000 mm/min
Max Working Speed 8000mm/min
Control System Mach3 Control System with Ethernet Connection
Machine Precision 0.01mm
Repositioning Precision 0.03mm
Working Voltage 1/3 Phase, 380v/220V, 50/60HZ
Z-Axis Setting Auto Z Origin Tool Sensor

Product Applications

The ball screw 6090 CNC router finds a wide range of applications across various industries due to its precision, versatility, and efficiency. Some notable product applications include:
  • Woodworking: The router excels in creating intricate woodwork, such as detailed carvings, furniture components, cabinetry, and ornamental designs, thanks to its high precision.
  • Prototyping: Engineers and product designers use the router for rapid prototyping of parts and models, allowing for iterative development and testing of designs.
  • Sign Making: The router is popular in the sign-making industry for creating high-quality signs, lettering, and graphics on various materials, including acrylic, PVC, and wood.
  • Plastics Fabrication: It is employed for cutting and shaping plastic materials, ideal for manufacturing custom enclosures, displays, and packaging components.
  • Foam Cutting: The router is employed for cutting and shaping foam materials, making it valuable for packaging, foam inserts, and artistic applications.
  • Model Making: Model makers use the router to craft intricate and detailed scale models of buildings, vehicles, and more.
The ball screw 6090 CNC router’s ability to provide high-quality, precise results on a variety of materials has made it a versatile tool in industries that demand accuracy and craftsmanship. Its applications continue to expand as technology and customization options advance.

Why Choose AccTek CNC?

Enjoy a 1 to 3-year warranty for the entire machine. If any problems occur during the warranty period, major parts (excluding consumables) will be replaced free of charge.
If you need installation or adjustments, we can dispatch technicians to provide you with hands-on assistance to ensure your CNC router is optimally set up.

We offer free lifetime maintenance to ensure your machine remains running at its best for years to come.

Lifetime online technical support is available, and expert help is just a message or call away, ensuring you’re never left stranded if something goes wrong.
Our CNC routers are designed and manufactured by experts who understand the ins and outs of CNC machining, ensuring the highest quality performance.
Our CNC routers offer customization and accessory options, so no matter what your project is, we can provide a solution to meet your unique needs.
