Name: Semi-Enclosed 6060 Metal ATC CNC Router With Heavy Duty Body
Price: 10500.00 USD
Availability: InStock
Rating: 5.00 (4 reviews)

AK6060C CNC Router

Rated 5.00 out of 5 based on 4 customer ratings

(4 customer reviews)

$10,500.00

Model: AK6060C
Barnd: AccTek CNC
Spindle: HQD
Drive Mode: Stepper Motor
Control System: NK280B

Product Description

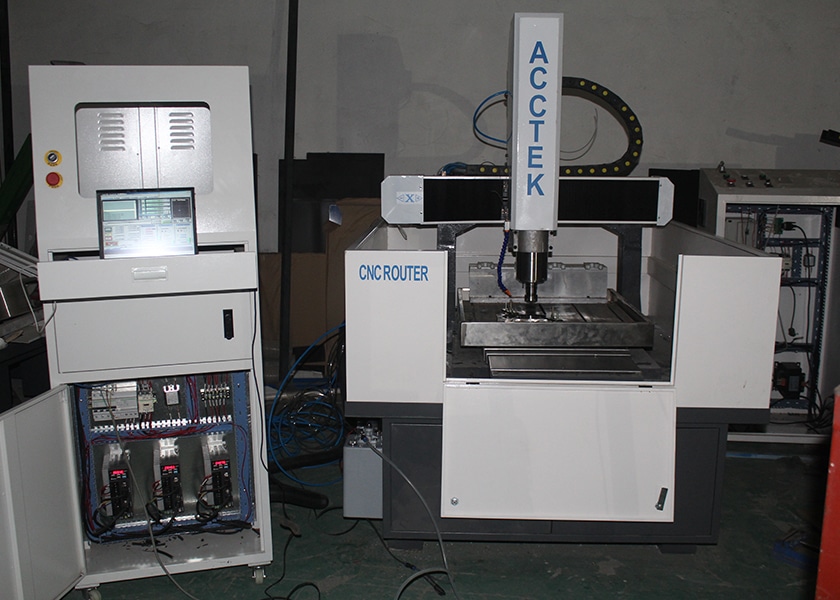

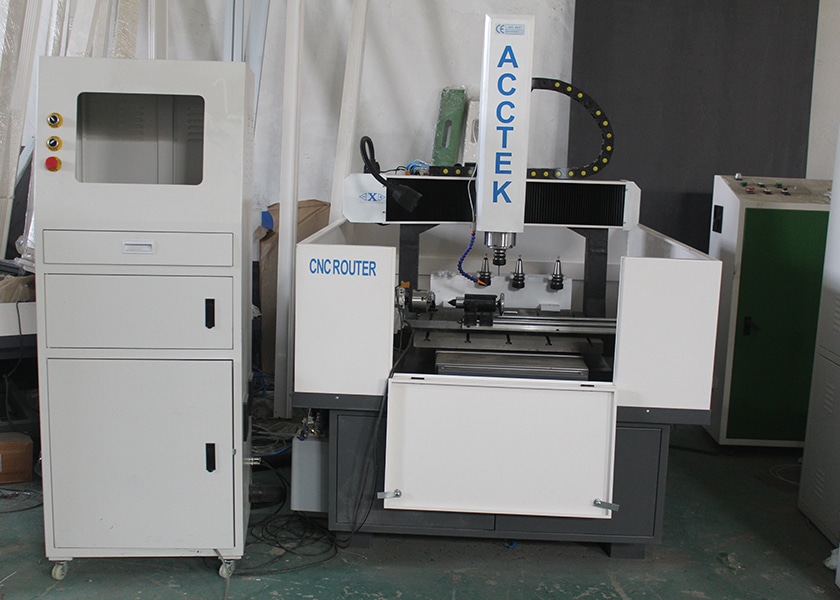

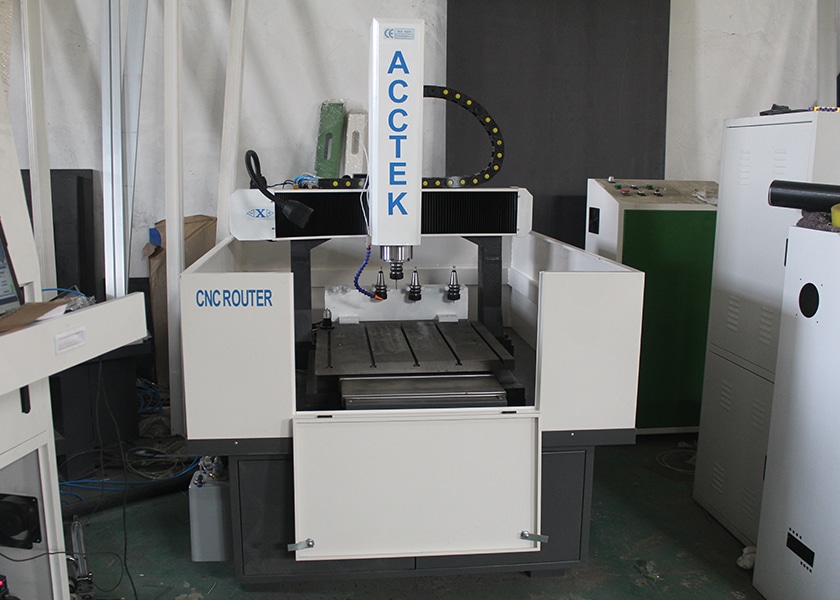

The AK6060C CNC router is a high-performance, ATC (Automatic Tool Change) CNC machine, specifically designed for precise and efficient metal engraving. Equipped with a semi-enclosed heavy-duty steel structure, this router ensures robust durability and stable operation even under demanding conditions. The machine features a high-quality ATC water-cooled spindle, which enhances performance and longevity by maintaining optimal temperature levels during extended use. The Taiwan TBI ball screw transmission device and Taiwan Hiwin guide rails deliver superior precision and smooth motion, ensuring accurate engraving results on a wide range of metals.
The AK6060C CNC router is powered by a Weihong NK280B controller, which offers seamless control and integration with advanced engraving software, while the Leadshine Easy Servo motor ensures high torque and speed for fast, precise machining. The Delta inverter provides excellent power efficiency and reliable motor control, contributing to reduced energy consumption and consistent performance. Additionally, the cast iron T-slot worktable ensures secure clamping of materials, minimizing vibration and ensuring clean cuts. Ideal for industries requiring high-quality metal engravings, such as aerospace, automotive, tooling, and custom fabrication, the AK6060C CNC router delivers precision, reliability, and flexibility for a wide range of applications.

Product Configuration

Semi-Enclosed Heavy-duty Steel Structure Body

The machine features a semi-enclosed heavy-duty steel structure body, which not only improves safety but also ensures optimal protection for your precision cutting projects. The semi-enclosed design minimizes the risk of debris and dust escaping the work area, keeping your workspace clean and safe. The sturdy steel body forms the backbone of the machine, providing unparalleled stability and reliability you can count on even during the most challenging machining tasks.

ATC Water-Cooled Spindle

The machine is equipped with an ATC water-cooled spindle, which allows your CNC router to seamlessly switch between different cutting tools, reducing downtime and increasing productivity. This means you don’t have to manually change tools to tackle a variety of tasks, saving valuable time and energy. Water cooling ensures optimal temperature control, preventing overheating during extended use and guaranteeing consistent engraving quality.

Taiwan TBI Ball Screw Transmission Device

The machine is equipped with Taiwan TBI ball screw transmission, which provides minimal clearance and excellent repeatability. This ball screw is designed to convert rotary motion into linear motion with superior efficiency, not only saving energy but also ensuring your CNC machine runs smoothly and reliably. TBI ball screw drives feature a ball-bearing design that significantly reduces friction and wear, helping to extend service life.

Taiwan Hiwin Guide Rail

This machine uses Taiwan Hiwin guide rails, which provide unparalleled stability, ensuring your machine’s motion is rock solid, eliminating vibration, and guaranteeing the accuracy you need. The Hiwin guide rails are durable and focus not only on accuracy but also on durability. It’s built to withstand the rigors of continuous operation, delivering the longevity and reliability professionals rely on.

Cast Iron T-Slot Worktable

The machine features a sturdy cast iron T-slot worktable, providing a rock-solid foundation for your machining projects. The T-slot design provides versatility for holding workpieces, jigs, and fixtures, allowing for quick and safe installation. The inherent rigidity of cast iron prevents deflection during machining, allowing you to achieve the high precision required for intricate detail, fine engraving, and consistent top-quality results.

Weihong NK280B Controller

The machine is equipped with a Weihong NK280B controller, which gives you access to a user-friendly interface that simplifies the operation of the CNC router. The controller enables you to optimize your workflow, from setting up machining tasks to monitoring progress. It provides precise control over tool paths and cutting parameters, ensuring your projects are executed with the highest level of accuracy and efficiency. Additionally, the controller’s compatibility with a variety of file formats and software enables it to adapt to a variety of applications and industries.

Leadshine Easy Servo Motor

The machine features a Leadshine easy servo motor that provides unparalleled precision. It operates with meticulous precision, ensuring that your CNC router’s movement is smooth, consistent, and free of any unnecessary vibration or inaccuracy. Its rugged design and high-quality components ensure long-term reliability, reducing the need for frequent maintenance and replacement.

Delta Inverter

The machine is equipped with a reliable and efficient delta inverter, a key component that increases the accuracy and efficiency of the machine. The inverter delivers precise speed and control of the spindle motor, ensuring your project is executed with optimal precision and consistency. It is known not only for its performance but also for its energy efficiency, contributing to lower operating costs and a more environmentally friendly process.

Product Features

Heavy-Duty Steel Structure: The semi-enclosed heavy-duty steel structure provides exceptional rigidity and stability, minimizing vibrations and ensuring high accuracy during operation, even under heavy-duty workloads.
ATC Water-Cooled Spindle: The ATC water-cooled spindle ensures continuous high-performance engraving while maintaining an optimal temperature to prevent overheating, increasing tool life and allowing for longer operational hours.
Taiwan TBI Ball Screw Transmission Device: Equipped with Taiwan TBI ball screw transmission, the router offers smooth, precise movement and superior accuracy in metal engraving tasks, ensuring minimal backlash and better control over the machine’s movements.
Taiwan Hiwin Guide Rail: The use of Taiwan Hiwin guide rails enhances the router’s overall precision and stability, providing smooth, reliable motion along all axes, which is essential for high-quality engraving on metal surfaces.
Cast Iron T-Slot Worktable: The robust cast iron T-slot worktable offers excellent support for a variety of materials and workpieces. The T-slot design allows for easy clamping and securing of metal workpieces, ensuring precise machining with minimal movement.
Weihong NK280B Controller: The Weihong NK280B controller integrates seamlessly with the machine’s operations, providing intuitive control, easy integration with CAD/CAM software, and efficient management of the tool-changing process, leading to reduced downtime.
Leadshine Easy Servo Motor: The Easy Servo motor from Leadshine delivers smooth, powerful motion with high torque at all speeds. It enhances the router’s overall cutting efficiency and reduces energy consumption.
Delta Inverter: The Delta inverter ensures optimal motor control and power efficiency, enhancing machine performance and reducing energy costs. It also improves the machine’s response time and extends the motor’s lifespan.

Technical Parameters

Model	AK4040C	AK6060C
X, Y, Z Working Area	400x400x200mm	600x600x200mm
Worktable Size	400x400mm	600x600mm
Worktable Surface	T-Slot Extrusions
Worktable Frame	Whole Cast Steel
Drive Motors	Hybrid Servo Motors
Traveling Positioning Accuracy	±0.005mm
Repositioning Accuracy	±0.003mm
Transmission	TBI Ball Screw from Taiwan
Guide Rails	Hiwin Linear Guide Rails
Max Power Consumption (Without Spindle)	0.8KW
Max Rapid Travel Rate	Max Rapid Travel Rate
Max Working Speed	8000mm/min
Spindle Power Motor	Spindle Power Motor
Spindle Speed	0-18000 RPM
Operating System	Weihong NK280B Controller
Inverter	Delta Inverter
Running Environment	Temperature: 0℃～45℃; Relative Humidity: 30%～75%

Product Applications

The AK6060C CNC router is an ideal solution for a wide range of precision metal engraving applications across various industries. Its advanced features and robust design make it suitable for tasks that demand high accuracy, reliability, and efficiency.

Signage Production: The CNC router is perfect for creating metal signage, whether for industrial, commercial, or decorative purposes. It delivers consistent results on both small and large sign projects, ensuring crisp, clean lines on metal surfaces.
Automotive and Aerospace Parts: Due to its high precision and robust structure, the CNC router is well-suited for engraving intricate designs, serial numbers, and logos on metal parts used in the automotive, aerospace, and manufacturing sectors.
Industrial Tooling: The CNC router is frequently used in the creation of custom industrial tools, molds, and dies. Its precise ball screw transmission and servo motor allow for the intricate engraving of tools used in various manufacturing processes.
Architectural Components: The CNC router is capable of engraving decorative designs on metal architectural components, such as railings, panels, and signage, offering a high degree of customization for the construction and interior design industries.
