Name: Entry Level 4040 Metal CNC Router
Price: 4000.00 USD
Availability: InStock
Rating: 5.00 (4 reviews)

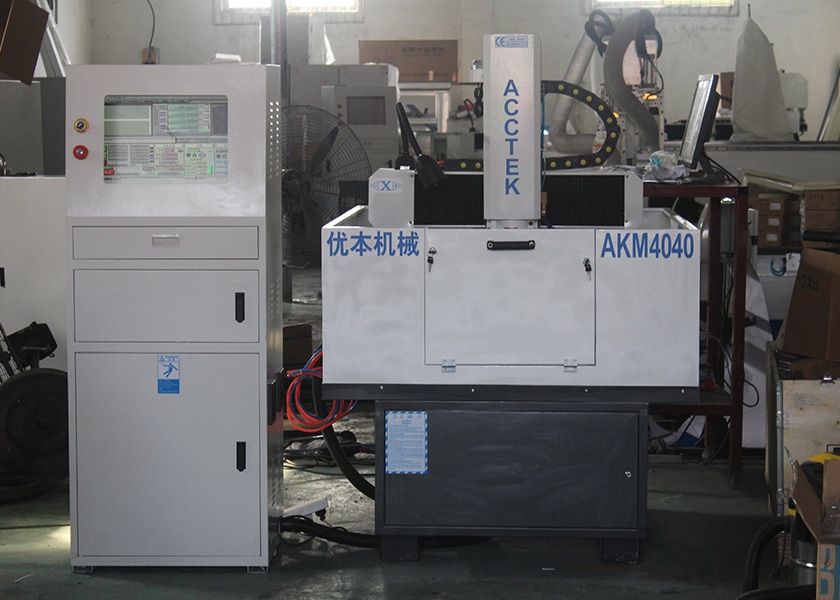

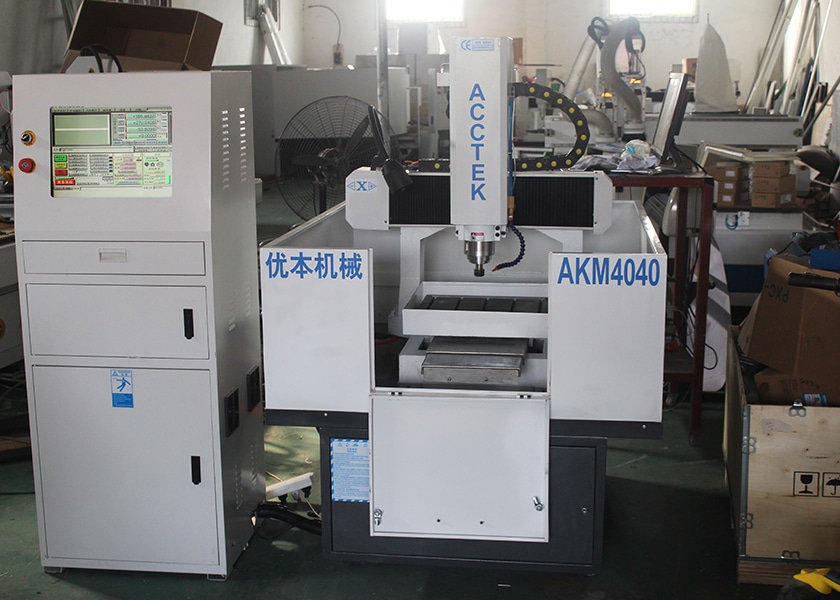

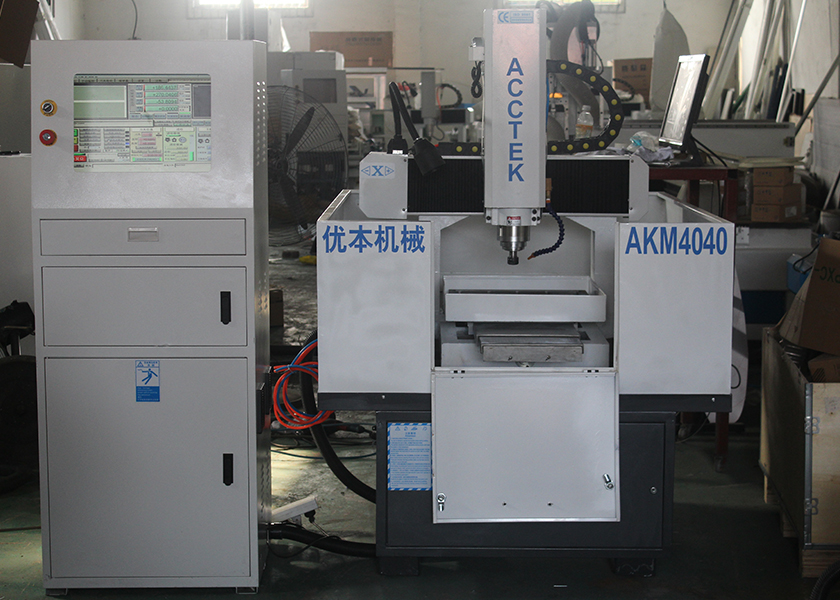

AK4040 CNC Router

Rated 5.00 out of 5 based on 4 customer ratings

(4 customer reviews)

$4,000.00

Model: AK4040
Barnd: AccTek CNC
Spindle: HQD
Drive Mode: Stepper Motor
Control System: Mach3

Product Description

The AK4040 CNC router is a high-performance machine specifically designed for precision metal engraving and machining. With a robust, heavy structural body, it provides the necessary stability to handle detailed engraving tasks on a variety of metal surfaces, including aluminum, brass, copper, and steel. The machine is equipped with a water-cooled spindle, ensuring optimal heat dissipation during prolonged operation and maintaining consistent cutting performance.
This CNC router is powered by a high-precision stepper motor, offering superior accuracy and smooth motion, crucial for intricate engraving work. The Taiwan Hiwin guide rail system provides reliable and precise movement along the axes, ensuring tight tolerances and flawless finishes. The Mach3 control system is user-friendly and provides precise control over all aspects of the engraving process, making it suitable for both beginners and experienced operators.
The AK4040 CNC router is ideal for a range of applications, including engraving logos, text, and intricate designs on metal products, manufacturing parts, and creating customized items. Its versatility, durability, and precision make it a valuable tool for industries such as metalworking, jewelry, automotive, and electronics.

Product Configuration

Steel Structure Body

The machine is equipped with a sturdy and durable steel structure body that ensures unparalleled stability, eliminates vibration, and ensures superior cutting and engraving accuracy. The rigidity of the steel structure body minimizes deformation during machining, translating into precise carvings even when working with challenging materials.

HQD Water-Cooled Spindle

The machine is equipped with an HQD water-cooled spindle, which provides excellent precision and consistent results. The water cooling system provides excellent cooling capacity, ensuring effective heat dissipation during long machining operations, preventing the spindle from overheating and allowing extended use without affecting performance. This spindle offers variable speed control, allowing you to adjust the RPM of the spindle to suit different materials and engraving requirements.

Taiwan TBI Ball Screw Transmission Device

The machine is equipped with Taiwan TBI ball screw transmission, which provides minimal clearance and excellent repeatability. This ball screw is designed to convert rotary motion into linear motion with superior efficiency, not only saving energy but also ensuring your CNC machine runs smoothly and reliably. TBI ball screw drives feature a ball-bearing design that significantly reduces friction and wear, helping to extend service life.

Taiwan Hiwin Guide Rail

This machine uses Taiwan Hiwin guide rails, which provide unparalleled stability, ensuring your machine’s motion is rock solid, eliminating vibration, and guaranteeing the accuracy you need. The Hiwin guide rails are durable and focus not only on accuracy but also on durability. It’s built to withstand the rigors of continuous operation, delivering the longevity and reliability professionals rely on.

Cast Iron T-Slot Worktable

The machine features a sturdy cast iron T-slot worktable, providing a rock-solid foundation for your machining projects. The T-slot design provides versatility for holding workpieces, jigs, and fixtures, allowing for quick and safe installation. The inherent rigidity of cast iron prevents deflection during machining, allowing you to achieve the high precision required for intricate detail, fine engraving, and consistent top-quality results.

Mach3 Control System

The machine is equipped with the Mach3 control system, which features a user-friendly operating interface that allows you to easily create complex designs, smooth curves, and sharp edges, allowing you to achieve high-quality results that match your vision. Advanced algorithms allow you to control your CNC router with extreme precision, guaranteeing outstanding results no matter how complex your design is.

High-Precision Stepper Motor

Equipped with highly reliable and precise stepper motors, the machine offers a range of advantages to meet the needs of various applications. Rugged construction and meticulous engineering ensure long-lasting performance, reducing downtime and maintenance costs. The motor’s ability to provide fine control of movement translates into precise cuts and detailed engravings, giving you the confidence to create exceptional work.

Fuling Inverter

This machine uses a Fuling inverter, which converts energy to power spindles, motors, and other important components, ensuring your machine runs at peak performance. Fuling inverter converters ensure the precision you need, allowing you to fine-tune the performance of your CNC router with high precision. It can withstand harsh working environments and provide you with continuous and reliable power.

Product Features

Heavy Structural Body: The machine is built with a robust, heavy-duty structural frame that ensures excellent stability and minimal vibration during operation. This construction is crucial for maintaining precision and accuracy during metal engraving processes.
Water-Cooled Spindle: Equipped with a water-cooled spindle, this CNC router provides superior thermal management, ensuring consistent performance even during extended usage. The efficient cooling system helps to maintain optimal cutting speeds and extend spindle life.
Taiwan Hiwin Guide Rail: The machine features Taiwan Hiwin guide rails that provide exceptional precision, smooth movement, and high load capacity. This advanced rail system ensures the accurate positioning of the cutting tool, even under heavy workloads.
Mach3 Control System: The user-friendly Mach3 control system allows for precise operation and easy setup, making it suitable for both beginners and advanced users. It supports a wide range of engraving and machining tasks, enhancing the versatility of the router.
High-Precision Stepper Motor: The machine is powered by high-precision stepper motors, ensuring smooth, accurate, and repeatable motion. This is essential for achieving fine detail and precise engravings on metal surfaces.
Fuling Inverter: The Fuling inverter provides a reliable power supply and enhances motor performance, ensuring consistent operation and energy efficiency, even during high-demand tasks.
High-Performance Leadshine Driver: With a Leadshine driver, the machine delivers enhanced motor control, improving speed, torque, and overall performance for detailed engraving and cutting.
Tool Sensor: The integrated tool sensor enhances the user experience by automatically measuring tool length and adjusting for precise cutting depths, improving cutting accuracy and efficiency.

Technical Parameters

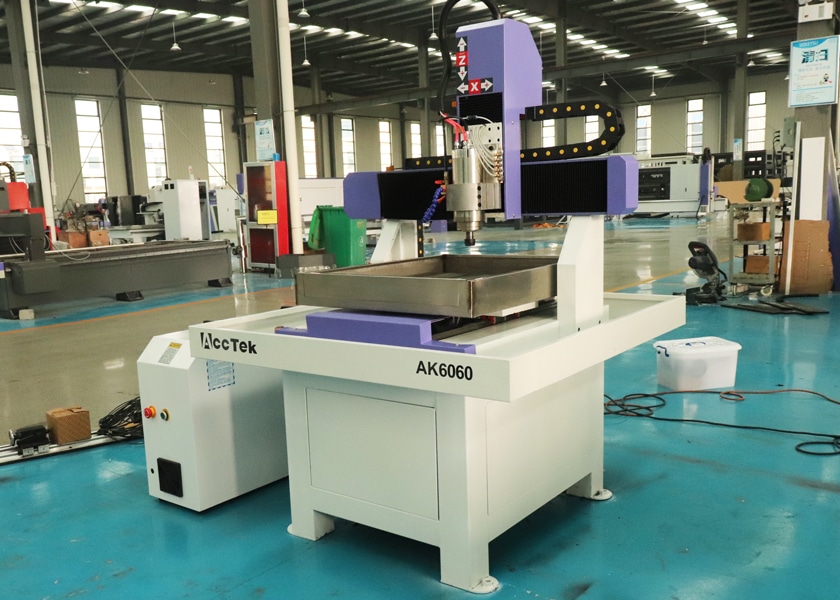

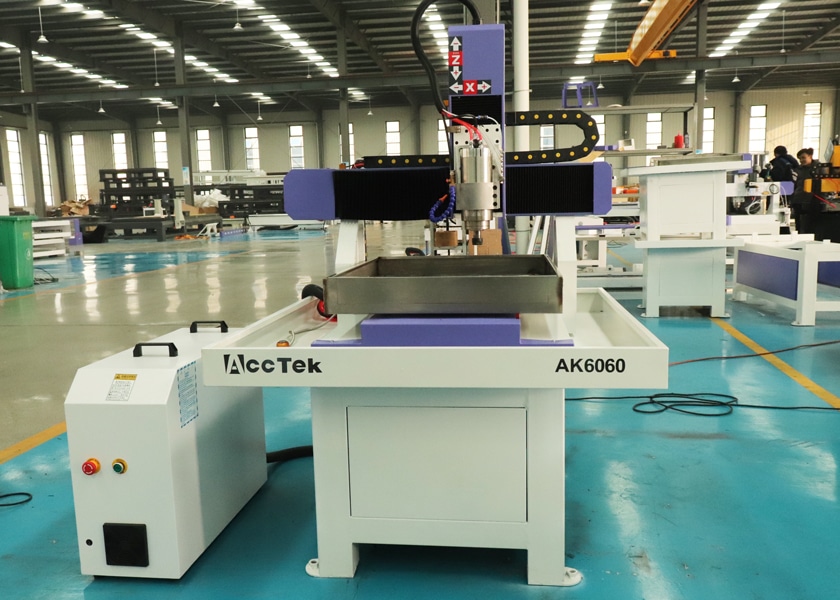

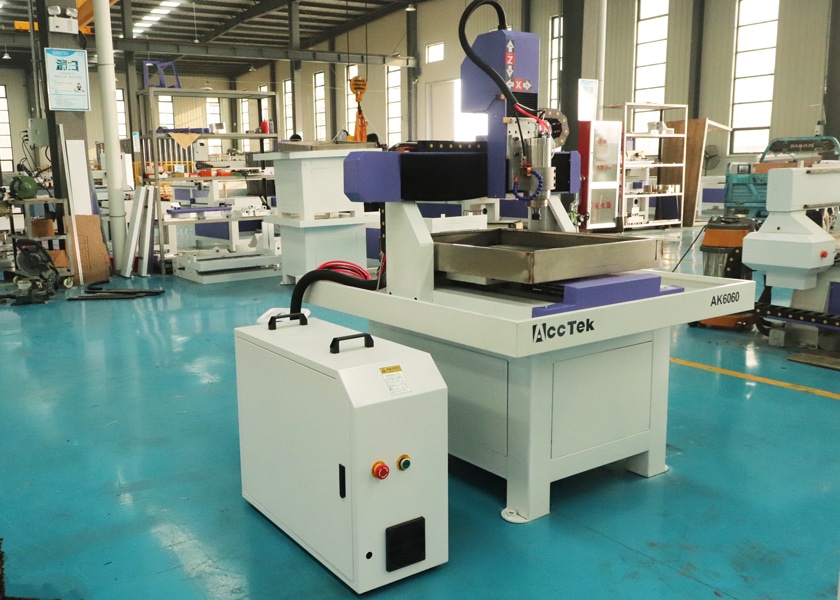

Model	AK4040	AK6060
X, Y, Z Working Area	400x400x150mm	600x600x150mm
Worktable Size	400x400mm	600x600mm
Traveling Positioning Accuracy	±0.03mm
Repositioning Accuracy	±0.03mm
Worktable Surface	T-Slot Extrusions
Worktable Frame	Whole Cast Steel
Transmission	TBI Ball Screw from Taiwan
Guide Rails	Hiwin Rail Linear Guide Rails
Max Power Consumption (Without Spindle)	0.8KW
Max Rapid Travel Rate	6000mm/min
Max Working Speed	4000mm/min
Spindle Power Motor	2.2KW Water-Cooled Spindle
Spindle Speed	0-24000 rpm
Drive Motors	Stepper Motors
Operating System	Mach3 Controller
Inverter	Shanghai Fuling Inverter
Working Voltage	220/380V/50/60Hz

Product Applications

The AK4040 CNC router is a versatile and high-precision machine specifically designed for metal engraving, catering to various industries that require fine and detailed engraving on metal surfaces. Some of the primary applications include:

Aerospace Industry: Used for engraving metal parts in the aerospace sector, the machine provides the accuracy and reliability needed to mark components with part numbers, identification codes, and other crucial information that must adhere to stringent quality standards.
Automotive Industry: In automotive manufacturing, the machine is used for engraving serial numbers, logos, and branding elements on metal parts and components, ensuring precision and long-lasting results on both functional and decorative parts.
Tool and Die Making: The machine is used in the tool and die industry for engraving fine details on molds, dies, and tools. Its precision ensures that detailed markings and designs are applied to complex, high-precision tooling.
Signage and Branding: The machine is perfect for creating custom metal signs, nameplates, and industrial branding elements. Its precision enables crisp and clear engraving on metals for applications such as corporate signage, product branding, and identification tags.

Why Choose AccTek CNC?

Enjoy a 1 to 3-year warranty for the entire machine. If any problems occur during the warranty period, major parts (excluding consumables) will be replaced free of charge.

If you need installation or adjustments, we can dispatch technicians to provide you with hands-on assistance to ensure your CNC router is optimally set up.

We offer free lifetime maintenance to ensure your machine remains running at its best for years to come.

Lifetime online technical support is available, and expert help is just a message or call away, ensuring you’re never left stranded if something goes wrong.

Our CNC routers are designed and manufactured by experts who understand the ins and outs of CNC machining, ensuring the highest quality performance.

Our CNC routers offer customization and accessory options, so no matter what your project is, we can provide a solution to meet your unique needs.
