What is CNC Router Homing?
Before a CNC router can begin cutting with precision, it must first know exactly where it is within its workspace. This is where homing comes into play. Homing is a foundational step in CNC operation that allows the machine to establish a known reference point. Here are the details of the CNC router homing:
Definition of Homing
Homing in a CNC router is the initialization process that determines the machine’s reference point before beginning any operation. When you turn on a CNC router or reset the system, it doesn’t automatically know where the cutting head is located within the machine’s travel range. Homing solves this by moving each axis (X, Y, and Z) to a known mechanical position, often using sensors or limit switches.
This process sets a consistent “machine zero” point that the CNC control system uses to track the position of the tool during operation. Without proper homing, the CNC router cannot position itself accurately, which would lead to errors in cutting, engraving, or drilling.
Explanation of Homing Position
The homing position, also known as machine zero or home, is the physical point on the CNC router where each axis reaches its mechanical limit. This point is determined by limit switches, proximity sensors, or optical sensors mounted at specific locations along the axes. Typically, the homing position is at one of the machine’s corners, often the front-left or back-left, depending on the machine’s design.
It is important to note that this position is different from the workpiece zero or work offset, which the user defines based on the specific material and job layout. While the homing position is fixed and used by the machine’s controller for system calibration, the work zero is user-defined and changes from project to project.
Working Principle of the Homing Process
The homing process begins when the CNC router receives a command to “home” or initialize. The controller activates each axis, typically starting with the Z-axis for safety, by moving it slowly toward its designated endpoint. As the axis travels, it eventually contacts a limit switch or is detected by a sensor. When this happens, the system records the axis’s position and sets it as the home coordinate (usually 0).
This is done sequentially for all axes Z, then Y, and then X. The machine then uses this fixed point as a baseline to measure all subsequent movements. Some systems also apply a slight reverse move after the initial trigger (called “homing back-off”) to improve accuracy and avoid constant contact with the switch. The completion of this process ensures that the CNC router knows exactly where it is in its coordinate system, allowing for precise and repeatable machining.
CNC router homing is a crucial process that sets the stage for accurate and safe machining. By defining a consistent starting point, homing ensures the machine can perform its tasks with precision and reliability. Understanding how homing works helps operators avoid errors and maximize the performance of their CNC equipment.
Components Involved in Homing
The homing process of a CNC router relies on several key components that work together to establish the machine’s reference point accurately and safely. Understanding these components helps operators maintain their machines properly and troubleshoot issues effectively.
Limit Switches and Proximity Sensors
Limit switches or proximity sensors are the most critical components for homing. These components are installed at the ends of the X, Y, and Z axes and are responsible for triggering a signal when an axis reaches its designated endpoint.
- Limit switches are mechanical devices that get physically pressed when the machine’s axis reaches the end of its travel. They are simple, cost-effective, and commonly used in entry- to mid-level CNC routers.
- Proximity sensors, on the other hand, detect the presence of an object (usually the machine frame or gantry) without physical contact. These sensors can be inductive, capacitive, or optical, and they offer higher durability since there is no wear and tear from direct contact.
Both types serve the same function: once activated, they tell the CNC controller to stop the axis movement and mark that point as a coordinate zero, forming the foundation for accurate machine operation.
Control System and Software Configuration
The control system is the central processing unit that manages all movements and interprets feedback from the sensors or switches. It runs the firmware or motion control software responsible for executing the homing sequence.
- The controller receives homing commands either manually through a control panel or automatically at machine startup.
- During the homing process, it moves the machine slowly toward each limit switch or sensor, monitors the input signal, and records the exact moment contact is made.
- Most controllers are configured to home in a specific sequence, typically Z-axis first to raise the spindle safely, followed by X and Y to avoid collisions.
The software configuration (such as in MACH3, LinuxCNC, or DSP-based controllers) allows users to define homing parameters including direction, speed, back-off distance (to slightly reverse after the switch is triggered for accuracy), and axis travel limits. Proper configuration ensures the machine knows how to find home safely and consistently every time.
Axis Motion (X, Y, Z) During Homing
The actual movement of the machine during homing is carefully controlled and sequential:
- Z-Axis: The homing sequence usually starts with the Z-axis. This is a safety feature that lifts the tool away from the work surface to prevent accidental collisions during the rest of the process.
- X-Axis and Y-Axis: After the Z-axis is homed, the controller proceeds to the X and Y axes. These move toward their respective home positions until the limit switches or sensors are activated.
Each axis moves at a slower, controlled speed to ensure precision when approaching the home position. Once an axis hits the switch, it often performs a small “back-off” and re-approach (called homing debounce or pull-off) to confirm accuracy and avoid resting on the switch itself. This ensures a repeatable and stable zero position.

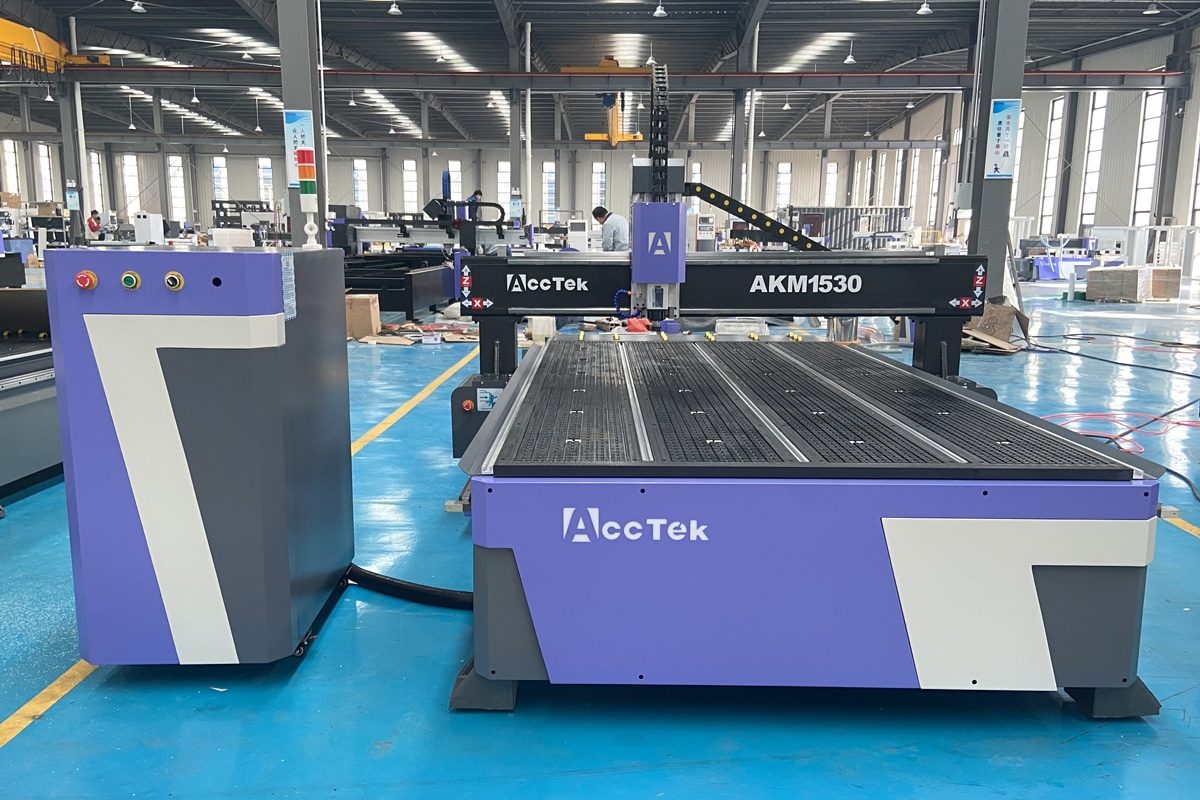

Why is Homing Important?
Homing is one of the most essential steps in CNC router operation, and skipping it can lead to serious problems in machining accuracy and safety. Here’s why homing matters:
Ensuring Accuracy and Repeatability
Homing gives the CNC router a consistent reference point. Without homing, the machine has no way of knowing where the tool head is relative to the work area. By homing the CNC router before each job, the system can accurately position the tool and follow the programmed toolpaths precisely. This ensures every cut is placed exactly where it should be, even across multiple jobs or repeated runs. For applications requiring tight tolerances or batch production, this repeatability is beneficial to maintaining consistent quality and minimizing waste.
Preventing Collisions and Mechanical Errors
When a CNC router is not homed, it may operate based on incorrect positional data, which can cause the spindle or cutting head to move beyond its safe limits. Homing defines the safe boundaries of travel for each axis and ensures the machine knows exactly where it is within that range. Especially during tool changes, rapid positioning, or Z-axis plunges, proper homing helps avoid unintended contact or crashes that could halt production or require costly repairs.
Enabling Reliable Automated Operation
Modern CNC routers are often used in automated workflows where minimal human supervision is required. Homing allows the machine to operate autonomously with confidence in its spatial orientation. Once the machine is homed, it can automatically move to predefined start points, tool change locations, or multiple workpiece positions. This reduces operator input and eliminates guesswork, making automation not only possible but also reliable. In large-scale or multi-machine setups, homing standardizes behavior across all systems, streamlining operations and reducing variability.
Recovering from Power Outages or Emergency Stops
If a CNC router loses power, is restarted, or undergoes an emergency stop, it loses track of its current position. The machine can no longer safely resume movement because it doesn’t know where the tool is located in space. Homing provides a reliable method to recalibrate the machine’s coordinates after such events. Once re-homed, the machine can safely resume operations or restart a job from a known point, minimizing downtime and avoiding the need to start over from scratch.
Homing is more than just a technical requirement, it’s the foundation for precision, safety, automation, and resilience in CNC router operation. Whether you’re running a single project or managing full-scale production, a properly homed machine ensures everything starts in the right place and stays on track from beginning to end.
Common Homing Procedures
Homing is a routine yet essential step in CNC router operation. While the specific method may vary depending on the machine and control system, most CNC routers follow a few standard procedures to ensure accurate and safe homing.
Automatic Homing
Most modern CNC routers support automatic homing through a physical button on the control panel or a software-based command (such as a “Home All” button in the interface). When triggered, the machine automatically performs a homing cycle using limit switches or sensors. The sequence typically follows this pattern:
- The Z-axis moves up first to avoid crashing into the material or clamps.
- The X and Y axes then move one at a time or simultaneously toward their limit switches.
- Once each switch is triggered, the system may perform a slow reverse movement and re-approach (pull-off) for added accuracy.
- After completion, the machine sets this location as the machine origin or (0,0,0).
This is the most accurate and efficient homing method, commonly used during machine startup, job preparation, or after a reset.
Manual Homing
Manual homing is typically used on simpler machines or when automatic homing is disabled or unavailable. In this procedure, the operator manually moves each axis (X, Y, and Z) using jog controls or handwheels until the cutting head reaches the desired home position, usually close to or at the physical limits of the machine’s travel.
Once positioned, the operator must manually set the machine’s current coordinates to zero using the control software. While functional, this method is prone to human error and lacks the precision of sensor-based automatic homing. It is generally not recommended for high-precision tasks unless the machine has no limit switches or automatic homing capability.
Homing All Axes
“Homing all axes” refers to the standard practice of running a complete homing cycle where the X, Y, and Z axes are homed in sequence. This ensures the entire machine is realigned to its known zero point. By homing all axes, the CNC router regains full positional awareness across its entire working envelope, allowing for accurate toolpath execution and avoiding unexpected crashes.
Homing a Single Axis
Some systems allow the user to home each axis separately when only one axis has been moved manually or needs recalibration. Most control systems provide options like “Home X Axis,” “Home Y Axis,” or “Home Z Axis.” This allows operators to correct the position of just one axis without affecting the others. It’s a convenient way to fix minor errors or re-align one component of the machine without performing a full homing cycle.
Different homing methods serve different operational needs. While manual homing may be used in limited situations, automatic homing via buttons or commands is the preferred method for most modern CNC routers. Whether you choose to home all axes or just a single axis, the key is to ensure that the machine always starts from a known and accurate reference point for safe, precise, and repeatable performance.
When Should You Perform Homing?
Homing isn’t just a one-time setup, it’s a routine process that should be performed regularly to ensure your CNC router operates safely and accurately. Here are the most common situations when homing should be performed:
- At Machine Startup: Every time you power on your CNC router, you should perform a homing cycle. When the machine is turned off, it loses track of its current position. Homing at startup re-establishes a known reference point (machine zero) so that all movements and toolpaths are calculated correctly. Many modern CNC systems are configured to require homing before any other operation is allowed.
- After a Power Outage or Emergency Stop: If the CNC router experiences a power interruption or is stopped suddenly during operation, it loses its positional data. In such cases, it is necessary to perform the homing procedure again before continuing work. This allows the machine to recover its coordinate system and safely resume or restart the job without risking misalignment or tool crashes.
- After Manual Axis Movement: If you manually move any of the machine’s axes (for maintenance, adjustments, or repositioning), the CNC system no longer knows where the spindle or tool head is located. Homing should be performed afterward to re-calibrate the machine’s position and restore its spatial awareness before running a new program.
- Before Starting a New Job: Even if your machine is already powered on and hasn’t experienced any issues, it’s a good practice to home the machine before starting a new job. This ensures that any drift, slippage, or minor misalignment that occurred since the last cycle is corrected, giving you a clean and accurate starting point for your next project.
- After Maintenance or Mechanical Adjustments: Whenever you perform maintenance, such as cleaning, replacing components, or adjusting belts or screws, the alignment of the machine might change. Homing after maintenance helps verify that the system is still aligned correctly and can prevent errors in the next operation.
Regular homing keeps your CNC router in sync with its software and tooling, ensuring accurate and repeatable results. Whether you’re powering up, recovering from a problem, or preparing for a new job, homing is a small step that plays a big role in reliable CNC operation.
Troubleshooting Homing Issues
If your CNC router fails to home correctly, it can disrupt your workflow and lead to positioning errors or machine damage. Understanding common homing issues and how to resolve them is beneficial for maintaining smooth operation. Below are some of the most frequent problems and their possible solutions:
Machine Not Finding the Homing Position
When the CNC router fails to find the homing position, the machine may either not move at all or continue moving endlessly without stopping. This usually indicates that the homing signal isn’t being received, the axis is moving in the wrong direction, or the motion system is obstructed or disconnected. As a result, the machine cannot detect its reference point and will abort the homing process or trigger an alarm. Here are the solution steps:
- Ensure the machine is powered on and fully connected.
- Check that the emergency stop is released and that there are no alarms.
- Verify that each axis is free to move and not blocked by mechanical obstructions.
- Check motor wiring and motor driver functionality.
- Confirm that the axis direction settings in the software are correct.
Limit Switch Failure or Misalignment
If the machine reaches the physical end of travel without stopping, or if the homing process halts prematurely, the limit switches may be damaged, misaligned, or not trigger correctly. In some cases, the switch may be constantly engaged or not trigger at all, preventing accurate homing. Here are the solution steps:
- Visually inspect each limit switch or proximity sensor for physical damage.
- Ensure the switches are securely mounted in the correct position.
- Manually press the switch and observe whether the software registers the input.
- Use a multimeter to test the switch for electrical continuity.
- Replace or realign faulty or non-responsive switches.
Software Configuration Error
Incorrect software settings can prevent proper homing even when the hardware is fully functional. Problems may include reversed axis directions, wrong limit switch pin assignments, incorrect homing order, or improperly set soft limits. Here are the solution steps:
- Open your control software and verify the homing direction settings for each axis.
- Check that the limit switches are assigned to the correct input pins.
- Review and adjust soft limits and homing pull-off values.
- Test individual axis homing commands to isolate the error.
- Save and reboot the configuration to apply the changes.
Steps to Solve Common Homing Errors
To troubleshoot general homing issues effectively, a step-by-step approach is helpful, especially when the root cause isn’t immediately clear. Here are the solution steps:
- Power Check: Confirm that all power supplies and motor drivers are functioning.
- Emergency Stop: Make sure the emergency stop is disengaged and the system is reset.
- Visual Inspection: Look for physical damage, disconnected wires, or sensor misalignment.
- Sensor Testing: Use the software to test if limit switches activate properly.
- Reconfigure Software: Adjust motor direction, limit switch logic, and homing parameters as needed.
- Dry Run: Perform a homing test with the spindle raised and no material loaded to verify safe motion.
- Document Changes: Keep track of any adjustments made for future reference or repeat troubleshooting.
Homing issues typically stem from mechanical misalignment, sensor problems, or incorrect software settings. By systematically diagnosing these areas, you can resolve most errors and ensure your CNC router starts from a known and accurate position, setting the foundation for safe and precise machining.
Best Practices for CNC Homing
Following CNC homing best practices helps prevent positioning errors, reduce wear on components, and improve workflow efficiency. Below are key best practices every CNC operator should follow:
Keep Limit Switches Clean and Secure
Dust, debris, or loose mounting can cause false signals or prevent proper activation during homing. Here are the best practices:
- Regularly wipe down switches and sensors to remove dust, oil, or debris.
- Check for loose screws or brackets that may have shifted due to machine vibration.
- Ensure each switch is positioned correctly to be triggered by the axis end-stop without unnecessary force or delay.
- Perform a quick manual test to confirm that the sensor activates properly when pressed or approached.
Calibrating the Home Position Regularly
Over time, mechanical wear, temperature changes, or vibration may cause slight shifts in the machine’s home position. Regular calibration ensures the machine always references the correct origin. Here are the best practices:
- Set a schedule (e.g., monthly or after major projects) to check and recalibrate the home position.
- Compare the current homing accuracy against a known reference point or fixture.
- Adjust limit switch positions or software offsets if you notice any drift or inconsistency.
- Use precision measuring tools if high accuracy is required.
Using a Consistent Startup Procedure
A standardized startup routine helps maintain consistency and prevents user error. When operators follow different steps each time, it increases the risk of skipped homing, improper tool positioning, or failed job execution. Here are the best practices:
- Power on the machine, then immediately perform a full homing cycle before loading any job files.
- Raise the Z-axis first during homing to avoid tool crashes.
- Confirm that all axes return to the correct home position before moving to job zero or beginning cutting.
- Create a written or digital checklist for operators to follow during startup.
Backing Up Machine Settings After Homing Configuration
Once you’ve properly set up your homing parameters, backing up those settings ensures you can quickly recover from system crashes, firmware updates, or accidental changes. Here are the best practices include:
- Export your machine’s configuration files (e.g., GRBL settings, Mach3 XML files, or controller firmware).
- Store backups in multiple secure locations, such as an external drive and cloud storage.
- Document homing settings like axis directions, homing speeds, and pull-off distances.
- After major changes to homing behavior, update and re-save your backup files.
Homing might seem like a simple task, but doing it consistently and correctly sets the foundation for every successful machining job. By following these best practices in each area, CNC operators can significantly improve machine reliability, safety, and overall cutting precision.
Summarize
CNC router homing is a fundamental process that ensures the machine knows exactly where it is within its working area, allowing for precise, repeatable, and safe operations. By establishing a consistent reference point, homing prevents positioning errors, reduces the risk of collisions, and supports reliable automation. Understanding and following best practices for homing will help you get the most out of your CNC router and maintain consistent machining quality over time.
