Name: Best Selling 1530 5x10 4 Axis CNC Router
Price: 14600.00 USD
Availability: InStock
Rating: 5.00 (4 reviews)

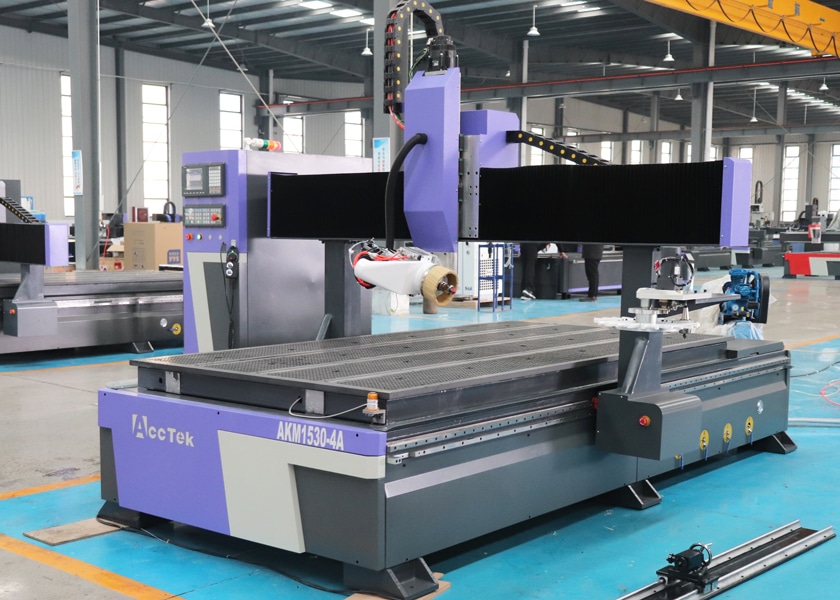

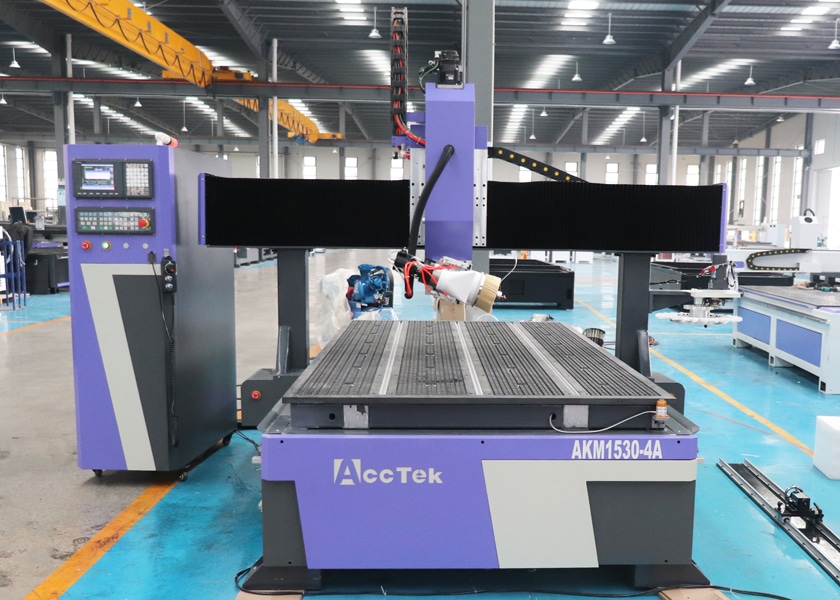

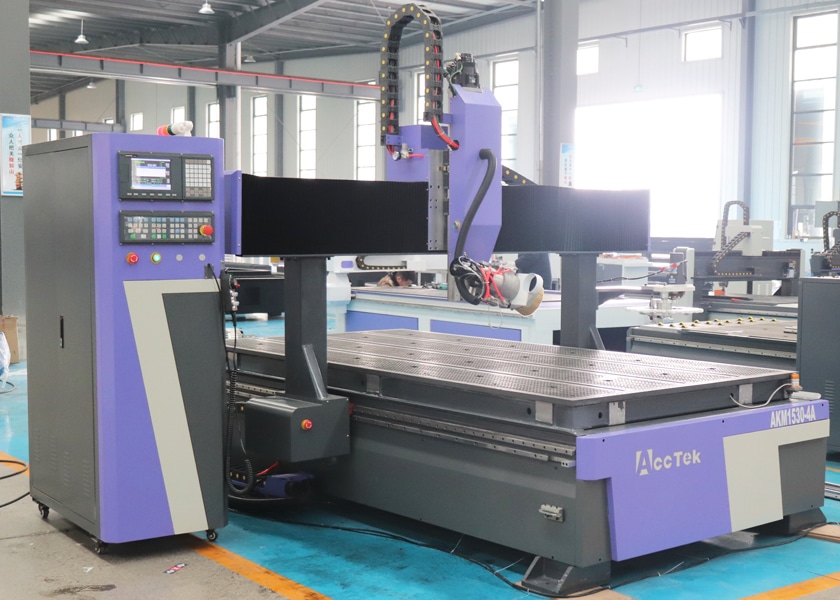

AKM1530-4A CNC Router

Rated 5.00 out of 5 based on 4 customer ratings

(4 customer reviews)

$14,600.00

Model: AKM1530-4A
Barnd: AccTek CNC
Spindle: HQD or HSD
Drive Mode: Leadshine Easy Servo Motor (Optional Delta or Yaskawa Servo Motor) and Driver
Control System: Mach3 or Syntec 610MA-E5

Product Description

The AKM1530-4A CNC router is a high-performance 4-axis machine designed to deliver exceptional precision and versatility for a wide range of industrial applications. Equipped with an air-cooled spindle (HQD or HSD), the AKM1530-4A CNC router ensures efficient, high-speed machining with reliable tool cooling, making it suitable for extended operation. Its powerful motors from renowned brands, combined with a high-quality reducer, guarantee smooth and consistent performance, even under demanding workloads.
The router features Taiwan Hiwin guide rails, known for their precision and durability, enabling accurate movement and reducing maintenance requirements. It is equipped with an intuitive control system, offering users the option of Mach3 or Syntec 60W-E, allowing for seamless programming and execution of complex machining tasks.
The vacuum worktable, paired with a double-stage air pump, ensures materials are securely held in place during processing for increased accuracy. The double-bag dust collector maintains a clean and safe workspace by efficiently capturing dust and debris, while the automatic oil lubrication system ensures the longevity of moving components by reducing friction and wear.
Whether in woodworking, prototyping, or signage production, the AKM1530-4A CNC router delivers unmatched performance, precision, and reliability, making it a valuable tool for demanding industrial environments.

Product Configuration

Air-Cooled Spindle

The machine features an air-cooled spindle, available in HQD or HSD models, known for their high efficiency and precision. These spindles deliver reliable, consistent performance while minimizing heat buildup, ensuring extended operational life. Their robust design supports smooth, quiet operation, making them ideal for high-demand machining tasks.

Taiwan Hiwin Guide Rail

The Taiwan Hiwin guide rail provides exceptional stability and smooth motion for the CNC router. Known for its high precision and low friction, it ensures accurate and reliable movement along all axes. This high-quality guide rail enhances the machine’s overall performance, contributing to longer service life and superior machining results.

Famous Brand Motors

The machine is equipped with high-performance motors from renowned brands for optimal precision and reliability. The X, Y, and Z axes are powered by Leadshine easy servo motors, ensuring smooth and efficient motion control. The A axis features a Japanese Yaskawa servo motor, offering exceptional durability and accuracy for complex movements.

High-Quality Reducer

The machine is equipped with a high-quality reducer that ensures smooth and efficient power transmission. Designed for durability and precision, it minimizes energy loss and reduces mechanical wear, providing long-lasting performance. This premium reducer enhances the overall reliability and accuracy of the machine, even under heavy-duty conditions.

Control System

The machine is equipped with a versatile control system, offering a choice between Mach3 or Syntec 60W-E. Both systems provide intuitive interfaces and powerful processing capabilities, ensuring precise control and seamless operation. These reliable, high-performance control options optimize machining efficiency, enhancing productivity and delivering consistent results.

Vacuum Worktable With Double-Stage Air Pump

The vacuum worktable with a double-stage air pump ensures strong and consistent material fixation during machining. The double-stage air pump provides enhanced suction power, securing workpieces of various sizes with precision. This system improves stability, accuracy, and efficiency, making it ideal for complex cutting and engraving operations on a range of materials.

Double Bag Dust Collector

The double-bag dust collector effectively captures and filters dust and debris generated during machining. With its dual bag design, it ensures superior filtration and longer usage before needing maintenance. This system enhances the working environment by maintaining clean air quality, reducing machine wear, and improving overall efficiency in the workshop.

Automatic Oil Lubrication System

The automatic oil lubrication system ensures optimal performance by continuously distributing precise amounts of lubricant to key machine components. This system reduces friction, minimizes wear and tear, and extends the machine’s lifespan. Its self-regulating nature helps maintain consistent lubrication, improving efficiency and reducing maintenance requirements for seamless operation.

Table Design Selection

Product Features

4-Axis Capability: The machine is equipped with advanced 4-axis functionality, allowing it to handle complex multi-dimensional machining tasks. This feature enables precise cutting, engraving, and 3D operations on a variety of materials.
Air-Cooled Spindle (HQD or HSD): With an Air-Cooled Spindle (HQD or HSD), the machine provides reliable, efficient tool cooling, ensuring consistent cutting performance during extended operations. The air-cooled design eliminates the need for water cooling, reducing overall maintenance costs.
Taiwan Hiwin Guide Rails: The machine features Taiwan Hiwin Guide Rails, known for its exceptional accuracy, rigidity, and long-lasting performance. These high-quality rails ensure smooth, precise movement, even under heavy load, enhancing the router’s overall efficiency and reliability.
Famous Brand Motors: Powered by motors from well-known brands, the machine delivers excellent torque and speed, ensuring smooth and efficient operation across various machining tasks. The motors contribute to superior precision and reliability in high-demand applications.
High-Quality Reducer: The machine is equipped with a high-quality reducer, optimizing power transmission and reducing wear and tear. This enhances cutting precision and allows the machine to maintain consistent performance, even during heavy-duty operations.
Control System (Mach3 or Syntec 60W-E): Featuring a choice of Mach3 or Syntec 60W-E Control System, the machine provides intuitive, precise control over the entire machining process. These systems enable users to easily execute complex designs with high accuracy and flexibility.
Vacuum Worktable with Double-Stage Air Pump: The integrated vacuum worktable, along with a double-stage air pump, securely holds materials in place during machining. This ensures greater precision and stability, particularly when working with delicate or irregularly shaped materials.
Double-Bag Dust Collector: The machine is equipped with a double-bag dust collector, which effectively removes dust and debris during the cutting process. This keeps the workspace clean and helps maintain a safe and healthy environment while reducing maintenance needs.
Automatic Oil Lubrication System: The automatic oil lubrication system ensures continuous lubrication of key moving parts, reducing friction and wear. This feature improves machine longevity and reduces downtime for manual maintenance.

Technical Parameters

Model	AKM1530-4A1	AKM1530-4A2	AKM1530-4A3
Working Area	1500×3000×450mm		1500×3000×500mm
Spindle Type	Air Cooling Spindle
Spindle Power	6.0 KW		9.0 KW
Spindle Rotating Speed	0-18000 rpm
Worktable Type	Vacuum and T-Slot Working Table
X, Y, Z Axis Motor	Leadshine Easy Servo Motor	Delta Servo Motor	Japanese Yaskawa Servo Motor
A Axis Motor	Japanese Yaskawa Servo Motor
Locating Precision	<0.01mm
Working Precision	±0.03mm
System Resolution	±0.001mm
Min Shaping Character	Character: 3x3mm, Letter: 2x2mm
Control System	Mach3 System	Syntec 610MA-E5 System
Working Temperature	5℃-40℃
Working Humidity	30%-75% (Without Condensed Water)

Product Applications

The AKM1530-4A CNC router is engineered to handle a wide range of applications across diverse industries, offering precision and versatility for both small and large-scale production. With its advanced 4-axis capabilities and robust features, it excels in creating complex, multi-dimensional designs. Below are some of the key industries and applications where the machine shines:

Electronics Manufacturing: The machine is perfect for cutting and engraving delicate components used in electronics such as circuit boards, casings, and housing parts. Its precision ensures the accuracy required for micro-scale parts in industries such as consumer electronics and telecommunications.
Automotive Industry: With its powerful motor and precision control, the machine is capable of manufacturing intricate components for the automotive industry. This includes cutting and engraving parts such as trim pieces, dashboard inserts, and custom automotive molds.
Medical Device Production: The machine is highly suited for the production of medical devices and equipment. It can carve, mill, and engrave components used in surgical instruments, prosthetics, and medical device housings, providing the precision needed for safety and compliance.
Prototyping and Product Development: The AKM1530-4A is widely used in prototyping and product development for various industries. It allows engineers and designers to create detailed, functional prototypes quickly and accurately, enabling rapid testing and iteration of new ideas.

Why Choose AccTek CNC?

Enjoy a 1 to 3-year warranty for the entire machine. If any problems occur during the warranty period, major parts (excluding consumables) will be replaced free of charge.

If you need installation or adjustments, we can dispatch technicians to provide you with hands-on assistance to ensure your CNC router is optimally set up.

We offer free lifetime maintenance to ensure your machine remains running at its best for years to come.

Lifetime online technical support is available, and expert help is just a message or call away, ensuring you’re never left stranded if something goes wrong.

Our CNC routers are designed and manufactured by experts who understand the ins and outs of CNC machining, ensuring the highest quality performance.

Our CNC routers offer customization and accessory options, so no matter what your project is, we can provide a solution to meet your unique needs.

Customer Reviews

4 reviews for AKM1530-4A CNC Router

Rated 5 out of 5

Van – 2023-02-20

Thrilled with my AccTek CNC router! It exceeded my expectations in achieving precise processing results for my crafts. This machine is a game-changer, and I’m delighted with the quality and performance. Highly recommend AccTek CNC for your woodworking needs!
Rated 5 out of 5

Samuel – 2023-04-29

Highly satisfied with my CNC router from AccTek CNC! The installation was smooth, and it’s producing excellent results. The machine meets all expectations. Appreciate the ongoing support from AccTek CNC. Highly recommend their products and services.
Rated 5 out of 5

Thomas – 2023-05-15

I am thrilled with my purchase from AccTek CNC! The machine arrived promptly, the assembly was smooth, and it seemed to be in great condition. We were excited to dive into using it for my projects. I appreciate the excellent service. Thanks, AccTek CNC!
Rated 5 out of 5

Henry – 2023-06-25

AccTek CNC has been exceptional in guiding me through my first CNC router purchase. From understanding the technology to learning its operation, their support has been outstanding. I’m thoroughly satisfied with AccTek’s service and would highly recommend them to others.

Add a review

Contact AccTek CNC

At AccTek CNC, we are more than just a CNC router manufacturer, we are your partner in precision machining, productivity, and success. Our commitment is to provide you with not only the highest quality machines but also outstanding service and support at every step. Whether you are new to CNC technology or an experienced operator, our knowledgeable team is ready to assist you.

Our team of knowledgeable professionals is here to assist you with product inquiries, technical support, or custom CNC solutions. Let AccTek CNC empower your business with innovative, reliable, and efficient CNC machinery. Get in touch with us today!

Best Selling 1530 5x10 4 Axis CNC Router
