Name: High-End 4 Axis ATC CNC Router
Price: 20000.00 USD
Availability: InStock

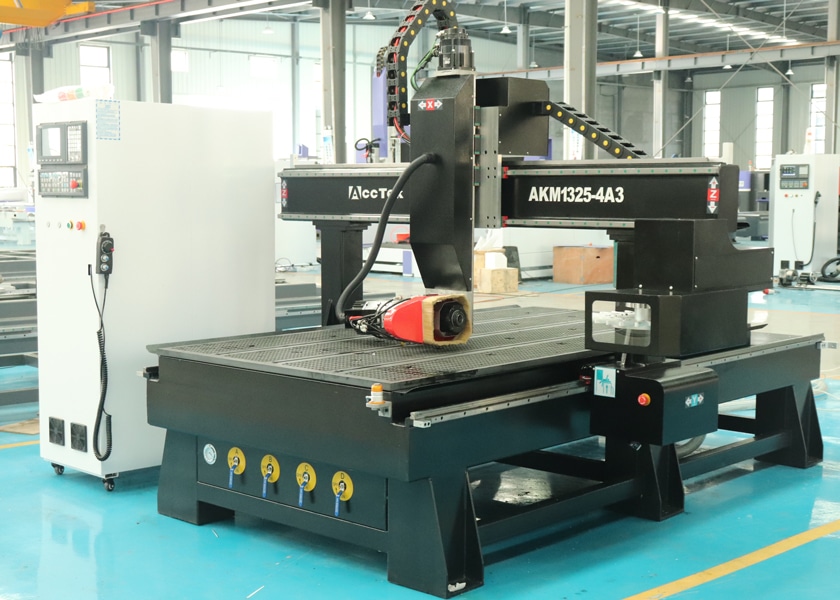

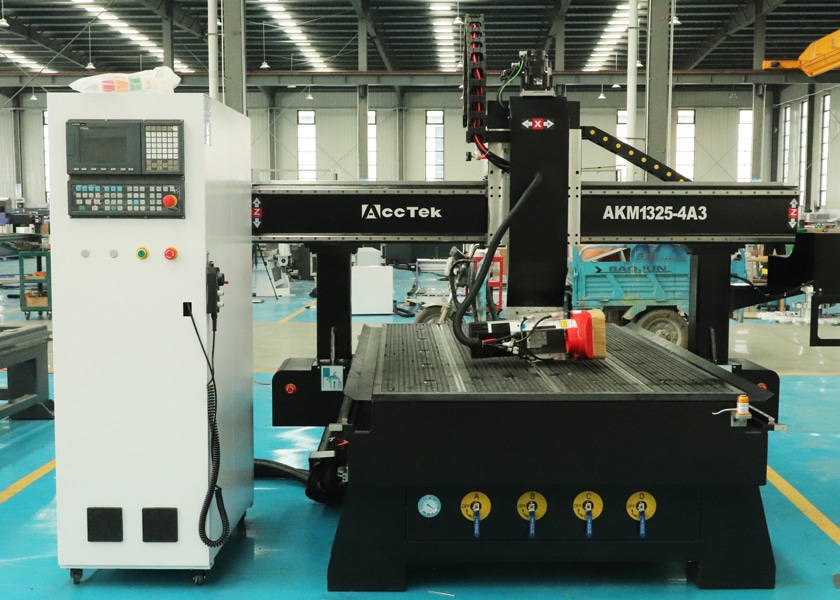

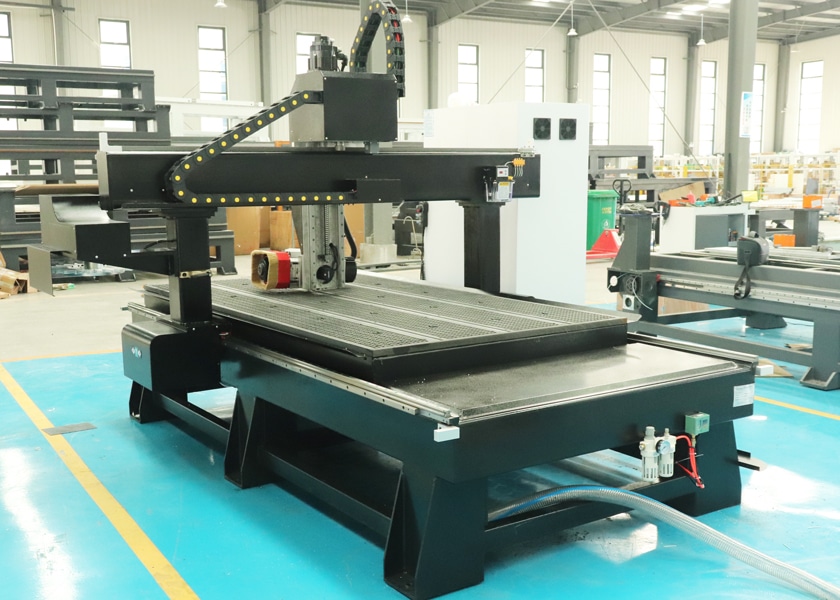

AKM-4A3 CNC Router

$20,000.00

Model: AKM-4A3
Barnd: AccTek CNC
Spindle: HSD
Drive Mode: Yaskawa Delta Motor and Driver
Control System: Syntec 610MA-E5

Product Description

The AKM-4A3 CNC router is a high-performance machine designed for precise and efficient cutting tasks. It features a powerful 9.0KW HSD air-cooled ATC spindle, ensuring smooth and reliable operation for demanding applications. The machine’s X and Y axes are driven by gear transmission, while the Z-axis utilizes a Taiwan TBI ball screw for accurate positioning.
Equipped with a 10-tool carousel changer, the AKM-4A3 CNC router offers seamless tool transitions to maximize productivity. The Syntec 60W-E controller provides user-friendly operation, paired with XYZ axis Japanese Yaskawa servo motors and drivers (850W), enhanced by Japanese Shimpo reducers on the X&Y axes, and a 400W Yaskawa servo motor on the A axis. The Delta inverter and Nabtesco reducer further boost the machine’s performance.
Built for precision, the AKM-4A3 CNC router features Taiwan Hiwin 25 rails, a vacuum table, and a robust 5.5KW double-stage air pump with filtration and pressure relief. Additional features include automatic oil lubrication, a tool sensor, and a 3.0KW double-bag dust collector, ensuring a clean and efficient workspace.

Product Configuration

HSD Air-Cooled ATC Spindle

The machine adopts an Italian HSD air-cooled ATC spindle, which provides precise results and can skillfully execute even complex designs. The ATC function enables fast automatic tool changes, thereby reducing downtime and improving work efficiency. The carefully designed air cooling system effectively dissipates the heat generated during the operation of the spindle, maintains the best working conditions, and extends the service life of the spindle.

Yaskawa Servo Motor

The machine uses Yaskawa servo motors, which can work seamlessly with Yaskawa motion controllers and drives to precisely control speed, position, and torque, resulting in excellent precision and accuracy. The motor offers fast response times and is able to quickly adapt to changes in position and speed, allowing it to handle dynamic and demanding tasks.

Taiwan Hiwin Guide Rail

This machine uses Taiwan Hiwin guide rails, which provide unparalleled stability, ensuring your machine’s motion is rock solid, eliminating vibration, and guaranteeing the accuracy you need. The Hiwin guide rails are durable and focus not only on accuracy but also on durability. It’s built to withstand the rigors of continuous operation, delivering the longevity and reliability professionals rely on.

Well-Known Brand Reducer

The machine is equipped with a well-known brand reducer. We have integrated Shimpo reducers on the X and Y axes, which offer superior reliability and accuracy. On the A-axis, we use a Nabtesco reducer, which ensures unparalleled rotational control. This configuration guarantees excellent performance and precise control, making it the perfect choice for a variety of applications, from woodworking to complex 3D routing.

Taiwan Syntec 610MA-E5 System

The machine is equipped with Taiwan’s Syntec 610MA-E5 system, which provides advanced features for precision machining, automation, and flexibility. It can be a CNC router capable of precisely controlling multi-axis motion, spindle speed, and tool changes. The Syntec 610MA-E5 system features a user-friendly interface, powerful processing capabilities, and good compatibility with a variety of machine types.

Vacuum Worktable With Double-Stage Air Pump

The machine is equipped with a vacuum worktable that ensures the workpiece remains firmly in place throughout the CNC routing process. The powerful vacuum system grabs your material reliably and evenly, preventing unwanted movement and ensuring precise, error-free results. In addition to improving accuracy, vacuum worktables ensure a safe and clean workspace. The pump requires minimal maintenance, saving you valuable time and reducing operating costs, ensuring your CNC router operates at its best for a long time.

Double Bag Dust Collector

The machine features a dual-bag dust collector designed to effectively eliminate dust and debris generated during CNC operations. Equipped with dual collection bags, it ensures complete removal of waste, keeping your workspace clean and your machine running optimally. It’s more than just an accessory, it’s your commitment to cleanliness, air quality, and a more efficient workspace.

Automatic Oil Lubrication System

The machine is equipped with an automatic oil lubrication system that ensures consistent and precise lubrication of critical machine components, reducing wear and friction. Automatic oil lubrication systems eliminate the need for manual lubrication, saving time and reducing the risk of human error. It also provides optimal oil distribution, preventing over or under-lubrication.

Table Design Selection

Product Features

Equipped with a 9.0KW HSD air-cooled ATC spindle, the router delivers reliable, high-speed performance for a variety of cutting and engraving tasks.
The X and Y axes feature gear transmission, while the Z-axis uses a Taiwan TBI ball screw, ensuring precise movements and enhanced accuracy.
The 10-tool carousel tool changer allows for quick and seamless tool changes, optimizing workflow and reducing downtime.
Managed by the Syntec 60W-E controller, the machine offers intuitive operation and precise control, making it suitable for complex machining tasks.
Taiwan Hiwin 25 rails provide robust support and smooth motion, enhancing the machine’s durability and accuracy.
The machine includes a vacuum table with a 5.5KW double-stage air pump, ensuring secure material hold during processing, along with filtration and pressure relief for consistent performance.
The 3.0KW double-bag dust collector keeps the workspace clean and free of debris, promoting a safer and more efficient working environment.
The built-in auto oil lubrication system ensures the machine’s moving parts are well-maintained, extending the machine’s lifespan and reducing maintenance needs.
The integrated tool sensor provides accurate tool length measurement, further enhancing the precision and reliability of the cutting process.

Technical Parameters

Model	AKM1325-4A3	AKM1530-4A3	AKM2030-4A3	AKM2040-4A3
Working Area	1300×2500×500mm	1300×2500×500mm	2000×3000×500mm	2000×4000×500mm
Spindle Type	Air Cooling Spindle
Spindle Power	9.0 KW
Spindle Rotating Speed	0-18000 rpm
Worktable Type	Vacuum and T-Slot Working Table
Drive Motors	Japanese Yaskawa Servo Motor
Locating Precision	<0.01mm
Working Precision	±0.03mm
System Resolution	±0.001mm
Min Shaping Character	Character: 3x3mm, letter: 2x2mm
Control System	Syntec 610MA-E5 System
Working Temperature	5℃-40℃
Working Humidity	30%-75% (Without Condensed Water)

Product Applications

The AKM-4A3 CNC router is ideal for a wide range of applications including woodworking, metalworking, and plastics fabrication. Its high-power spindle and precise control system make it suitable for detailed engraving, intricate cutting, and complex 3D machining. Common uses include creating custom cabinetry, decorative panels, signage, and prototypes. With its versatile tool management and robust construction, the AKM-4A3 CNC router excels in both small-scale production and large manufacturing environments, providing exceptional accuracy and efficiency for diverse material processing needs.

Why Choose AccTek CNC?

Enjoy a 1 to 3-year warranty for the entire machine. If any problems occur during the warranty period, major parts (excluding consumables) will be replaced free of charge.

If you need installation or adjustments, we can dispatch technicians to provide you with hands-on assistance to ensure your CNC router is optimally set up.

We offer free lifetime maintenance to ensure your machine remains running at its best for years to come.

Lifetime online technical support is available, and expert help is just a message or call away, ensuring you’re never left stranded if something goes wrong.

Our CNC routers are designed and manufactured by experts who understand the ins and outs of CNC machining, ensuring the highest quality performance.

Our CNC routers offer customization and accessory options, so no matter what your project is, we can provide a solution to meet your unique needs.
