In the world of CNC machining, efficiency and precision are key to meeting production demands. Multi-head CNC routers have become a popular solution for manufacturers aiming to boost productivity without expanding floor space. These machines are widely used in woodworking, signage, cabinet making, and other industries that demand efficiency and high output. However, not all multi-head configurations function the same.
Two primary configurations dominate the market: linked multi-head CNC routers and independent multi-head CNC routers. While both are designed to enhance production capabilities, they operate in fundamentally different ways. This article explores the key differences between these two configurations, helping you understand how each system works, what they’re best suited for, and which one aligns with your specific production needs.
What Are Multi-Head CNC Routers?

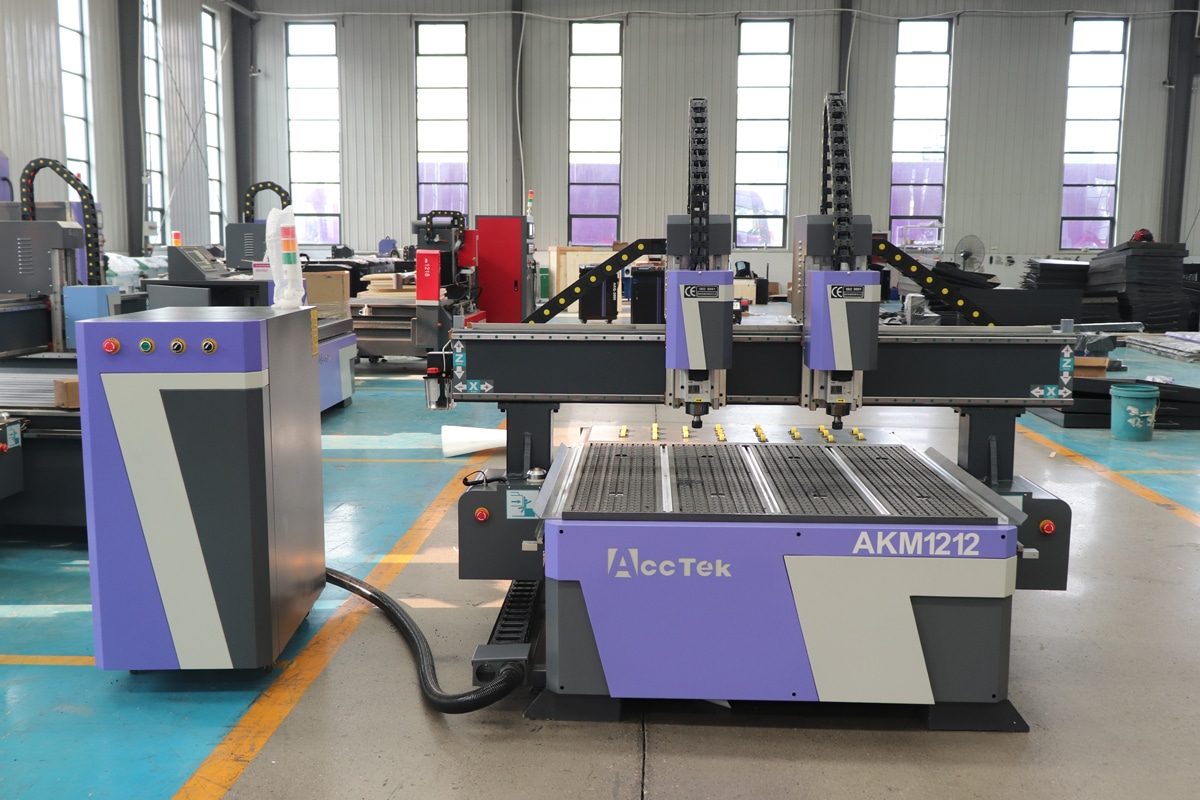

A multi-head CNC router is a type of computer-controlled cutting machine that features two or more spindle heads mounted on the same frame or gantry. These heads can either move in unison or independently, depending on the machine’s configuration. Controlled by a central software system, each head can be programmed to follow a toolpath, allowing multiple cuts or engravings to be performed at the same time. This parallel processing significantly reduces the time required for repetitive tasks and increases output capacity.
Multi-head CNC routers are widely used in industries such as woodworking, sign making, furniture manufacturing, and plastic or foam fabrication. Whether you’re duplicating designs across multiple panels or creating complex components in a single setup, multi-head CNC routers are a powerful solution for boosting throughput while maintaining precision and consistency. Additionally, they can reduce labor costs by minimizing the need for manual handling between tasks. For businesses with limited floor space, using one multi-head machine is often more efficient than running several single-head machines.
Linked Multi-Head CNC Routers
Linked multi-head CNC routers are machines in which multiple cutting heads are mounted on the same gantry and operate simultaneously along a shared toolpath. The entire system is governed by a single control unit, ensuring synchronized operation across all heads. Here are its details:
Key Features
Linked multi-head CNC routers are designed with a focus on speed, synchronization, and repeatability. These machines feature multiple spindles that work together along a shared path, making them ideal for high-volume production of identical parts.
- Synchronized Movement: All spindles on a linked multi-head CNC router move in unison, following the exact same toolpath. This synchronized operation ensures that identical shapes, patterns, or cuts are produced simultaneously on multiple workpieces. The coordination is managed through a single control program, simplifying the overall operation.
- Fixed Head Spacing: The spindles are mounted at set distances along the gantry, and this spacing is typically non-adjustable. This design ensures that multiple workpieces can be processed in parallel as long as they are uniformly spaced and sized according to the fixed layout.
- Single Program Control: Only one machining program is required to control all heads, making it easier to set up and run production. Operators don’t need to generate separate toolpaths for each spindle, which saves time during programming and reduces the risk of errors.
- Shared Toolpath: These CNC routers excel in batch production scenarios, ideal for duplicating a single design across multiple workpieces in one pass. Each head duplicates the design exactly, maintaining consistency across all pieces.
Advantages
When it comes to mass-producing uniform components, linked multi-head CNC routers offer clear operational benefits. Their synchronized functionality enables multiple workpieces to be processed simultaneously, streamlining production and reducing both time and labor.
- High Efficiency for Mass Production: Linked heads can produce several identical items in a fraction of the time it would take using a single-head machine. This parallel operation is ideal for mass production, reducing the machining time per unit and increasing overall throughput.
- Cost-Effective Setup: Since all heads operate from a single control program and share the same motion path, the system is simpler and more affordable than complex multi-axis setups. It’s an economical choice for businesses that need to produce large quantities of identical products without investing in multiple standalone machines.
- Simplified Programming and Operation: With only one toolpath required for all heads, programming is straightforward and user-friendly. Operators spend less time setting up jobs and can focus more on production. This makes the machine suitable even for beginners.
- Space-Saving Alternative: Instead of running multiple single-head routers side by side, a linked multi-head system consolidates operations into a single footprint. This is especially beneficial for workshops with limited space.
Limitations
Despite their strengths, linked multi-head CNC routers are not without constraints. Before investing in this type of machine, it’s important to understand its limitations.
- Lack of Flexibility: Since each head moves in sync along the same toolpath, they cannot perform different tasks or handle parts of varying shapes or sizes within the same run.
- Fixed Workpiece Layout: The distance between heads determines the required layout of workpieces, which limits adaptability to different sizes or patterns.
- Not Ideal for Custom Jobs: Since all heads must follow the same path, customization or varied part production is not possible within the same cycle.
Linked multi-head CNC routers are best suited for high-volume, repetitive manufacturing tasks where identical parts are required. Their speed, efficiency, and ease of use make them an excellent choice for businesses focused on batch production and standardized product lines. However, they are not designed for applications that require flexibility or diverse outputs in a single run.
Independent Multi-Head CNC Routers
Independent multi-head CNC routers feature multiple spindles mounted on the same machine, but unlike linked systems, each head operates independently by its own program. Here are its details:
Key Features
Independent multi-head CNC routers are designed for maximum versatility in complex production environments. Before exploring how this configuration can enhance productivity, it’s essential to understand the key features that define its performance and capabilities.
- Independent Head Movement: Each spindle can move and operate on its own, allowing for unique operations to be carried out.
- Multi-Process Capability: Operators can assign different toolpaths or machining instructions to each head, enabling multi-process or multi-design tasks in one cycle.
- Custom Layout Capability: The spacing and positioning of materials can vary depending on the task assigned to each head, offering flexibility in job setup.
Advantages
When flexibility and multi-tasking are top priorities, independent multi-head CNC routers offer a distinct advantage. The following section highlights the key benefits that make independent multi-head systems a powerful choice for adaptable, high-efficiency operations.
- Exceptional Flexibility: Independent heads can perform different operations, allowing you to cut, engrave, drill, or mill various parts in a single cycle. This flexibility is ideal for workshops that produce a wide range of products or require frequent job changes.
- Reduced Setup and Changeover Time: With the ability to handle multiple operations or part designs in one go, there’s no need to frequently change tools, re-align materials, or reprogram the machine for every variation. This reduces downtime and increases output.
- Enhanced Workflow Efficiency: By combining multiple operations into one setup, independent heads reduce the need for multiple machines or re-positioning of parts between stages. This streamlined workflow improves overall shop efficiency and reduces operator intervention.
- Better Space Utilization: Independent multi-head routers consolidate multiple functions into one machine, reducing the need for several single-purpose machines. This is especially beneficial for workshops with limited floor space that still need to accommodate diverse manufacturing tasks.
Limitations
Despite their impressive capabilities, independent multi-head CNC routers are not without challenges. From higher costs to increased operational complexity, there are important trade-offs to consider.
- Higher Initial Cost: Independent multi-head machines are more expensive due to their complex control systems and motion capabilities. This may not be cost-effective for businesses focused solely on producing identical parts in large volumes.
- Complex Programming and Operation: Each head needs its own toolpath and settings, which increases programming time and complexity. For less experienced operators, the learning curve can be steep.
- Increased Maintenance Requirements: With more components and separate control mechanisms for each spindle, these machines require more frequent and detailed maintenance.
Independent multi-head CNC routers are built for flexibility, precision, and multi-tasking. They’re ideal for manufacturers who need to handle varied product designs. While they come at a higher cost and require more advanced skills to operate, their adaptability and productivity make them a valuable investment for businesses that prioritize versatility and complex job processing.
Application Scenarios
Choosing between linked and independent multi-head CNC routers largely depends on your production goals, job variety, and workflow requirements. Each configuration excels in specific environments, and understanding where they perform best can help you make a smarter investment.
When to Choose Linked Multi-Head CNC Routers
Linked multi-head CNC routers are best suited for production environments where speed, consistency, and large-batch output are top priorities. Since all spindles follow the same toolpath and operate in sync, these machines excel at producing multiple identical parts simultaneously, making them ideal for businesses focused on standardization and high-throughput manufacturing. Typical scenarios include:
- Signage production: Engraving or cutting multiple identical letters, logos, or designs from materials like acrylic, PVC, or MDF.
- Cabinet door manufacturing: Mass-producing uniform cabinet panels or decorative woodwork.
- Wooden panel processing: Carving identical patterns into wood panels used in flooring, wall decoration, or furniture fronts.
- Engraving nameplates or labels: Producing dozens or hundreds of identical engraved pieces in one cycle.
Linked multi-head CNC routers are ideal for manufacturers who prioritize high-efficiency batch production and don’t require frequent design changes or complex customization in their daily operations.
When to Choose Independent Multi-Head CNC Routers
Independent multi-head CNC routers are the ideal solution for manufacturing environments that demand flexibility, customization, and multi-process capabilities. Unlike linked systems, each head operates autonomously, enabling you to perform different operations or machine diverse parts simultaneously within a single setup. Typical scenarios include:
- Furniture workshops: Producing different components like drawer fronts, legs, and tops in one pass.
- Custom cabinetry and interior design: Handling varied panel sizes and design requirements in a single batch.
- Prototyping or small-batch jobs: These machines allow you to switch between different designs quickly, making them perfect for prototyping, low-volume manufacturing, or handling unique customer requests.
- Mixed-material projects: If you process different materials or require specialized tooling for each task, independent heads can be configured to suit the needs of each part individually.
- Varied or custom parts: If your production includes different shapes, sizes, or machining operations, independent heads provide the flexibility to process all in one pass.
Independent multi-head CNC routers are the right choice for manufacturers who prioritize versatility and quick changeovers, especially in workshops dealing with diverse orders, frequent design updates, or multi-step machining processes.
Which One Is Right for You?
When deciding between a linked and independent multi-head CNC router, it’s important to evaluate your needs from several practical angles: production volume and variety, budget, operator skill level, control system compatibility, and workshop layout. Here’s how each configuration performs across these criteria:
Production Volume
- Linked Multi-Head CNC Routers: Best for high-volume production. They excel in batch processing of identical parts—ideal for mass manufacturing with repetitive tasks and standardized products.
- Independent Multi-Head CNC Routers: Ideal for low to medium volume production. Each head can perform a different task, making the system suitable for producing diverse parts or customized orders in a single cycle.
Budget Constraints
- Linked Multi-Head CNC Routers: More cost-effective. Lower upfront investment due to simpler mechanics and a shared control system. Better suited for businesses focused on affordability and efficiency.
- Independent Multi-Head CNC Routers: Higher cost, both in initial investment and long-term maintenance. However, the added flexibility and productivity for mixed workflows may justify the expense for businesses that value adaptability.
Skill Level and Control System Compatibility
- Linked Multi-Head CNC Routers: Easier to operate and program. A single toolpath controls all heads, so even operators with basic CNC experience can manage production effectively.
- Independent Multi-Head CNC Routers: Requires advanced skillsets. Programming multiple toolpaths and managing asynchronous operations demands more experience and familiarity with complex CNC software systems.
Space and Layout Considerations
- Linked Multi-Head CNC Routers: Since all heads move in sync and follow the same toolpath, the workpieces must be identical in size and evenly spaced to match the fixed spindle positions. This limits flexibility but allows for quick setup in batch production environments.
- Independent Multi-Head CNC Routers: Each spindle can process different parts in different positions, allowing you to place varied shapes, sizes, or materials anywhere on the table. This layout versatility is ideal for mixed production runs or multi-process jobs, but it does require careful planning and more complex programming to ensure each head operates within its designated workspace without interference.
By evaluating your current workflow and long-term objectives, you can confidently choose the CNC router configuration that enhances efficiency, meets your production goals, and maximizes your return on investment.
Summarize
Both linked and independent multi-head CNC routers offer distinct advantages depending on your production needs. Linked systems are ideal for high-volume, repetitive tasks that require greater speed and consistency, while independent systems provide the flexibility to handle diverse designs and multi-process operations within a single setup. By considering factors such as production volume, job variety, budget, operator skill level, and workspace layout, you can choose the configuration that best aligns with your manufacturing goals and ensures greater efficiency and return on investment.
