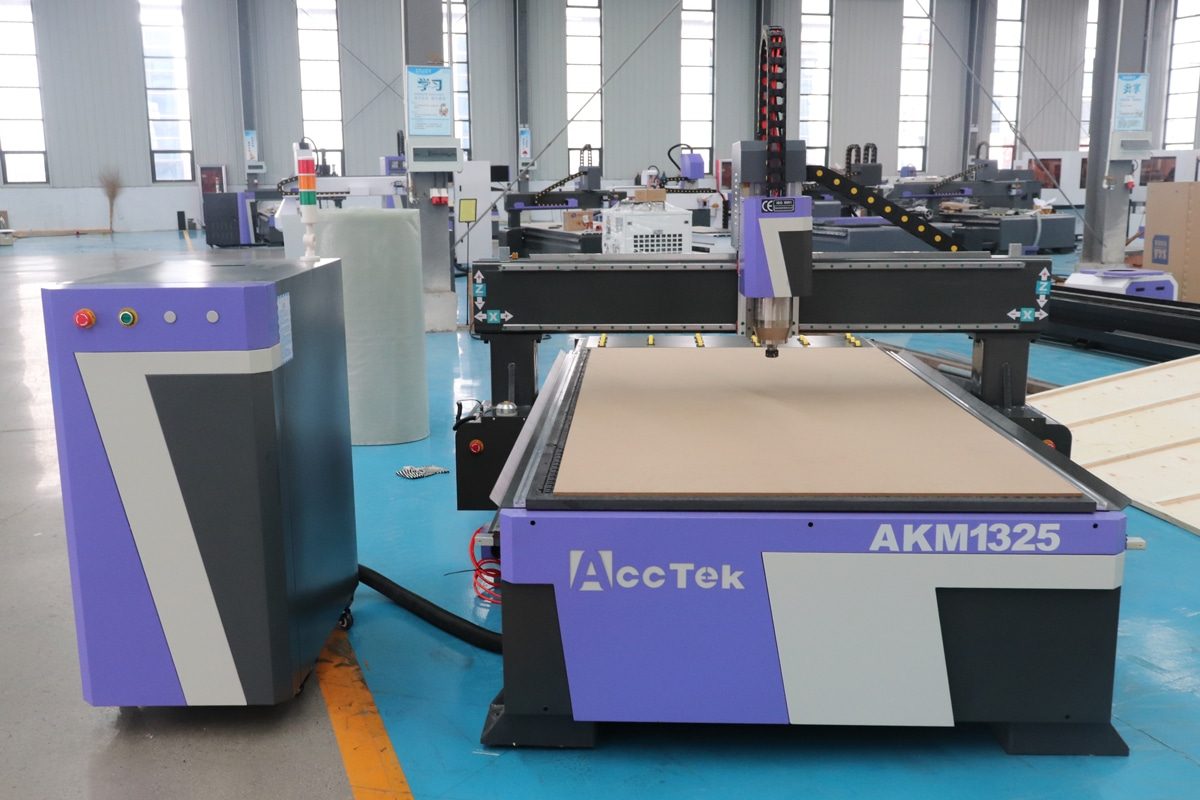

CNC routers are powerful tools for woodworking, offering precision and repeatability that traditional tools can’t match. However, even with advanced machinery, common issues like tearing and burning can ruin a workpiece, waste material, and compromise the final product’s quality. Tear-out can leave rough, splintered edges, while burning causes unsightly scorch marks and can damage both the wood and the cutting bit.
Fortunately, with the right techniques and adjustments, you can significantly reduce or even eliminate these issues. In this article, we’ll explore the reasons behind tear-out and burning during CNC routing and provide practical tips to help you minimize or eliminate these issues altogether. Whether you’re a beginner or a small business owner working with wood, these insights will help you optimize your CNC routing process for better outcomes.
Understanding Tearing and Burning
When CNC routing wood, achieving a clean cut is the primary goal, but issues like tearing and burning can quickly disrupt the process. To effectively prevent these problems, first understand what they are.
What Is Tear-Out?
Tear-out is a common defect that occurs when wood fibers are forcefully pulled or torn away from the surface during the cutting process, rather than being cleanly sliced. Tear-out can be identified through several clear visual signs on the wood surface:
- Rough or Splintered Edges: Instead of a smooth, clean cut, the edge appears jagged or frayed, especially on plywood or hardwoods.
- Chipped Grain at Entry or Exit Points: Small chunks or layers of wood may be missing where the bit enters or exits the material, particularly across the grain.
- Delaminated Layers: In plywood or laminated boards, the outer veneer may peel or lift away due to improper cutting.
- Inconsistent Surface Finish: Sections along the cut path may look fuzzy, uneven, or torn, disrupting the uniformity of the finish.
- Cracks or Breaks Along the Edge: Small cracks can form where the wood fibers have been forcefully pulled apart instead of sheared cleanly.
These signs not only affect appearance but may also compromise fit and function in precise woodworking applications.
What Is Burning?
Burning occurs when excessive heat builds up during the CNC routing process, causing the wood to scorch along the cut edges. Burning during CNC routing is usually easy to detect through several visual, olfactory, and performance-related indicators:
- Darkened or Scorched Edges: The most obvious sign is black or deep brown discoloration along the cut edges, especially on light-colored woods.
- Burnt Smell: A sharp, smoky odor lingers on the material and in the workspace, indicating excessive heat during cutting.
- Resin Buildup on the Bit: Burned cuts often result in sticky resin or pitch accumulating on the router bit, reducing its cutting efficiency.
- Visible Smoke During Operation: Excessive friction from a dull bit or slow feed rate can cause visible smoke while routing.
- Reduced Cut Quality: Edges may feel rough to the touch or look overly polished due to heat sealing the fibers instead of cutting them cleanly.
Identifying and addressing these signs promptly helps maintain both the quality of your work and the longevity of your tools.
Causes of Tear-Out and Burning When CNC Routing Wood
Tear-out and burning may seem like simple surface issues, but they often stem from deeper problems in the routing setup, tooling, material, and machine parameters. Understanding these underlying causes is beneficial for making the right adjustments and improving the quality of your CNC woodworking projects. Below are the primary factors that contribute to these defects:
Material Factors
- Wood Species and Grain Direction: Softwoods, hardwoods, plywood, and MDF all respond differently to routing. For example, plywood tends to splinter at the edges, and hardwoods like oak may tear when cut across the grain.
- Moisture Content: Dry wood is more brittle and prone to tear-out, while overly moist wood may cause excessive resistance, increasing the risk of burning.
- Resin or Oil Content: Woods like pine, cherry, and teak have natural resins that can burn easily when heat builds up.
Tooling Factors
- Dull or Worn Bits: A bit with a dull edge tends to rip through wood fibers instead of slicing cleanly, causing tear-out. It also increases friction, leading to burning.
- Incorrect Bit Type: Using the wrong type of bit, such as a straight bit when a spiral or compression bit is needed, can worsen cutting quality and increase fiber damage.
- Poor Bit Quality: Bits made from low-grade steel dull quickly and struggle to maintain a clean cutting edge. Uncoated bits are more likely to overheat and leave burn marks, especially during long cuts or when cutting resinous woods.
- Bit Build-Up: Resin and debris stuck on the bit reduce cutting efficiency, making the tool work harder and increasing heat. Fouling also throws off the bit’s balance, which can worsen tear-out due to vibration.
Machine and Feed Parameters
- Improper Spindle Speed (RPM): Too high of an RPM can cause heat buildup and burning, while too low may lead to rough cuts and tear-out.
- Inadequate Feed Rate: A slow feed rate increases contact time between the bit and the wood, generating excessive friction and heat. A fast feed rate, on the other hand, can cause the bit to tear rather than cut.
- Too Deep a Pass: Cutting too much material in one pass creates stress on the fibers and can rip them out or cause the bit to overheat.
Workholding and Support
- Insufficient Clamping: If the workpiece shifts during routing, it can cause uneven cuts, chatter, and tear-out.
- Lack of Backing Board: Without support on the exit side of the cut, wood fibers may splinter as the bit exits the material.
- Vibrations and Machine Instability: Poorly leveled or unstable machines can vibrate during operation, increasing the likelihood of imprecise cuts and surface damage.
Understanding these causes helps you diagnose the root of the problem and apply targeted solutions. In the following sections, we’ll look at specific strategies to prevent tear-out and burning by adjusting your setup, selecting the right tools, and refining your cutting parameters.
Preventing Tear-Out When CNC Routing Wood
Tear-out can ruin an otherwise precise CNC woodworking job by leaving rough, splintered edges or chipped surfaces. With the right techniques and preparation, it’s possible to minimize or completely prevent tear-out. Here are key strategies to help you achieve smoother, cleaner cuts:
Choose the Right Cutting Tool
- Use Compression Bits: These bits combine up-cut and down-cut flutes, pressing fibers toward the center of the material and reducing tear-out on both surfaces. They’re especially ideal for plywood and laminated boards.
- Select Proper Bit Geometry: For single-sided tear-out prevention, use down-cut bits for a clean top edge and up-cut bits for a clean bottom edge.
- Match Bit Size and Flute Count to the Job: Larger diameter bits offer more rigidity and cleaner cuts on thick materials. Two-flute bits provide a good balance of strength and chip evacuation, while three-flute bits can improve finish quality on softer woods.
- Ensure Sharp, High-Quality Bits: Always use sharp, carbide-tipped or solid carbide bits from reputable manufacturers.
Optimize Cutting Parameters
- Shallow Passes: Take multiple shallow passes to gradually remove material instead of one deep cut. This reduces stress on the wood fibers and results in cleaner edges.
- Set the Correct Feed Rate and RPM: Use manufacturer-recommended settings or test to find a balance where the bit cuts smoothly without tearing. Too slow or too fast can lead to rough cuts.
- Climb Cutting Where Appropriate: While not suitable for every situation, climb cutting (cutting with the bit rotation) can reduce tear-out on some materials by shearing fibers more cleanly.
- Reduce Plunge Rate: Slowing the plunge rate helps the bit enter the wood more gently, minimizing the chance of splintering.
Support the Material Properly
- Use a Backing Board (Sacrificial Layer): Placing a scrap piece of wood beneath your workpiece helps support the bottom fibers as the bit exits the material. This reduces bottom-side tear-out, particularly on plywood and laminated panels.
- Tape the Cutting Area: Masking or painter’s tape over the cut line can help hold wood fibers in place, particularly on veneered surfaces or plywood.
- Clamp Securely: Ensure the workpiece is firmly clamped to prevent movement and vibration, which can contribute to tear-out. Use multiple clamps or vacuum tables for even pressure distribution.
- Edge Support for Small Parts: For small or narrow parts, add support blocks or tabs around the edges to keep them stable and minimize shifting during tool movement.
Work with the Grain
- Plan the Cutting Path: Whenever possible, orient your toolpath to cut with the grain rather than against it. Cutting against the grain increases the risk of fiber separation.
- Test on Scrap: Before cutting your final piece, test your settings on a similar scrap to identify any areas prone to tear-out and adjust accordingly.
Preventing tear-out is a combination of choosing the right tools, optimizing your settings, and supporting the material correctly. With proper attention to detail, you can achieve crisp, clean cuts that enhance the quality and appearance of your CNC-routed wood projects.
Preventing Burning When CNC Routing Wood
Burning during CNC routing not only leaves unattractive scorch marks on your workpiece but can also damage your router bits and reduce cutting efficiency. Burning is preventable with the right techniques and adjustments. Here are key strategies to help you achieve clean, burn-free cuts:
Use Sharp, Clean Bits
- Maintain Bit Sharpness: Dull bits crush and rub rather than cut cleanly, generating more friction and heat. Replace or sharpen bits regularly.
- Clean Off Resin and Pitch: Wood resins, especially from pine and cherry, can stick to the bit. Clean with a solvent to ensure smooth cutting and better heat dissipation.
Optimize Feed Rate and Spindle Speed
- Avoid Slow Feed Rates: Moving too slowly causes the bit to linger in one spot, increasing friction and heat. Increase the feed rate to maintain chip load and cooling effect.
- Match RPM to Material: Too high of a spindle speed can cause heat buildup. Test and adjust your RPM to suit the wood type and bit size.
- Suggested RPM and IPM Ranges: As a general rule, softwoods tolerate faster feed rates (100–150 IPM) with spindle speeds of 16,000–20,000 RPM, while hardwoods like cherry or maple require slower RPMs (12,000–16,000) and more moderate feed rates (80–130 IPM) to avoid burning.
Improve Chip Removal and Airflow
- Ensure Effective Dust Extraction: Poor chip evacuation traps heat and chips near the cutting area. Use a strong dust collection system or air assist to keep the path clear.
- Use Air or Mist Cooling: Blowing air or a light mist at the cut zone helps dissipate heat, especially during long or deep cuts.
- Spindle Fan or Water Cooling: Ensure your spindle motor itself is properly cooled. An overheating spindle can radiate heat downward into the bit, contributing to burning even when feed rates and RPM are appropriate.
Choose the Right Wood
- Watch for Resinous or Oily Woods: Woods like cherry, pine, and maple are more prone to burning. Use sharper bits, faster feed rates, and possibly coated bits to manage heat.
- Pre-Test Your Settings: Run test cuts on scrap pieces to identify any tendencies for burning and fine-tune accordingly.
With the right combination of sharp tools, proper machine settings, and good chip management, you can effectively prevent burning and achieve cleaner, more professional results in your CNC wood routing projects.
Material-Specific Tips
Preventing tearing and burning in CNC routing requires understanding how different types of wood respond to cutting. By tailoring your approach based on material type and practicing cautious preparation, you can greatly improve cut quality. Here are key perspectives:
MDF vs. Plywood vs. Hardwoods
MDF (Medium-Density Fiberboard) is very uniform and doesn’t have a grain structure, which makes it less prone to tear-out. However, it burns easily, especially during slow or deep cuts. Use sharp carbide bits, higher feed rates, and shallow passes, and ensure strong dust extraction to manage heat and debris.
Plywood is made of layered veneers, and its top and bottom surfaces are especially prone to tear-out. Use compression bits to cleanly cut both sides, apply masking tape over cut lines, and use sacrificial backing to support the material. Avoid deep cuts in a single pass to reduce edge damage.
Hardwoods like oak, maple, and walnut are dense and prone to both tear-out and burning, especially when cutting across the grain. Use sharp, appropriate bits (e.g., down-cut or compression), reduce spindle speed to limit heat, and take multiple light passes to maintain edge quality.
Exotic Woods and Resinous Woods
Exotic woods such as rosewood, padauk, or purpleheart often have unpredictable grain, variable hardness, and oils that increase the risk of burning. Use sharp, high-quality bits, slower RPMs, and increased chip removal to prevent friction buildup.
Resinous woods like pine, cedar, and cherry contain natural sap or resin that heats up quickly, leading to burning and bit fouling. Use fast feed rates, lower spindle speeds, and ensure the cutting area stays clean and cool with air assist or strong dust collection.
Pre-Testing on Scraps
Before starting any project with a new material, test on scrap pieces of the same type and thickness. This allows you to fine-tune feed rate, RPM, pass depth, and bit selection without risking your final workpiece. Testing helps you identify potential for tear-out or burning, and gives you the opportunity to make adjustments in a low-risk setting. It’s a simple step that can save time, tools, and material in the long run.
Adjusting your approach based on material properties and taking the time to test in advance, you can significantly reduce common CNC routing issues and ensure cleaner, professional results.
Maintenance and Machine Calibration
Proper maintenance and machine calibration are helpful for consistent woodworking CNC router performance and for preventing issues like tear-out and burning. By focusing on specific areas of your CNC machine, you can keep it running at peak performance. Here are key maintenance tasks to prioritize:
- Keep the Machine Clean and Lubricated: Dust and debris buildup can affect both precision and cooling. Regularly clean the machine’s rails, bearings, and lead screws to prevent resistance or uneven motion. Lubricate moving components according to the manufacturer’s schedule to ensure smooth, consistent movement during cutting.
- Check and Calibrate Spindle RPM: An inaccurate spindle speed can lead to excessive friction or rough cuts. Use a tachometer or built-in diagnostics to verify actual spindle RPM matches your programmed settings. Calibrate or service the spindle if there’s a mismatch, and listen for unusual noise or vibration during operation.
- Spindle Alignment Checks: A misaligned spindle can cause uneven cuts, inconsistent depths, and increased tool deflection. Periodically check the spindle’s vertical alignment using a dial indicator or tramming gauge. If you detect any tilt or offset, adjust the spindle mount until it’s perfectly square to the work surface.
- Routine Bit Inspection and Replacement: Before each job, inspect your bits for signs of wear, such as chipped edges, dull surfaces, or excessive buildup of resin or dust. Clean the bits thoroughly and replace them as soon as they lose their sharpness.
- Inspect and Align Tool Holders and Collets: Worn or dirty collets can cause bit wobble, affecting cut quality and increasing heat buildup. Clean collets regularly, and replace them if they show signs of wear or looseness. Ensure bits are seated properly and tightened to the correct torque.
- Verify Axis Calibration and Squareness: Misaligned axes can lead to uneven cuts and inconsistent pass depths, contributing to both tear-out and burning. Periodically check that all axes are square to one another and that the Z-axis delivers consistent depth across the work area.
- Monitor Toolpath Accuracy: Inaccurate steps or backlash in the motion system can cause the bit to veer off course. Perform regular backlash compensation and step calibration to maintain precision. If you notice irregular cuts or chatter, check belt tension (if applicable) and servo or stepper motor performance.
A well-maintained and properly calibrated CNC wood machine not only prevents cutting issues but also extends the life of your tools and equipment. Building maintenance and calibration into your regular workflow is a smart investment in both quality and reliability.
Summarize
Tearing and burning are common challenges in CNC wood routers, but with the right approach, they can be effectively minimized or completely avoided. Choosing the appropriate bit, adjusting feed rate and spindle speed, supporting the workpiece properly, and maintaining your equipment are all essential practices for preventing these issues. Additionally, testing on scrap material and tailoring your approach to different wood types can help fine-tune your process. By continuing to read “What is the Best Wood for CNC Routing?” you can ensure smooth operation and high-quality results
