How to Maintain and Troubleshoot the ATC CNC Router?

August 14, 2025
12-16 Min Read

An ATC CNC router with an automatic tool changer is a powerful asset for modern manufacturing, offering speed, precision, and efficiency by automatically switching tools during the machining process. However, to keep it running smoothly and avoid costly downtime, the machine needs regular maintenance and effective troubleshooting. Like any high-performance machine, an ATC CNC router contains complex mechanical and electronic components that require attention to detail.

This article explains how to maintain and troubleshoot an ATC CNC router properly. It outlines routine maintenance tasks, highlights common issues like tool change failures and spindle errors, and provides step-by-step troubleshooting solutions. Whether you’re a machine operator or technician, understanding these best practices will help you extend your machine’s lifespan, reduce unplanned stoppages, and ensure consistent cutting performance.

Understanding ATC CNC Routers

Before diving into maintenance and troubleshooting, it’s important to understand the basic structure and functionality of an ATC CNC router. Understanding how the key components work together helps users identify problems more quickly and maintain the machine more effectively.

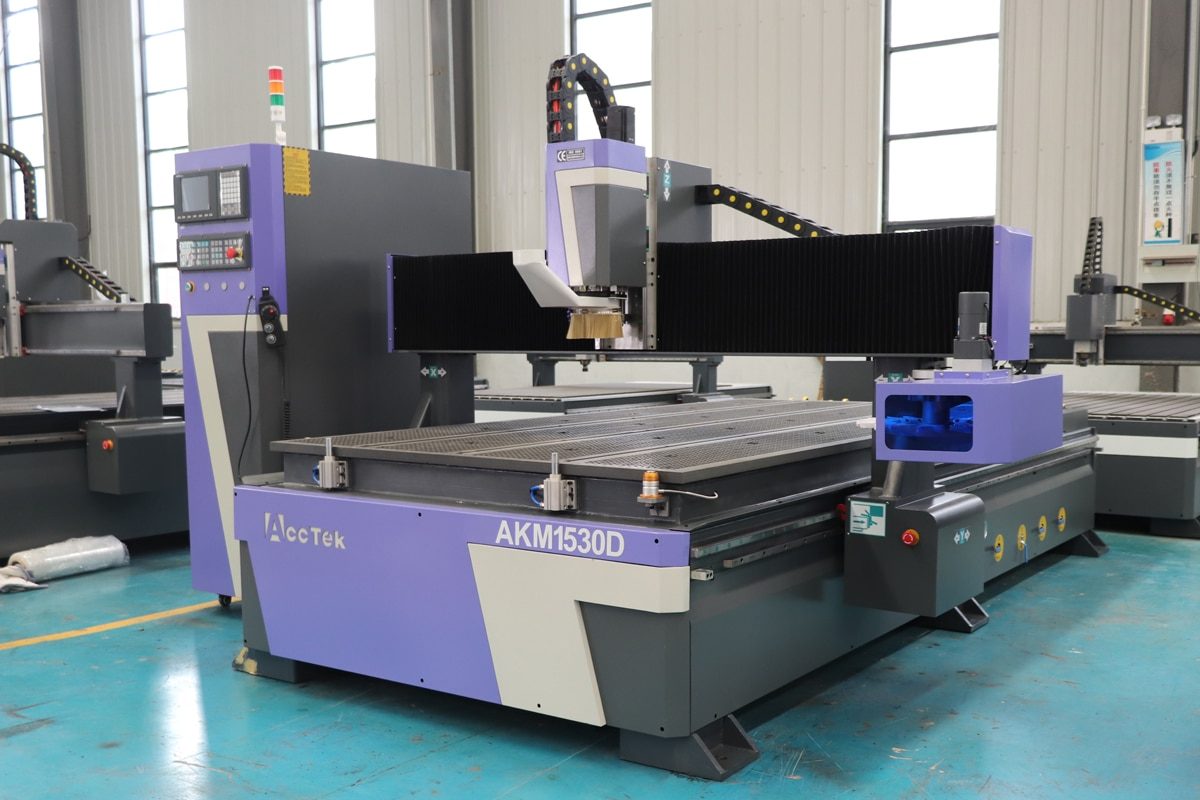

What Is an ATC CNC Router?

An ATC CNC router, or Automatic Tool Changer CNC router, is a computer-controlled machine designed to perform a variety of cutting, engraving, and shaping tasks with the added ability to automatically switch between multiple tools during operation. At the core of its functionality is the automatic tool-changing system, which stores multiple tools in a built-in magazine and allows the machine to select and swap tools as needed, based on the programmed cutting path.

Unlike standard CNC routers that require manual tool changes, ATC CNC routers streamline multi-step processes by automating tool selection based on pre-programmed instructions. This not only improves efficiency and precision but also reduces downtime and human error. ATC CNC routers are commonly used in industries that demand high productivity and intricate machining, such as woodworking, cabinetmaking, plastic fabrication, and sign making. For small businesses, the ATC functionality can significantly enhance workflow, especially when handling complex or high-volume projects.

Key Components That Require Attention

To maintain optimal performance of an ATC CNC router, several critical components require regular inspection and care.

Spindle: The spindle is responsible for rotating the cutting tools at high speeds and is central to the machining process. Regular inspection is needed to detect signs of bearing wear, abnormal noise, overheating, or runout, all of which can affect cutting accuracy and surface finish.
Tool Magazine or Carousel: The tool magazine or carousel holds multiple tools and enables automatic tool changes. Sensors, actuators, and grippers should be checked to ensure smooth and accurate tool exchanges.
Linear Guides and Ball Screws: These components guide the movement of the machine along the X, Y, and Z axes. Dirt, dust, or lack of lubrication can cause friction, wear, or misalignment.
Servo Motors and Drives: Servo motors power the machine’s movements and ensure precise positioning. These motors and their associated drives should be monitored for excessive heat, abnormal vibrations, or unusual noises that could indicate mechanical or electrical issues.
Control System and Electrical Wiring: The control system processes commands and coordinates all machine functions. Loose wiring, faulty connectors, or software glitches can cause errors or system failures. Routine inspection of control boards, cables, and software updates.
Air Supply and Pneumatic System: ATC systems often rely on compressed air for tool clamping, unclamping, and cleaning. To maintain consistent air pressure, inspect air lines for leaks, and check filters and regulators to avoid tool change malfunctions.

By familiarizing yourself with the main components of an ATC CNC router, you gain valuable insight into how the machine operates and where issues are most likely to occur. This foundational knowledge makes both routine maintenance and troubleshooting more efficient and reduces the risk of unexpected downtime.

Routine Maintenance Checklist

Regular maintenance is beneficial to keep your ATC CNC router operating smoothly, reduce wear on components, and prevent unexpected breakdowns. Below is a recommended checklist categorized by frequency of tasks.

Daily Maintenance

Performing daily maintenance tasks ensures your ATC CNC router operates reliably and minimizes wear on critical components. These quick checks and cleaning routines take only a few minutes but have a big impact on machine longevity and performance.

Clean the work area: Remove dust, debris, and material residues from the machine bed, tool holder, and surrounding workspace.
Check Air Pressure Levels: Verify that the compressed air supply to the ATC system is within the proper range (typically 0.6–8 MPa) to avoid tool change failures.
Lubricate Linear Guides and Moving Parts: Apply the recommended lubricant to linear rails, ball screws, and other sliding components if your machine doesn’t have an automatic lubrication system.
Inspect Tool Holders and Tools: Wipe down the tool holders and check for debris, corrosion, or wear. Ensure all tools are securely clamped and properly aligned.
Inspect Cables and Emergency Systems: Ensure all power cables, signal lines, and connectors are secure. Confirm that emergency stops, safety covers, and limit switches are functioning properly.

Weekly Maintenance

Weekly maintenance involves deeper checks beyond daily cleaning, helping you identify wear and potential failures in key mechanical and electrical systems. These tasks ensure consistent performance and minimize the risk of downtime.

Inspect the Tool Magazine or Carousel: Check for smooth rotation and proper alignment of the ATC system. Clean the tool holders, sensors, and grippers to prevent tool change errors.
Check Belts and Pulleys: Examine all belts for tension, cracks, fraying, or signs of wear. Ensure pulleys are tight and aligned properly.
Examine the Spindle Cooling System: For air-cooled spindles, clean the fan and vent. For water-cooled systems, inspect the coolant level, check for leaks, and clean filters if necessary.
Tighten Screws and Fasteners: Use a torque wrench or Allen key to secure loose bolts, especially on moving components like the Z-axis assembly, tool holders, and brackets.
Clean and Inspect Dust Collection System: Empty the dust collection bin, clean filters, and check hoses for blockages or wear that could reduce suction efficiency.
Test Axis Movements: Run the machine through basic movement commands to detect unusual vibrations, resistance, or backlash.

Monthly Maintenance

Monthly maintenance focuses on in-depth inspections and adjustments that ensure long-term stability and precision of your ATC CNC router.

Check Spindle Runout: Use a dial indicator to measure the spindle’s radial and axial runout. Excessive runout can lead to poor surface finishes and premature tool wear.
Inspect Electrical Wiring and Connections: Open the electrical cabinet and check for loose terminals, corroded contacts, or damaged insulation. Make sure all connectors are properly seated and secure.
Evaluate Machine Leveling: Use a precision level or laser level to verify the machine base is still flat and even. Re-level the machine if necessary to prevent distortion and accuracy loss.
Examine Axis Alignment and Squareness: Check that the X, Y, and Z axes are perpendicular and aligned, and adjust if any misalignment is detected. Misalignment can lead to dimensional errors and poor-quality cuts.
Grease Mechanical Components: Apply grease to designated grease fittings on ball screws, bearing blocks, and rotary joints using the manufacturer-recommended lubricant.
Inspect Pneumatic System: Check hoses, valves, and cylinders for wear, leaks, or cracks. Replace any aging parts and confirm consistent air pressure during ATC operations.

Software and Firmware Maintenance

Keeping your software environment healthy is just as important as maintaining the mechanical side of the machine. Together, they ensure your ATC CNC router performs reliably and efficiently.

Backup Machine Settings: Regularly save important data such as tool offset values, machine parameters, and custom macros. Store backups in a secure location to avoid data loss in case of a system failure.
Update Control Software and Firmware: Check with your machine or control system provider for the latest software and firmware updates. Updates may include bug fixes, performance improvements, or new capabilities.
Calibrate Tool Offsets: Periodically recheck tool length and position offsets to maintain cutting precision, especially after software updates or significant tool changes.
Clean Control Panel and Displays: Wipe the HMI screen, buttons, and keyboard using a soft, lint-free cloth and a mild cleaner. Keeping the interface clean reduces the risk of unresponsive controls or accidental inputs.
Review Error Logs and Alarms: Scan for recurring system messages or alarms that may indicate deeper issues. Logging these can help with future troubleshooting or when consulting technical support.

Routine maintenance of the ATC CNC router not only ensures consistent machining accuracy but also helps identify potential issues before they escalate into costly repairs. Making these checks part of your regular workflow is a small investment of time that delivers long-term performance, safety, and reliability.

Common Troubleshooting Scenarios

Despite regular maintenance, occasional issues can arise with ATC CNC routers due to their mechanical complexity and automation features. Understanding the most common problems and how to resolve them quickly can minimize downtime and prevent further damage.

Tool Change Failures

A tool change failure occurs when an ATC CNC router is unable to complete the process of picking up, switching, or returning a tool during operation. These issues are usually caused by mechanical misalignment, air pressure problems, sensor malfunctions, or improper calibration and require prompt troubleshooting to restore normal function. Here are the solutions:

Check Tool Magazine Alignment: Visually inspect the tool magazine for alignment and mechanical integrity. Manually rotate it (if safe) to ensure smooth operation. Re-align it and secure all fasteners if any deviation is found.
Inspect Air Supply System: Ensure the air pressure is within the recommended range (usually 0.6–8 MPa). Check for air leaks, worn hoses, or clogged filters. Replace any damaged components and ensure the system delivers consistent pressure.
Clean and Test Sensors: Clean sensors with a soft, lint-free cloth. Test their response through the control panel or diagnostic menu. Replace any that are non-responsive or faulty.
Evaluate the Gripper Mechanism: Manually operate the gripper or ATC arm to ensure full motion. Look for signs of mechanical wear, obstructions, or misalignment. Lubricate moving parts as needed and replace any worn components.

Spindle Not Rotating or Overheating

This issue occurs when the spindle either fails to start, rotates erratically, or becomes excessively hot during operation. These problems are typically caused by variable frequency drive faults, cooling system failures, or incorrect machine settings, and they require immediate attention to avoid equipment damage and production delays. Here are the solutions:

Inspect and Test the VFD: Check for error codes or alarms on the VFD panel. Ensure that the input parameters (voltage, frequency, acceleration/deceleration rates) match the spindle specifications. If needed, reset the VFD or consult the manual for troubleshooting specific error codes.
Check the Cooling System: For air-cooled spindles, clean the ventilation fan and check that it is spinning freely. Remove dust from vents and air ducts. For water-cooled spindles, inspect the water pump, coolant reservoir, hoses, and radiator. Make sure the coolant is circulating properly and the system is free from blockages or leaks. Refill or replace the coolant if necessary.
Inspect Electrical Connections: Turn off power and inspect all cables between the VFD and spindle. Look for signs of wear, loose terminals, burned insulation, or broken connectors. Tighten or replace damaged wires to ensure stable power flow.
Adjust Cutting Parameters: Review your machining program. Reduce cutting depth, feed rate, or RPM if you notice the spindle overheating during heavy jobs. Always use settings that match the spindle’s rated performance.

Inaccurate Cuts or Positioning Errors

Inaccurate cuts or positioning errors occur when the CNC router’s actual toolpath does not match the programmed path, resulting in incorrect dimensions, misaligned holes, uneven edges, or poor fitment of parts. These errors are often caused by loose mechanical parts, worn components, or incorrect calibration. Here are the solutions:

Tighten All Mechanical Fasteners: Inspect the entire machine frame and axis assemblies. Use appropriate tools to tighten screws, bolts, and couplings, particularly around stepper/servo motors, guide rails, and drive systems.
Check and Replace Worn Components: Inspect linear guides and ball screws for visible signs of wear, play, or scoring. Lubricate them as needed or replace parts if the tolerance is no longer acceptable.
Recalibrate Tool and Work Offsets: Verify that your tool length offsets, machine zero, and work origin are correctly set in your software. Use a touch-off sensor or manual measuring tool to double-check accuracy.

Error Messages from Control System

Error messages from the CNC control system appear when the machine detects a problem during startup, operation, or shutdown. These messages are designed to protect the machine and operator by halting functions when something goes wrong. Errors may relate to limit switches, tool sensors, spindle drive issues, or communication failures. Here are the solutions:

Check Limit Switches: Inspect all axis limit switches for mechanical damage or misalignment. Make sure they’re not falsely engaged. If a switch is defective, replace it and reset the axis position using the control panel.
Test and Replace Faulty Sensors: Use diagnostic functions to identify non-responsive or inaccurate sensors. Clean the sensor heads and the surrounding area. Replace sensors that fail to return normal readings.
Inspect Wiring and Connections: Turn off the power and examine all wiring from the control board to servo drivers, sensors, and I/O modules. Reconnect or replace any loose, broken, or burned wires. Make sure all connectors are firmly seated.
Restore or Update Machine Parameters: Reload backed-up machine parameters or restore factory defaults if settings are corrupted. If the problem persists, update the firmware or reinstall the control software.

Identifying the root cause of common ATC CNC router issues early, you can avoid prolonged machine stoppages and ensure safer, more accurate operations. Always keep documentation and error logs handy, and consult your manufacturer’s manual for model-specific troubleshooting tips.

Preventive Tips for Longevity

Regular maintenance and quick troubleshooting are key, but long-term machine health also depends on smart operating habits and preventive measures. By following these tips, you can significantly extend the service life of your ATC CNC router and maintain consistent cutting performance:

Train Operators Properly: Ensure all operators understand how to safely use the machine, perform daily checks, and respond to alarms. Skilled operators are less likely to make programming or setup errors that can lead to mechanical stress or system failure.
Keep the Work Environment Clean: Dust, chips, and oil buildup can affect sensor performance, clog cooling systems, and increase wear on moving parts. Maintain a clean workspace around the machine and regularly clean internal components like fans and tool holders.
Maintain a Consistent Air Supply: Fluctuating or insufficient air pressure is a leading cause of ATC-related failures. Use a stable, well-maintained air compressor and regularly check filters, dryers, and regulators to ensure reliable performance.
Use Correct Cutting Parameters: Avoid overloading the spindle or drive system by using feed rates, spindle speeds, and cutting depths appropriate for the material and tool in use. Conservative settings can prevent unnecessary mechanical wear and heat buildup.
Monitor Wear and Replace Parts on Schedule: Establish a log to track spindle hours, tool changes, and part replacements. Replace consumables like bearings, belts, and seals at recommended intervals to avoid sudden failures.
Backup Software and Parameters Regularly: Create backups of control settings, tool offsets, and G-code files. In case of a software crash or control system failure, having a backup allows for quick recovery.
Protect Against Power Surges: Use surge protectors or uninterruptible power supplies (UPS) to shield the control system and VFD from voltage spikes, which can damage sensitive components.

Implementing these preventive practices as part of your routine operations, you reduce the risk of unplanned downtime, extend machine life, and ensure safer, more productive machining.

When to Call a Professional

While many maintenance tasks and minor troubleshooting procedures of the ATC CNC router can be handled in-house, problems go beyond basic troubleshooting and require specialized expertise or authorized support. Attempting to repair complex issues without the proper expertise can lead to further damage, longer downtime, and increased repair costs.

Signs That Require Manufacturer or Technician Support

You should contact a professional technician or the machine manufacturer when you encounter any of the following:

Persistent Error Codes or Alarms: If error messages continue to appear after basic troubleshooting, a deeper electrical or software issue may be present, something that requires diagnostic tools and manufacturer support.
Spindle Malfunctions or Electrical Failures: Problems involving the spindle, VFD, servo drives, or control board can be hazardous if misdiagnosed. Certified technicians can test components safely and replace or recalibrate them properly.
Major Mechanical Failures: If components like ball screws, guide rails, or the ATC arm are damaged, replacing or realigning them requires precision tools and factory-level calibration. Improper handling may worsen the issue.
Software Corruption or Control System Crash: When machine parameters are lost, firmware is corrupted, or the control panel becomes unresponsive, expert help ensures safe system recovery without data loss.

These signs typically indicate deeper electrical, mechanical, or software problems that require advanced tools, diagnostics, and expertise to resolve safely and effectively.

Warranty Considerations and Documentation Needed

If your machine is still under warranty, it’s important to follow proper procedures to avoid voiding coverage:

Avoid unauthorized repairs or part replacements, especially in electrical or structural areas.
Contact the manufacturer or authorized service provider for any issue that may fall under warranty, including faulty components, software malfunctions, or calibration errors.
Prepare documentation before contacting support to streamline the troubleshooting process. This typically includes the machine’s serial number and model, a clear description of the issue, and any related error codes or alarm messages. Providing maintenance logs, service records, and details about recent usage can help technicians understand the context of the problem. Photos or videos of the malfunction, as well as screenshots from the control system, are also useful for visual reference.

Submitting complete and accurate documentation helps the support team diagnose the issue more efficiently and ensures faster resolution under warranty terms.

Knowing when to seek professional assistance helps prevent small issues from becoming major problems. It ensures safety, protects the integrity of your ATC CNC router, and restores normal operation more efficiently. When in doubt, especially with electrical or structural components, contact your machine manufacturer or certified technician.

Summarize

Proper maintenance and timely troubleshooting are beneficial to keeping your ATC CNC router running efficiently, accurately, and safely. By following a structured maintenance routine, you can prevent many common issues before they arise. When problems do occur, understanding the causes of common failures enables faster and more effective solutions. Additionally, adopting preventive practices and knowing when to call a professional help extends the machine’s lifespan and minimizes costly downtime. With the right care and attention, your ATC CNC router will remain a reliable and productive asset in your workshop for years to come.
