A vacuum table is a critical component in many CNC router setups, providing a secure and efficient way to hold materials in place during cutting, engraving, and milling operations. At the heart of this system is the vacuum pump, which creates the suction force needed to keep the workpiece stable and immobile. Choosing the right vacuum pump not only ensures strong and consistent pressing force, but also maintains precision, improves workflow and avoids costly downtime.
With various pump types, sizes, and specifications on the market, selecting the most suitable option can be challenging. This guide will walk you through the key factors to consider when choosing a vacuum pump for your CNC router vacuum table, helping you make an informed decision based on your specific needs and production goals.
Understanding the Role of a Vacuum Pump in CNC Routers

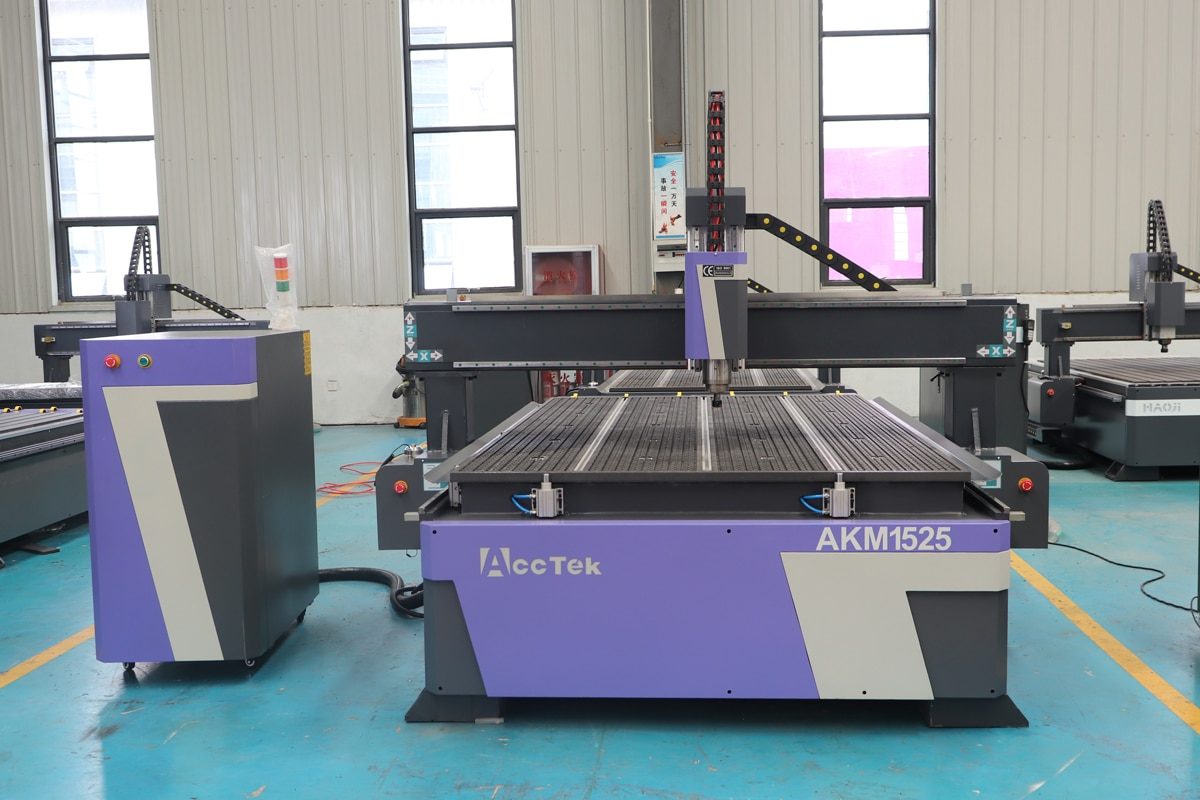

A vacuum worktable is a flat surface designed to hold workpieces in place using suction. It features a grid or series of grooves and holes that connect to vacuum zones beneath the surface. These zones are linked to a vacuum system that removes air from under the material, creating a pressure differential. When the vacuum is applied, atmospheric pressure presses the material firmly against the table, keeping it stable during machining. Learn about the role of vacuum pumps in CNC router here:
How Does a Vacuum Pump Work with a Vacuum Worktable?
The vacuum pump is the heart of the vacuum system. Its job is to generate the negative pressure (vacuum) required to create suction through the table. When activated, the pump draws air out of the vacuum zones and channels within the table, reducing the air pressure beneath the workpiece. As a result, the higher atmospheric pressure on top of the material pushes it down against the table surface. Depending on the application, different types of vacuum pumps can be used. The pump’s capacity and vacuum level must match the size of the vacuum table, the material type, and the porosity of the workpiece to ensure reliable holding force.
What Are the Benefits of Using a Vacuum Pump to Fix the Workpiece?
Using a vacuum pump to secure the workpiece on a CNC router offers numerous practical advantages:
- Uniform Holding Force: The suction is evenly distributed across the material, minimizing movement, vibration, or lifting during high-speed cutting or engraving.
- No Obstruction from Clamps: Since there are no physical clamps, the entire surface of the material is accessible, allowing for edge-to-edge machining and better material utilization.
- Faster Setup and Workflow: Changing workpieces becomes quicker and easier without the need for manual clamping, which improves overall production efficiency.
- Improved Safety and Accuracy: A stable, slip-free hold reduces the risk of cutting errors, tool damage, or material waste.
- Versatility: Vacuum hold-down works well for a wide range of materials, including wood, plastics, foam, composites, and even some metals.
The vacuum pump is an essential component of the CNC router vacuum system, enabling fast, efficient, and precise machining by providing a reliable and contact-free method of holding materials in place.
Types of Vacuum Pumps for CNC Routers
Selecting the right type of vacuum pump is beneficial for ensuring optimal suction performance and system reliability. CNC routers commonly use several types of vacuum pumps, each with unique working principles, advantages, and ideal use cases. Below are the most widely used vacuum pump types for CNC router vacuum tables:
Rotary Vane Vacuum Pumps
A rotary vane vacuum pump is a type of positive displacement pump that uses rotating vanes positioned inside a cylindrical chamber to create a vacuum. As the rotor turns, the vanes slide in and out, trapping and compressing air before expelling it through an exhaust port.
- Advantages: Rotary vane vacuum pumps are known for their ability to generate strong and consistent vacuum pressure, making them highly effective for holding down non-porous or semi-porous materials on CNC router vacuum tables. They provide excellent sealing performance and are capable of maintaining stable suction over long periods. Their compact design also makes them suitable for installations with limited space.
- Disadvantages: The main drawback of rotary vane pumps is their reliance on oil for lubrication and cooling. This means regular maintenance is required, including oil changes and vane inspections or replacements. Additionally, these pumps tend to generate more noise and heat compared to oil-free alternatives. If not properly maintained, performance can degrade over time, leading to reduced suction or premature wear.
Regenerative Blowers
Regenerative blowers, also known as side channel blowers, are air-moving devices that generate vacuum or pressure by accelerating air in a spiral path using a non-contact impeller. They provide high airflow but lower vacuum pressure compared to rotary vane pumps.
- Advantages: Regenerative blowers are oil-free, quiet, and low-maintenance, offering a clean and reliable solution for many vacuum hold-down applications. Their ability to deliver a large volume of airflow makes them especially effective for porous materials, where air leakage is common. They also have a long service life and are easy to install, often requiring minimal operational oversight.
- Disadvantages:One key limitation of regenerative blowers is their relatively low vacuum pressure compared to other pump types like rotary vane or claw pumps. This makes them less suitable for holding non-porous or small workpieces that require strong suction force. Additionally, their performance may drop significantly when used with materials or setups that need deeper vacuum levels.
Claw and Screw Pumps
Claw pumps and screw pumps are both oil-free, dry-running vacuum pumps that operate using non-contact rotary mechanisms. Claw pumps use two claw-shaped rotors rotating in opposite directions to draw in and compress air, while screw pumps use intermeshing screw-shaped rotors to achieve the same result.
- Advantages: Both claw and screw pumps offer high energy efficiency, long service life, and stable vacuum performance. Because they operate without oil or contact between moving parts, they require less maintenance and eliminate the risk of oil contamination. They are also quieter than oil-lubricated pumps and are well-suited for continuous, heavy-duty use in industrial environments.
- Disadvantages: Their relatively high initial cost compared to other types like regenerative blowers or rotary vane pumps. Additionally, their performance may be more than necessary for smaller CNC routers or basic applications, making them less cost-effective for light-duty or occasional use. Their larger size and industrial-grade configuration may also require more installation space.
Oil-Lubricated Pumps vs. Oil-Free Pumps
Oil-lubricated pumps, such as rotary vane pumps, use oil for lubrication, cooling, and sealing inside the pump chamber. This allows them to achieve deeper vacuum levels and maintain consistent performance, especially in precision tasks. However, they require regular maintenance, including oil changes and filter replacements, and they may emit oil mist or require additional filtration. Oil-lubricated pumps are ideal for CNC applications where a strong, stable vacuum is required, especially for non-porous materials like acrylic, aluminum, and plastic. They’re commonly used in high-precision machining and small-format CNC routers.
Oil-free pumps—like regenerative blowers, claw pumps, and screw pumps—operate without oil, using non-contact rotating mechanisms to generate vacuum. They offer cleaner operation, lower maintenance, and are often quieter, but they usually deliver lower vacuum pressure than oil-lubricated models. Oil-free pumps are better suited for porous materials like MDF, plywood, or foam, where high airflow is more important than vacuum depth. They are widely used in woodworking, signage production, and large-format CNC systems where low maintenance and continuous operation are key.
Key Factors to Consider When Choosing a Vacuum Pump
The pump you choose directly affects how well the material is held during machining, which in turn influences the precision, safety, and efficiency of your workflow. To make an informed decision, it’s important to evaluate several key factors that impact both short-term performance and long-term productivity.
Vacuum Pressure and Airflow (CFM or m³/h): Different applications require different levels of vacuum pressure and airflow. High vacuum pressure is more suitable for non-porous materials or small workpieces, while high airflow is more important when working with porous materials like MDF or particle board. Always match the pump’s capabilities to the size and material of your workpieces.
Table Size and Number of Zones: Larger CNC tables naturally require more suction power to maintain effective hold-down across the entire surface. If your table is divided into multiple vacuum zones, you may need a pump that can either support all zones simultaneously or allow for selective activation. Always ensure the pump’s capacity aligns with your table’s total area and zone control system.
Workpiece Material and Porosity: Porous materials such as MDF, particle board, and foam allow air to pass through, which reduces vacuum effectiveness. These materials require pumps with higher airflow capacity to maintain consistent suction. In contrast, non-porous materials like acrylic, aluminum, and plastic benefit more from high vacuum pressure than from high volume.
Production Volume and Cycle Time: For continuous or high-speed production environments, it’s necessary to choose a pump that can maintain a vacuum under frequent use without overheating or degrading. Heavy-duty industrial pumps are better suited for long-duty cycles, while smaller systems may suffice for occasional or hobby use.
Power Consumption and Energy Efficiency: Vacuum pumps can consume a significant amount of electricity, especially in large-scale operations. Choosing an energy-efficient model can help reduce operating costs over time. Compare the power rating (kW or HP) and efficiency across models to find a balance between performance and power use.
Noise Levels: In workshops or environments with noise restrictions, pump noise can be a concern. Oil-free models like regenerative blowers and screw pumps tend to operate more quietly than oil-lubricated rotary vane or claw pumps. Always check the decibel (dB) rating if noise is a potential issue in your workspace.
Maintenance Requirements: Maintenance frequency and complexity can impact your overall efficiency and cost. Oil-lubricated pumps require regular oil changes, filter replacements, and more frequent part inspections. Oil-free pumps offer cleaner operation and lower maintenance, making them preferable for users who prioritize simplicity and long-term convenience.
Budget and Total Cost of Ownership: Initial purchase price is just one part of the equation. Consider long-term costs, including energy consumption, routine maintenance, replacement parts, and potential downtime. While higher-end pumps may cost more upfront, they often offer better reliability, longer lifespan, and reduced operating costs over time.
Installation Space and Environmental Requirements: Some pumps require more space and may need ventilation or external housing. Be sure your workspace has adequate room and meets any installation or environmental requirements the pump might have.
Choosing the right vacuum pump for your CNC router vacuum table involves more than just picking the strongest or most affordable option. It requires balancing multiple factors to find a solution that fits your specific needs. By carefully considering these key points, you can ensure reliable performance, improved machining accuracy, and a more efficient workflow in the long run.
Common Vacuum Pump Configurations in CNC Router Setups
CNC router vacuum systems can be configured in different ways depending on the size of the machine, the type of materials being processed, and the level of production. Choosing the right configuration ensures stable suction, flexibility, and energy efficiency during operation. Below are some of the most common vacuum pump configurations found in CNC router setups:
Single Pump vs. Multiple Pump Systems
Single Pump Systems are the simplest configuration. A single vacuum pump supplies suction to the entire vacuum table. This setup is easy to install, cost-effective, and well-suited for small to medium CNC routers or users who work with similar materials and job sizes consistently. However, its performance may be limited when working with large tables, porous materials, or during high-volume production.
Multiple Pump Systems use two or more vacuum pumps, either in parallel to increase airflow and vacuum pressure or assigned individually to specific zones or tasks. This approach offers better scalability, redundancy (one pump can continue operating if another fails), and stronger overall performance. It’s ideal for large-format CNC routers or industrial operations where material type and production demands vary frequently.
Vacuum Vessels or Buffer Tanks
Integrating a vacuum vessel (also called a buffer tank) between the pump and the vacuum table creates a reserve of negative pressure. When suction is needed, the vacuum is drawn from the tank rather than the pump directly. This offers several key benefits:
- Reduces the frequency of pump starts and stops, extending pump life.
- Stabilizes vacuum levels during sudden pressure drops (such as during tool changes or material shifts).
- Improves energy efficiency by allowing the pump to run intermittently instead of continuously.
This configuration is best for shops with fluctuating demand, intermittent cutting cycles, or those seeking energy savings and equipment longevity.
Zoning and Valve Control Systems
Zoned vacuum tables divide the table surface into multiple sections (zones), each of which can be independently controlled. This allows suction to be applied only where it’s needed, conserving vacuum energy and improving hold-down strength in active areas. Zoning can be managed:
- Manually, using mechanical valves to open or close zones.
- Automatically, via solenoid valves connected to the CNC controller or sensors that detect material placement.
When combined with one or more pumps, zoning adds flexibility to handle different material sizes and shapes, or to run multiple jobs on the same table without vacuum loss. It also helps reduce air leakage when working with smaller workpieces or partially covered tables.
Understanding and implementing the right vacuum pump configuration can significantly enhance the performance of your CNC router vacuum table. The ideal setup balances vacuum efficiency, material hold-down reliability, and operational flexibility, ensuring your CNC system runs smoothly and cost-effectively, no matter the workload.
Recommended Vacuum Pump by Table Dimensions
When selecting a vacuum pump for your CNC router, the size of the vacuum table is one of the most important factors. Larger tables require more airflow to maintain consistent suction, especially when processing porous materials. Below is a general guidelines for choosing vacuum pump capacity based on common CNC table sizes. Keep in mind that actual requirements may vary depending on material type, vacuum table design, and production demands.
Small Tables (e.g., 2x3 ft, 2x4 ft)
- Recommended Pump Type: Rotary vane pump or small regenerative blower
- Suggested Capacity: 4–8 m³/h (2–5 CFM)
- Notes: Suitable for hobby CNC routers or light-duty commercial use. Best for non-porous or semi-porous materials.
Medium Tables (e.g., 4x4 ft, 4x6 ft)
- Recommended Pump Type: Medium rotary vane pump or regenerative blower
- Suggested Capacity: 20–40 m³/h (12–24 CFM)
- Notes: Provides a balance between suction power and airflow for moderate workloads and mixed materials.
Standard Full Sheets (e.g., 4x8 ft, 5x10 ft)
- Recommended Pump Type: High-capacity regenerative blower, claw pump, or multiple rotary vane pumps
- Suggested Capacity: 60–100 m³/h (35–60 CFM) or more
- Notes: Ideal for full sheet cutting, especially for porous materials like MDF or plywood. Zoning and buffer tanks may be used for better control.
Large Industrial Tables (e.g., 6x12 ft, 7x14 ft and above)
- Recommended Pump Type: Multiple claw or screw pumps, centralized vacuum system
- Suggested Capacity: 150–300+ m³/h (90–180+ CFM)
- Notes: Designed for high-volume production. Requires zoning, buffer tanks, and often automatic valve systems for best performance.
Choosing the right vacuum pump capacity based on your CNC table size ensures reliable material hold-down and efficient machine operation. Always consider your specific materials, porosity, and duty cycle in addition to table dimensions. When in doubt, it’s better to slightly oversize the vacuum system to maintain consistent suction under various conditions.
Tips for Optimizing Vacuum System Performance
Even with the right vacuum pump and table, poor system maintenance or setup can lead to air leaks, weak suction, and inefficient cutting. Here are key tips to help you get the most out of your vacuum system:
- Ensure Proper Sealing and Gasketing: Make sure all seals around the vacuum zones, table surface, and spoilboard are tight. Use high-quality gaskets or foam strips to prevent air leaks, especially around the table edges and unused zones.
- Use a Suitable Spoilboard: Choose a spoilboard material like MDF that offers consistent porosity. Avoid warped or uneven boards, and resurface regularly to maintain flatness. For better efficiency, consider sealing the edges of the spoilboard to reduce unwanted airflow.
- Cover Unused Table Areas: If your workpiece doesn’t cover the entire vacuum zone, use scrap sheets or vacuum table covers to block open holes. This helps concentrate suction under the workpiece and reduces vacuum loss.
- Maintain Clean Channels and Filters: Check vacuum lines, table grooves, and filters regularly for dust, debris, or blockages. Clogged channels can significantly reduce airflow and suction strength. Clean and replace filters as recommended by the pump manufacturer.
- Use Zoned Vacuum Control Wisely: If your CNC router has a zoned vacuum table, activate only the zones needed for the current job. This improves suction performance, reduces air leakage, and saves energy.
- Check for Air Leaks in Connections: Inspect hose fittings, clamps, and valve connections for cracks or loose joints. Even small leaks can degrade system performance. Use hose clamps or sealant where needed to ensure airtight connections.
- Monitor Vacuum Pressure: Install a vacuum gauge to monitor system performance in real time. A drop in pressure may indicate leaks, clogged lines, or a pump issue. Monitoring helps you catch problems early before they affect machining quality.
- Keep the Vacuum Pump Well-Maintained: Follow the manufacturer’s maintenance schedule. For oil-lubricated pumps, check oil levels and replace regularly. For oil-free pumps, keep internal components clean and check for wear or unusual noise.
Optimizing your CNC vacuum system isn’t just about choosing the right pump, it’s about regular maintenance, smart operating practices, and making small adjustments that keep suction strong and consistent. By applying these tips, you’ll improve your CNC router’s performance, reduce material shifting, and achieve better cutting results with fewer interruptions.
Summarize
Whether you’re running a small workshop or managing industrial-scale production, the right vacuum system ensures better material hold-down, cleaner cuts, and fewer disruptions. Choosing a suitable vacuum pump for your CNC router vacuum table is about finding the right balance between vacuum pressure, airflow, table size, material type, and production demands. Take the time to evaluate your needs carefully, and don’t hesitate to consult with equipment suppliers for tailored recommendations. A well-chosen vacuum pump is an investment that will pay off in precision, productivity, and peace of mind.
