CNC routers have revolutionized the way we shape and craft materials, bringing speed, precision, and repeatability to countless industries. From woodworking and signage to metal fabrication and prototyping, these computer-controlled machines are now a cornerstone of modern manufacturing. But a common question among new users and seasoned professionals alike is: Can a CNC router create complex designs?
The short answer is yes, but the full answer depends on several factors, including the machine’s capabilities, the software used, and the material being processed. In this article, we’ll explore how CNC routers handle intricate patterns, 3D carvings, and sophisticated structures, as well as the tools and technologies that make it all possible.
Understanding CNC Router
A CNC router is a cutting machine controlled by a computer, designed to precisely carve, cut, drill, or engrave various materials. Unlike manual tools, CNC routers follow pre-programmed paths created in design software, which allows for consistent, accurate, and repeatable results. To fully grasp whether a CNC router can create complex designs, it’s important to understand its basics. Let’s break it down into three main aspects:
Basic Components of a CNC Router
A CNC router is made up of several key components that work together to execute precise and repeatable machining tasks:
- Frame and Bed: The structure that supports the machine and the workpiece. A rigid frame ensures stability and accuracy during operation.
- Spindle: The rotating cutting tool that removes material. Spindles vary in speed and power depending on the application.
- Drive System: Usually powered by stepper or servo motors, this system moves the cutting head along the X, Y, and Z axes.
- Control System: The “brain” of the CNC router, it interprets digital design files (G-code) and directs the machine’s movements.
- Worktable: The surface where the material is placed, often equipped with clamps or vacuum systems to hold the material in place.
- Software: CAD/CAM software is used to design parts and generate toolpaths that the control system can understand.
Functions of a CNC Router
CNC routers are highly versatile and capable of performing a wide range of tasks, including:
- Cutting: Precise trimming of materials into specific shapes or profiles.
- Engraving: Creating surface designs, text, or logos with shallow cuts.
- Drilling: Making consistent holes at accurate locations.
- 3D Carving: Producing sculptural or relief-style designs with depth and contour.
- Pocketing: Removing material within a defined area to a specific depth.
These functions make CNC routers suitable for everything from basic sign-making to complex 3D model fabrication.
Types of CNC Routers
CNC routers come in different configurations based on how many axes of motion they offer. The number of axes directly affects the machine’s ability to create complex shapes and surfaces. Let’s explore the three main types: 3-axis, 4-axis, and 5-axis CNC routers.
- 3-Axis CNC Router: A 3-axis CNC router is the most common and widely used type. It moves the cutting tool in three linear directions. The X-axis controls the movement of a spindle along a horizontal plane, the Y-axis controls the movement of the spindle along the vertical plane, and the Z-axis controls the up-and-down movement of the spindle. This setup is ideal for cutting flat materials, engraving, drilling, and 2.5D carving. While it can handle detailed work, it’s limited to working on one side of the material at a time and cannot easily produce undercuts or more complex geometries.

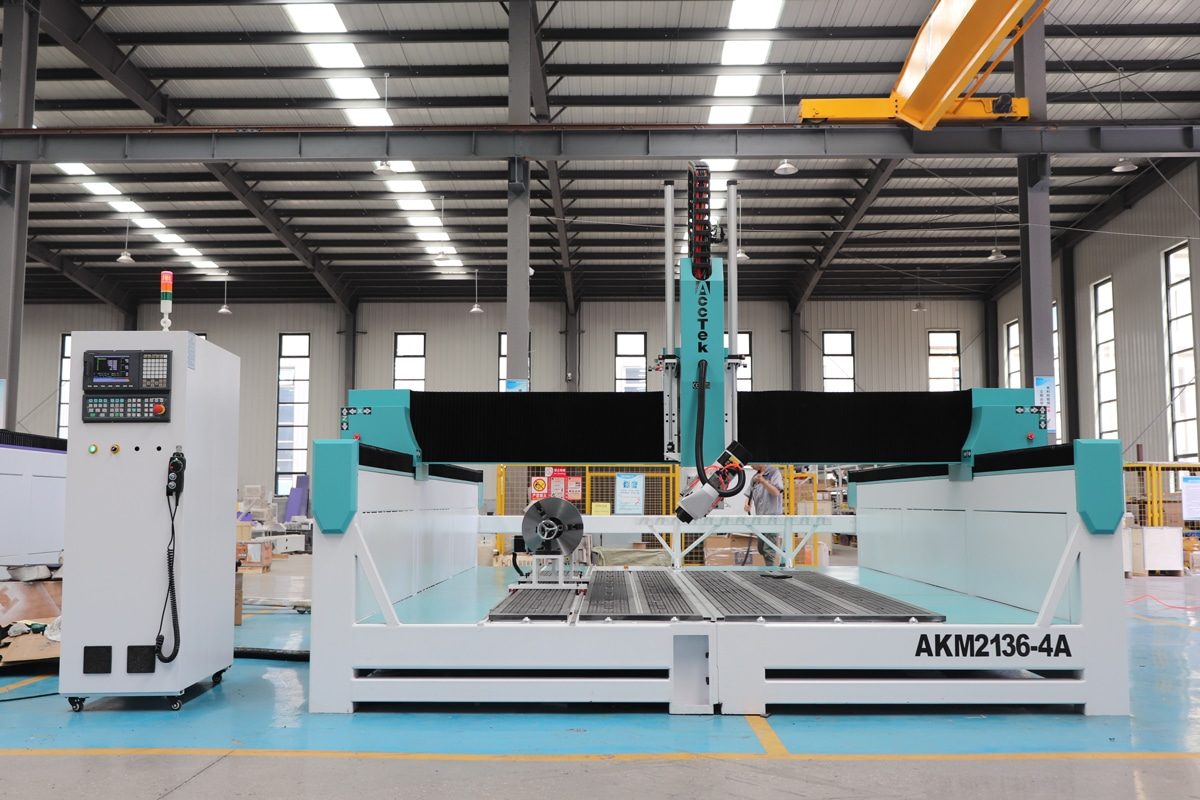

- 4-Axis CNC Router: The configuration of a 4-axis CNC router is characterized by its ability to move and manipulate the cutting tool and workpiece in four distinct axes of motion. Unlike traditional 3-axis CNC routers, which operate along the X, Y, and Z axes, a 4-axis CNC router adds an additional rotational axis, typically referred to as the A-axis. This additional axis of rotation enables the machine to perform complex cuts and contours that were previously unattainable with three-axis systems.
- 5-Axis CNC Router: A 5-axis CNC router offers the highest level of flexibility and precision. In addition to the three linear axes and one rotary axis, it adds a fifth axis that tilts the tool. This allows the router to approach the workpiece from virtually any angle. With this advanced control, 5-axis machines can produce highly complex, multi-surface workpieces in a single setup. They are commonly used for complex 3D surfaces, ship mold making, and detailed art sculptures.
Understanding these fundamentals sets the stage for exploring how CNC routers are capable of producing detailed and intricate designs across a wide range of industries.
Factors That Enable Complex CNC Designs
The ability of a CNC router to handle complex designs doesn’t just depend on the machine itself—it relies on a combination of hardware, software, and operational precision. Let’s explore the key factors that make complex CNC designs possible:
CAD/CAM Software Integration
The design process begins with CAD (Computer-Aided Design) software, where intricate patterns, parts, and shapes are created. These designs are then translated into toolpaths using CAM (Computer-Aided Manufacturing) software, which generates the G-code that tells the CNC router what to do. High-quality CAD/CAM software supports advanced functions such as 3D modeling, toolpath optimization, simulation and preview, and multi-axis programming.
Precision Drive Systems
Complex designs demand accurate and repeatable movements. The drive system, typically powered by stepper motors or more advanced servo motors controls the movement along each axis. Servo-driven systems are often preferred for complex work due to high-speed operation and closed-loop feedback to ensure accuracy. These systems help ensure that even fine details are carved with clarity.
Tooling Options
The choice of cutting tools directly affects the machine’s ability to execute complex cuts. CNC routers can be equipped with a variety of router bits, such as V-bits for engraving and chamfering, ball-nose bits for 3D carving, end mills for profiling and pocketing, and tapered bits for fine detail work. Using the right tool and changing tools as needed enables the machine to perform a wide range of detailed operations.
Multi-Axis Capabilities
As discussed earlier, 4-axis and 5-axis CNC routers allow for additional movements, which gives the machine greater design flexibility in all three dimensions, enabling the completion of more complex geometries. These extra axes enable undercuts and angled features, full-surface machining without repositioning.
Workholding and Fixturing
To achieve consistent results, the material must be held securely in place. Depending on the complexity of the CNC routing, fixturing options include vacuum tables for flat sheet materials, custom clams for 3D objects, or rotary fixtures for cylindrical workpieces. Proper fixturing ensures that the design is executed without shifting or distortion.
Together, these factors form the foundation for executing intricate, multi-dimensional designs with precision and consistency. By optimizing each of these areas, users can unlock the full potential of their CNC router.
Advantages of CNC Routers in Design Complexity
CNC routers are widely recognized for their ability to handle intricate and demanding design work. CNC routers offer several key advantages that make complex design not only possible but highly efficient.
High Precision and Repeatability
CNC routers can achieve extremely accurate cuts with tolerances as tight as ±0.01 mm, depending on the machine. Once a design is programmed, the CNC router can reproduce it exactly, no matter how complex or detailed without sacrificing quality or accuracy. This repeatability is ideal for mass production or projects that require consistent quality.
Multi-Axis Machining Capabilities
With 3-axis, 4-axis, and 5-axis configurations available, CNC routers can create complex shapes in all directions. Whether it’s intricate surface reliefs, compound angles, or multi-sided parts, the machine can execute designs that would be nearly impossible with manual tools. Multi-axis capabilities significantly reduce the need for manual repositioning, fixture changes, or part segmentation.
Advanced Automation
Design complexity often involves multiple steps, cutting, engraving, drilling, pocketing, etc. which would normally require manual repositioning and adjustment. CNC routers, especially those equipped with automatic tool changers (ATC) and smart controllers, can perform all these operations automatically. This reduces setup time, minimizes operator intervention, and ensures smooth transitions between design features, even in multi-layered or compound designs.
Versatility Across Materials and Applications
CNC routers can handle a broad spectrum of materials, including wood, plastic, acrylic, foam, composites, and soft metals like aluminum. This means complex designs can be executed in the material best suited for the final application, whether it’s for aesthetics, strength, or durability. The ability to apply complex design to varied materials expands creative possibilities and reduces the need for multiple machines.
Integration with Advanced Design Software
CNC routers rely on CAD and CAM software to interpret complex digital designs and convert them into precise machine instructions. This integration brings several benefits:
- Designers can create advanced 2D or 3D models without needing to manually translate them into toolpaths.
- CAM software automatically generates efficient cutting strategies for complex shapes.
- Users can simulate and preview results before machining, identifying potential issues early.
This digital workflow shortens the design-to-production timeline and enables faster experimentation and iteration of complex ideas.
Time and Cost Efficiency for Complex Work
Traditionally, complex parts were expensive and time-consuming to produce due to the manual labor and tooling required. CNC routers change that by automating the process, which leads to:
- Faster turnaround times, even for multi-step, highly detailed jobs.
- Lower labor costs and reduced human error.
- Efficient use of materials via optimized nesting and toolpath strategies.
- The ability to handle short runs or custom jobs without major retooling.
In short, complexity no longer means prohibitive costs or impractical lead times.
CNC routers combine advanced motion control, software intelligence, and mechanical precision to make complex design tasks not only achievable but practical. Whether you’re producing detailed carvings or complex 3D models, these advantages enable high-quality outcomes at scale.
Limitations and Challenges
While CNC routers offer impressive capabilities for creating complex designs, there are still some limitations and challenges that users should be aware of. Understanding these factors can help in better planning, tool selection, and design optimization.
Material Limitations
Not all materials are equally suitable for complex CNC routing. While CNC routers can cut wood, plastic, foam, and soft metals like aluminum, certain challenges remain:
- Hard metals (e.g., steel, titanium) may cause excessive tool wear or require specialized equipment beyond standard CNC routers.
- Brittle materials can chip or crack during intricate cuts.
- Soft or flexible materials may deform during machining, making precision difficult.
Choosing the right material for the design is beneficial for achieving the desired result.
Tool Limitations
The type, size, and geometry of cutting tools directly impact the level of detail and complexity achievable:
- Large tools cannot access tight corners or small details.
- Small tools are prone to breaking and require slower feed rates.
- Limited tool changers may restrict multi-step operations requiring different bits.
- Tool wear affects cut quality over time, especially in fine, repetitive work.
Handing fine details requires regular maintenance and careful tool selection.
Machine Size and Capacity
The size of the CNC router limits the size of the parts you can create in one piece:
- Small machines may not accommodate large or multi-part assemblies.
- Larger parts often need to be broken into smaller components and reassembled, which increases design complexity and may affect final alignment.
- Z-axis travel limits the depth and height of carvings or 3D structures.
Designers must work within the physical constraints of their machine’s work envelope.
Programming Complexity
Designing complex parts often requires advanced programming skills and time-consuming toolpath generation:
- CAM software must handle intricate toolpaths, multiple passes, and optimal cutting strategies.
- Multi-axis programming adds complexity, especially in 4-axis and 5-axis operations.
- Simulation is necessary to prevent tool collisions, missed areas, or inefficient cuts.
Improper programming can result in design flaws, wasted material, or machine damage. This can result in a steeper learning curve, particularly for beginners or small businesses without in-house design expertise.
Surface Finish and Detail Resolution
CNC routers may struggle to achieve ultra-fine surface finishes, especially on complex 3D curves:
- Step marks may be visible on 3D reliefs due to layer-by-layer cutting.
- Tool diameter limits how small features can be.
- Surface sanding or polishing may be required for a smooth final appearance.
Achieving high-detail resolution requires careful tool selection, optimized speeds/feeds, and post-processing.
Machining Time and Cost
While CNC routers are efficient, the more complex the design, the more time-consuming and costly the process becomes:
- Multiple tool changes, slow feed rates, and deep passes increase machining time.
- Intricate 3D carvings require more passes and finer step-overs.
- Post-processing adds additional labor.
This can make high-detail work less viable for low-budget or high-volume projects.
Support Structures and Fixtures
Holding the material securely during cutting is especially difficult with intricate or multi-sided designs:
- Custom jigs or fixtures may be needed to stabilize irregular shapes.
- Vacuum tables may struggle with small parts or porous materials.
- Workholding must not interfere with the toolpath or surface finish.
Improper fixturing can result in vibrations, material shifting, or damaged workpieces.
Despite these challenges, most can be addressed through smart design choices, machine upgrades, and skilled operation. Recognizing these limitations helps users optimize their workflow and get the most from their CNC router.
Real-World Applications of Complex CNC Designs
The ability of CNC routers to execute intricate and precise designs has made them indispensable across various industries. From artistic creations to high-precision engineering, here are some real-world applications where complex CNC designs play a critical role:
Custom Furniture and Woodworking
CNC routers are widely used in the furniture industry to create:
- Intricate carvings on doors, cabinets, and headboards
- Decorative moldings, scrollwork, and inlays
- Joinery elements like dovetails and finger joints
- Custom curves and contours for ergonomic design
They allow designers to blend functionality with craftsmanship, even in large-scale production.
Signage and Branding
In advertising and retail environments, CNC routers enable the production of:
- 3D logos and dimensional lettering
- Backlit signs with precision-cut panels
- Detailed engravings and textured surfaces
- Custom point-of-sale displays
Complex design capabilities help brands stand out with unique visual identities.
Mold Making and Prototyping
Manufacturers use CNC routers to create molds and prototypes for casting, vacuum forming, or product development:
- Architectural models for real estate and urban planning.
- Automotive and aerospace prototypes for testing and design evaluation.
- 3D sculpting and mold-making for industrial applications.
- Industrial concept models before mass production.
This application benefits from the CNC router’s ability to handle a variety of materials.
Art and Sculpture
Artists and sculptors take advantage of CNC routers to explore creativity without limitation:
- Large-scale relief sculptures and murals
- Abstract 3D installations
- Mixed media art with layered textures
- Carving Buddha statues and other figures
CNC routing empowers artists to translate digital concepts into physical forms with high fidelity.
Packaging and Industrial Design
CNC routers are also used in creating:
- Custom packaging inserts and foam molds
- Product displays and fixtures
- Prototype models with intricate internal structures
- Ergonomic tooling and jigs for production lines
Design complexity here directly influences usability, aesthetics, and brand identity.
Across industries, CNC routers enable professionals to take on more detailed, and creative projects, turning complex ideas into reality quickly and accurately.
Tips for Achieving Complex Results with a CNC Router
While CNC routers are fully capable of executing intricate and sophisticated designs, achieving high-quality results requires more than just a powerful machine. It takes smart planning, proper setup, and attention to detail throughout the workflow. Here are some key tips to help you successfully tackle complex CNC routing projects:
Choose the Right CNC Router for the Job
Complex designs may demand more than a basic 3-axis machine. Consider:
- 4-axis or 5-axis CNC router machines for multi-surface or sculptural work
- CNC Router with Automatic Tool Changers (ATC) for projects requiring multiple tool types
- Sturdy frames and precise motion systems to reduce vibration and maintain accuracy
Investing in the right level of equipment ensures better results and greater design freedom.
Use High-Quality CAD/CAM Software
Your design software directly influences the quality of your toolpaths and output. Look for software that offers:
- Robust 2D/3D modeling tools
- Multi-axis toolpath generation
- Simulation and error detection
- Easy control over feed rates, step-overs, and cutting depths
Software that integrates well with your CNC system will help streamline your workflow and reduce errors.
Select the Right Cutting Tools
When working with fine details or complex features, the right cutting tools are required:
- Use smaller diameter bits for fine features and tight corners
- Choose ball-nose or tapered tools for 3D carving and surface contouring
- Ensure tools are sharp and properly maintained to avoid tear-out or burn marks
Don’t forget to match the tool to the material type for optimal performance.
Optimize Toolpaths for Detail and Efficiency
For intricate designs, toolpath strategy matters:
- Use adaptive clearing for faster roughing without stressing the tool
- Apply finishing passes with tight step-over settings for smooth surfaces
- Break complex jobs into multiple operations (roughing, semi-finishing, finishing)
Simulation tools can help identify potential issues before machining begins.
Secure the Workpiece Properly
Complex cuts often involve sharp turns, deep pockets, or long tool paths, any movement of the material can ruin the job. Use:
- Vacuum tables for flat sheet material
- Custom clamps or fixtures for shaped or 3D workpieces
- Double-sided tape or jigs for small or delicate parts
Always verify that the workpiece is rigidly held throughout the entire operation.
Start with a Test Run
Before committing to an expensive or final workpiece:
- Run the job on foam, MDF, or scrap material
- Look for issues like tool collisions, incorrect depths, or toolpath misalignment
- Make adjustments as needed based on the test result
This minimizes waste and gives you confidence before executing the final cut.
Calibrate and Maintain Your Machine Regularly
Precision in complex work requires a well-maintained machine. Make sure to:
- Calibrate the X, Y, and Z axes periodically
- Tighten mechanical components and eliminate backlash
- Lubricate guides and check belts or screws for wear
- Verify that your spindle is running true and at the correct speeds
Even minor mechanical issues can impact the quality of intricate details.
By following these tips and combining thoughtful design with careful execution, you can consistently achieve high-quality, complex results with your CNC router. The machine is only as good as the preparation behind it, so plan well, test often, and refine your process as you go.
Summarize
So, can a CNC router create complex designs? Absolutely. With the right machine, software, tooling, and setup, CNC routers are capable of producing intricate, highly detailed, and multi-dimensional work across a wide range of materials and industries. However, achieving these results requires thoughtful planning, understanding machine capabilities, and mastering the design-to-production workflow. With the right approach, CNC routers can take your designs to a whole new level of sophistication and performance.
If you’re looking to bring complex designs to life with precision, reliability, and efficiency, AccTek CNC is a trusted name in the industry. As a professional CNC router manufacturer, we offer a wide range of high-performance machines designed to meet the demands of intricate carving, detailed engraving, 3D shaping, and multi-axis machining. Backed by comprehensive technical support and years of industry experience, AccTek CNC is the perfect partner for users seeking to explore the full potential of CNC routing in complex design applications.
Despite these challenges, most can be addressed through smart design choices, machine upgrades, and skilled operation. Recognizing these limitations helps users optimize their workflow and get the most from their CNC router.
