Mini CNC Router
Mini CNC Router

Professional mini wood cnc router 6090 cnc milling machine for carving wood

2018-01-11 17:15:32   views:

Mini CNC Router AKG6090 with 1 5kw water cooling spindle, Cast iron body, Taiwan Hiwin 15mm rails, Taiwan TBI ballscrew transmission, stepper motor and Leadshine drivers , Mach3 controller, Fuling inverter, tool sensor

Professional mini wood cnc router 6090 cnc milling machine for carving wood

Mini cnc router Main Features

1. Integral iron cast frame, solidity and stable.
2. Adopt Hiwin/PMI square rail guides and imported TBI ball screw to ensure more stable movement and high    accuracy.
3. T-slot PVC table with Aluminum profile decorative appearance beautiful design.
4. Advanced water cooling brush-less spindle ,low noise ,long time mass processing.
5. Advanced Mach3 control system with USB port / DSP for optional.
6. Compatible with kinds of software such as TYPE3,Artcam,Ucancam,etc.
Mini cnc router Technic Parameters

Model
AKM6090 wood cnc router
XYZ axis Working size
600*900*150mm
Machine body
Whole cast Iron structure
Table surface
Vacuum table with 2.2kw vacuum air pump
Transmission
Taiwan TBI Ball screw transmission
Spindle power
1.5 kw water cooling spindle
Spindle speed
0-24000 RPM
Driver
Leadshine M860 driver
Drive motor
450A Stepper motor(NEMA34) / Servo motor for optional
Max. Rapid Travel Rate
16000 mm/min
Max. Working speed
8000 mm/min
Control system
DSP /Mach3 with USB port
Software
Type3, Artcam, Ucancam
Inverter
Shanghai Fuling / Taiwan Delta for optional
Machine precision
0.01mm
Repositioning precision
0.03mm
Working voltage
AC 220/110V - single phase, 50/60HZ
Optional parts
Dust collector,Rotary device,Mist cooling system,Vacuum table,Servo motor etc.



Mini cnc router Detailed Images

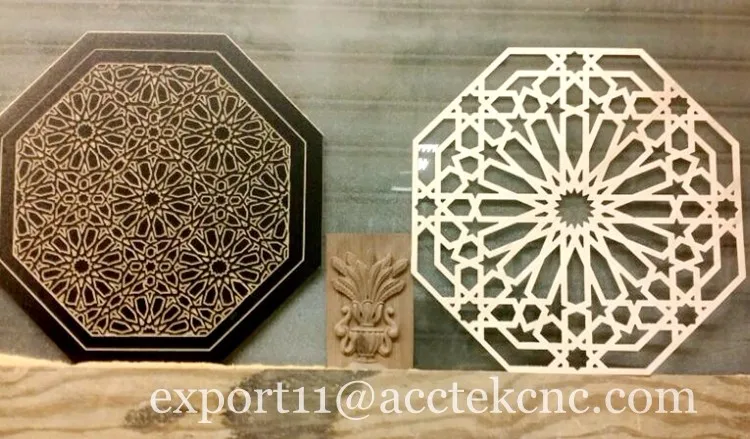

Mini cnc router Sample

\

\


Our service
1) 1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2) Lifetime maintenance free of charge.
3) Free training course at our plant.
4) We will provide the consumable parts at an agency price when you need replacement.
5) 24 hours on line service each day, free technical support.
6) Machine has been adjusted before delivery.
7) Our staff can be sent to your company to install or adjust if necessary.
\
