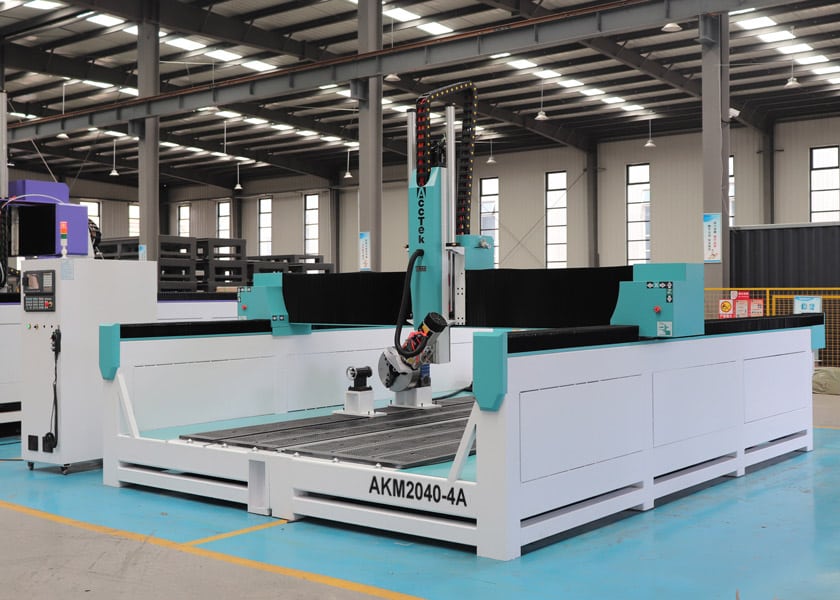

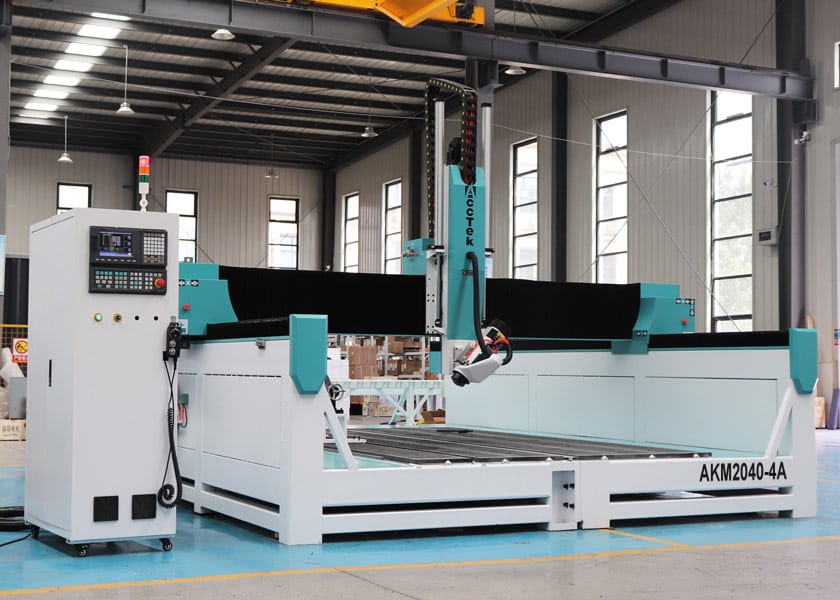

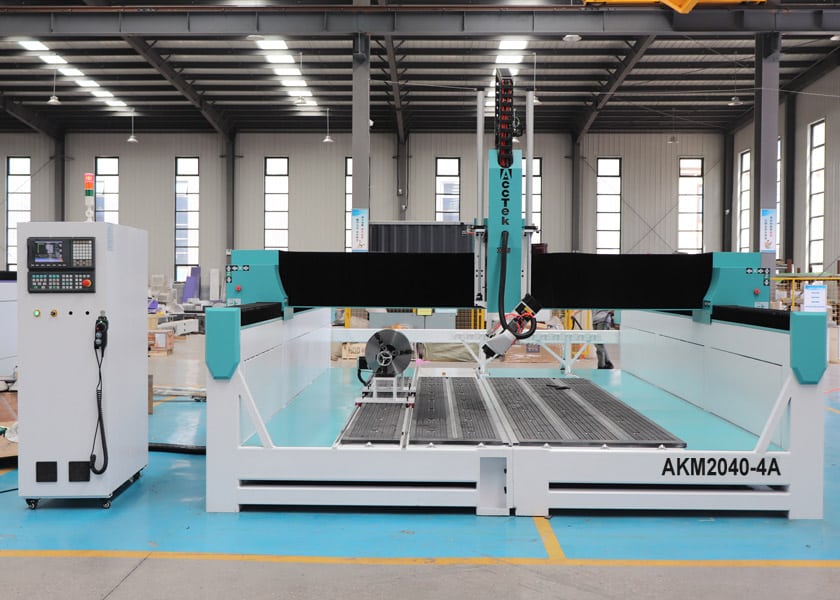

Large Working Area 2040 4 Axis CNC Router

The 4-axis 2040 CNC router is capable of controlling four different axes, enabling complex 3D engraving and other complex operations. It has a working area of 2000*3000mm.

AKM2040-4A CNC Router

(4 customer reviews)

$15,600.00

Model: AKM2040-4A
Barnd: AccTek CNC
Spindle: HQD/HSD
Drive Mode: Leadshine Easy Servo Motor (Optional Delta or Yaskawa Servo Motor) and Driver
Control System: Mach3 or Syntec 610MA-E5
Table of Contents

Product Description

The 4-axis 2040 CNC router is a versatile, high-precision machining tool suitable for complex cutting, routing, and forming tasks in a variety of industries. The machine is capable of controlling four different axes and can perform complex 3D carvings as well as other complex operations. The machine has a 2000*3000mm work area that can accommodate a variety of project sizes, including small and large applications. The machine also enables high feed rates and routing speeds, increasing efficiency and productivity. The 4-axis 2040 CNC router is an invaluable tool for a variety of industries, including woodworking, metalworking, aerospace, automotive, sign production, and more. Its large working area, high precision, and versatility make it suitable for applications requiring complex and precise machining.

Product Configuration

HSD Air-Cooled ATC Spindle

Air-Cooled ATC Spindle

The machine uses an HQD/HSD air-cooled ATC spindle, which can provide excellent power to the CNC router to easily process a variety of materials. The ATC function enables your CNC router to quickly adapt to different project needs. The innovative air-cooling design ensures efficient heat dissipation to keep the spindle in optimal condition, eliminating the need for complex water-cooling systems.

Taiwan Hiwin Guide Rail

This machine uses Taiwan Hiwin guide rails, which provide unparalleled stability, ensuring your machine’s motion is rock solid, eliminating vibration, and guaranteeing the accuracy you need. The Hiwin guide rails are durable and focus not only on accuracy but also on durability. It’s built to withstand the rigors of continuous operation, delivering the longevity and reliability professionals rely on.
Hiwin Guide Rail
Yaskawa Servo Motor

Famous Brand Motors

The machine is equipped with well-known brand motors. Leadshine easy servo motors or Yaskawa motors can be used for the X, Y, and Z axes, while Japanese Yaskawa servo motors are used for the A axis. These motors are engineered to withstand harsh industrial environments, ensuring stability, durability, and extended service life. Smooth your path to precision craftsmanship and endless creative possibilities, powered by a trustworthy motor that matches your vision.

High-Quality Reducer

The machine is equipped with high-quality reducers on the X-axis and Y-axis, with the option of Chinese brand or Shimpo and Nabtesco reducers, ensuring excellent stability and precision throughout the processing process. The reducer ensures smooth and efficient motion control, reduces the vibration of complex operating components, and optimizes accuracy. Its combination enhances the performance of CNC routers, making it ideal for numerous industries.
Japanese Shimpo Reducer
Syntec 60W-E Control System

Control System

In the world of CNC routing, control is key, and you can choose a Mach3 or Syntec 60W-E control system based on your needs. Whether you choose the classic reliability of the Mach3 or the advanced features of the Syntec 60W-E, advanced algorithms enable you to control your CNC router with extreme precision, resulting in high-quality results no matter how complex your design is.

Vacuum Worktable With Double-Stage Air Pump

The machine is equipped with a vacuum worktable that ensures the workpiece remains firmly in place throughout the CNC routing process. The powerful vacuum system grabs your material reliably and evenly, preventing unwanted movement and ensuring precise, error-free results. In addition to improving accuracy, vacuum worktables ensure a safe and clean workspace. The pump requires minimal maintenance, saving you valuable time and reducing operating costs, ensuring your CNC router operates at its best for a long time.
Vacuum Worktable With Double-Stage Air Pump
Double Bag Dust Collector

Double Bag Dust Collector

The machine features a dual-bag dust collector designed to effectively eliminate dust and debris generated during CNC operations. Equipped with dual collection bags, it ensures complete removal of waste, keeping your workspace clean and your machine running optimally. It’s more than just an accessory, it’s your commitment to cleanliness, air quality, and a more efficient workspace.

Automatic Oil Lubrication System

The machine is equipped with an automatic oil lubrication system that ensures consistent and precise lubrication of critical machine components, reducing wear and friction. Automatic oil lubrication systems eliminate the need for manual lubrication, saving time and reducing the risk of human error. It also provides optimal oil distribution, preventing over or under-lubrication.
Automatic Oil Lubrication System

Table Design Selection

Sunken Worktable

Sunken Worktable

The sunken worktable accommodates higher workpiece heights and provides flexibility for integrated rotary axes, taking your process capabilities to new heights. Additionally, a sunken worktable goes beyond the limitations of a traditional tabletop worktable by providing a solid foundation for your workpiece.

Desktop Worktable

Desktop Worktable

Benchtop worktable is all about flexibility. If you need flexibility and unrestricted handling of a variety of CNC projects, this design is the best choice for you, allowing you to load and unload materials easily and freely. It gives you adaptability and efficiency no matter what project you're working on.

Product Features

  • The 4-axis design allows precise control of four different axes, enabling the creation of 3D shapes and complex designs.
  • The machine has a large work area that can accommodate a variety of project sizes, from small-scale to larger, more extensive applications.
  • The machine is renowned for its precision and repeatability, making it ideal for complex and detailed work.
  • The machine can handle a variety of materials including wood, plastics, composites, and more, making it suitable for different industries and applications.
  • The machine can achieve high feed rates and routing speeds, thereby increasing efficiency and productivity.
  • The machine comes with user-friendly software for designing, generating tool paths, and controlling the machine, making it accessible to a wide range of users.
  • The integrated dust collection system helps maintain a clean working environment and ensures the longevity of the machine.

Technical Parameters

Model AKM2040-4A1 AKM2040-4A2 AKM2040-4A3
Working Area 2000×4000×450mm 2000×4000×500mm
Spindle Type Air Cooling Spindle
Spindle Power 6.0 KW 9.0 KW
Spindle Rotating Speed 0-18000 rpm
Worktable Type Vacuum and T-Slot Working Table
X, Y, Z Axis Motor Leadshine Easy Servo Motor Delta Servo Motor Japanese Yaskawa Servo Motor
A Axis Motor Japanese Yaskawa Servo Motor
Locating Precision <0.01mm
Working Precision ±0.03mm
System Resolution ±0.001mm
Min Shaping Character Character: 3x3mm, Letter: 2x2mm
Control System Mach3 System Syntec 610MA-E5 System
Working Temperature 5℃-40℃
Working Humidity 30%-75% (Without Condensed Water)

Product Applications

The 4-axis 2040 CNC router is a versatile machining tool suitable for a wide range of applications across various industries. Common applications include woodworking for crafting large furniture, architectural elements, and ornate sculptures. Additionally, this machine is crucial in the production of custom signage, architectural modeling, mold-making, and prototyping in industries like aerospace, automotive, and marine. Its substantial work area, high precision, and versatility make it an invaluable tool for both small-scale custom projects and larger-scale manufacturing, where intricate and precise work is essential.

Why Choose AccTek CNC?

Enjoy a 1 to 3-year warranty for the entire machine. If any problems occur during the warranty period, major parts (excluding consumables) will be replaced free of charge.
If you need installation or adjustments, we can dispatch technicians to provide you with hands-on assistance to ensure your CNC router is optimally set up.

We offer free lifetime maintenance to ensure your machine remains running at its best for years to come.

Lifetime online technical support is available, and expert help is just a message or call away, ensuring you’re never left stranded if something goes wrong.
Our CNC routers are designed and manufactured by experts who understand the ins and outs of CNC machining, ensuring the highest quality performance.
Our CNC routers offer customization and accessory options, so no matter what your project is, we can provide a solution to meet your unique needs.
