Best 2030 4-Axis CNC Router With HQD Air-Cooled ATC Spindle

The AKM2030-4A CNC router is a high-performance ATC router designed for diverse applications, offering precision, speed, and reliability. Ideal for woodworking and form engraving, it ensures superior results.

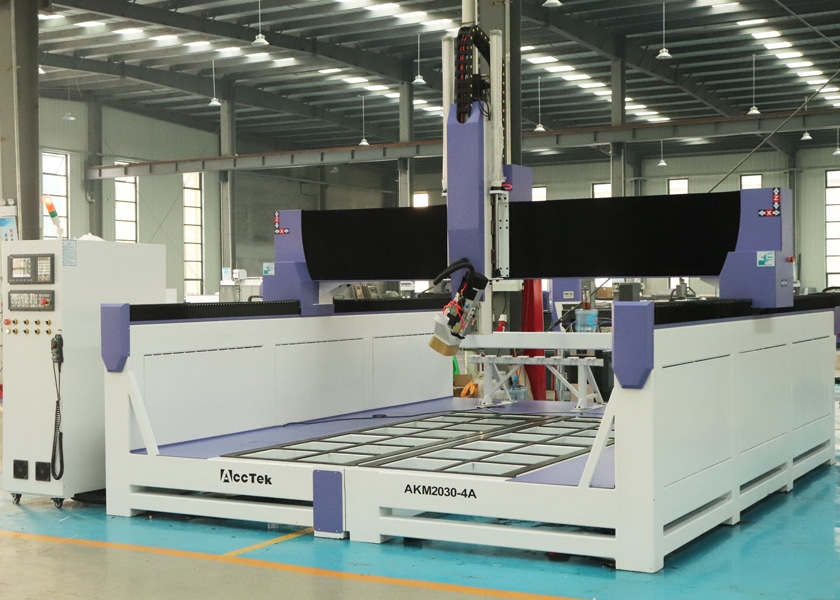

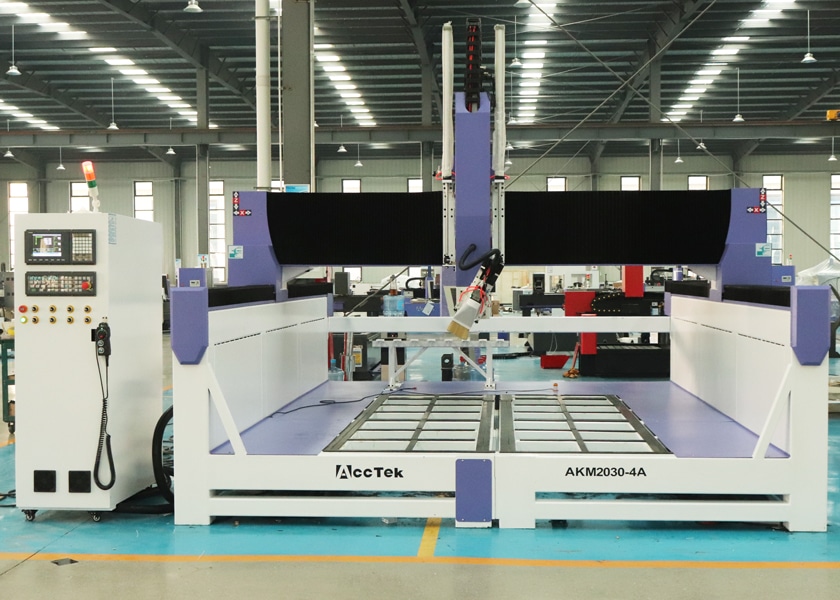

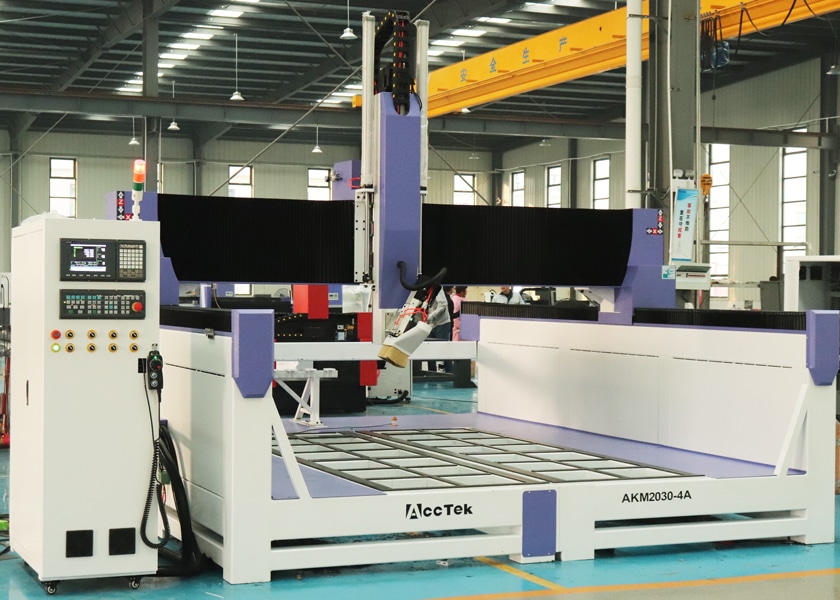

AKM2030-4A CNC Router
(4 customer reviews)

$15,200.00

Model: AKM2030-4A
Barnd: AccTek CNC
Spindle: HQD or HSD
Drive Mode: Leadshine Easy Servo Motor (Optional Delta or Yaskawa Servo Motor) and Driver
Control System: Mach3 or Syntec 610MA-E5
Table of Contents

Product Description

The AKM2030-4A CNC router is a high-performance 4-axis machining solution designed to deliver exceptional precision and efficiency in a variety of industrial applications. Equipped with an air-cooled spindle (HQD or HSD), the AKM2030-4A CNC router provides reliable, high-speed cutting with efficient cooling, reducing the need for maintenance and improving overall performance during long-duration operations.
The machine is built with Taiwan Hiwin guide rails, known for their smooth, precise motion and long-lasting durability. Combined with motors from reputable brands and a high-quality reducer, the AKM2030-4A CNC router ensures superior power transmission, smooth movement, and excellent cutting accuracy.
The router is controlled through either Mach3 or Syntec 60W-E control systems, providing intuitive programming and precise execution of complex tasks. A vacuum worktable with a double-stage air pump ensures reliable clamping of materials, improving machining stability and precision.
Additional features include a double bag dust collector for maintaining a clean workspace and an automatic oil lubrication system that minimizes friction and wear on moving parts, extending the life of the machine. The AKM2030-4A CNC router is ideal for a range of industries including woodworking, metalworking, and prototyping, offering unmatched performance and reliability.

Product Configuration

HSD Air-Cooled ATC Spindle

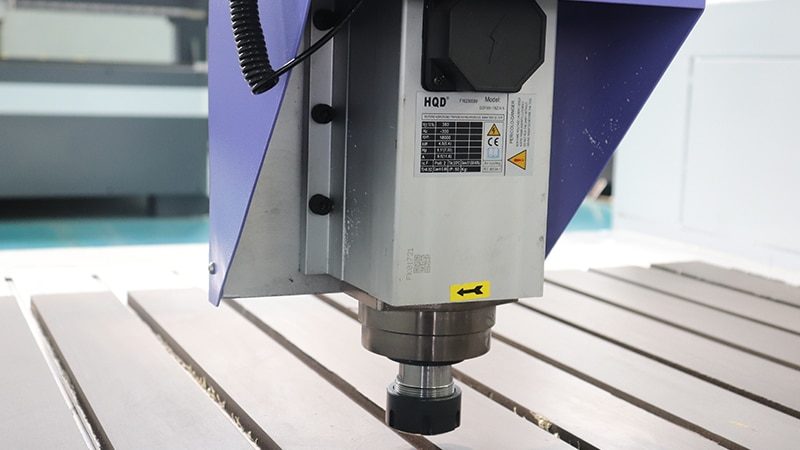

Air-Cooled Spindle

The machine features an air-cooled spindle, available in HQD or HSD models, known for their high efficiency and precision. These spindles deliver reliable, consistent performance while minimizing heat buildup, ensuring extended operational life. Their robust design supports smooth, quiet operation, making them ideal for high-demand machining tasks.

Taiwan Hiwin Guide Rail

The Taiwan Hiwin guide rail provides exceptional stability and smooth motion for the CNC router. Known for its high precision and low friction, it ensures accurate and reliable movement along all axes. This high-quality guide rail enhances the machine’s overall performance, contributing to longer service life and superior machining results.
Hiwin Guide Rail

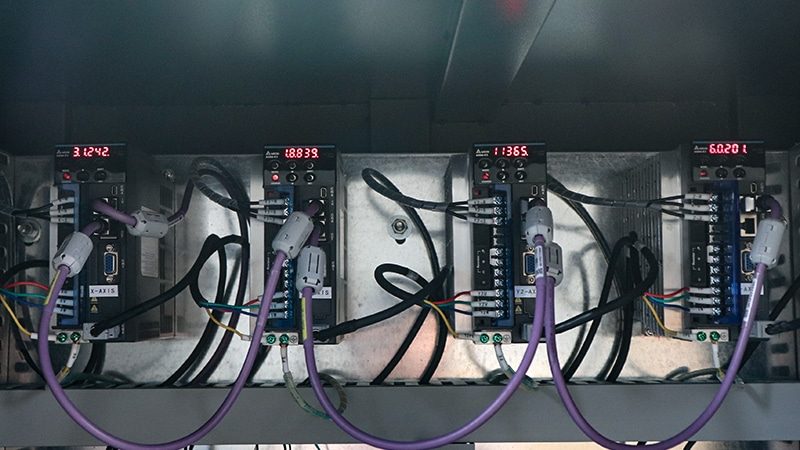

Yaskawa Servo Motor

Famous Brand Motors

The machine is equipped with high-performance motors from renowned brands for optimal precision and reliability. The X, Y, and Z axes are powered by Leadshine easy servo motors, ensuring smooth and efficient motion control. The A axis features a Japanese Yaskawa servo motor, offering exceptional durability and accuracy for complex movements.

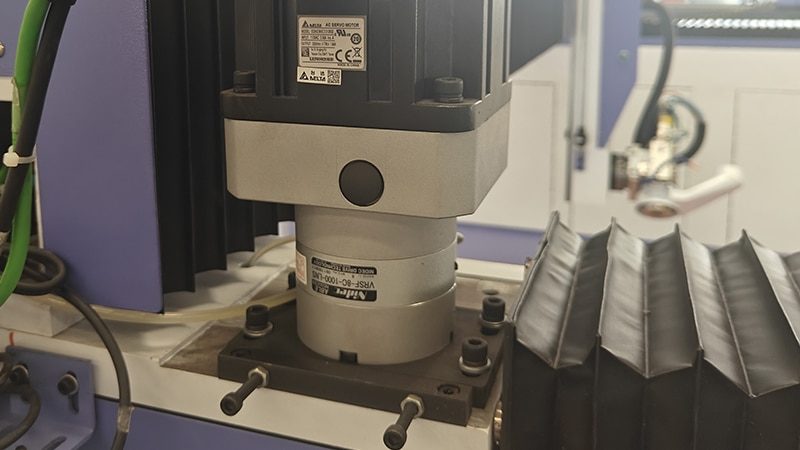

High-Quality Reducer

The machine is equipped with a high-quality reducer that ensures smooth and efficient power transmission. Designed for durability and precision, it minimizes energy loss and reduces mechanical wear, providing long-lasting performance. This premium reducer enhances the overall reliability and accuracy of the machine, even under heavy-duty conditions.
Japanese Shimpo Reducer
Syntec 60W-E Control System

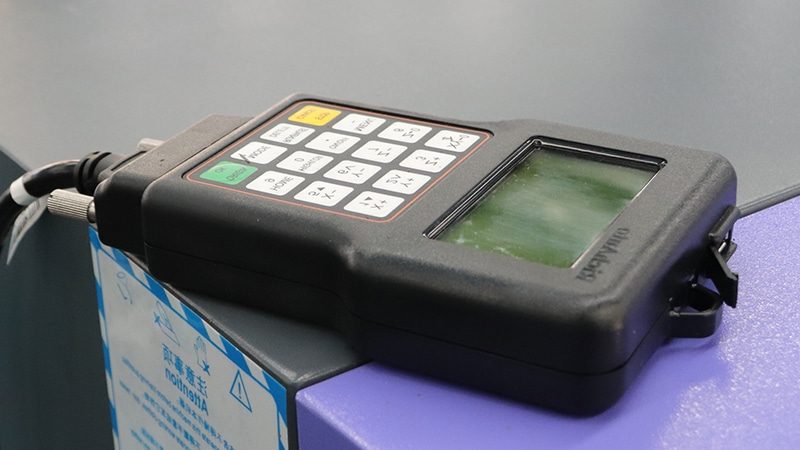

Control System

The machine is equipped with a versatile control system, offering a choice between Mach3 or Syntec 60W-E. Both systems provide intuitive interfaces and powerful processing capabilities, ensuring precise control and seamless operation. These reliable, high-performance control options optimize machining efficiency, enhancing productivity and delivering consistent results.

Vacuum Worktable With Double-Stage Air Pump

The vacuum worktable with a double-stage air pump ensures strong and consistent material fixation during machining. The double-stage air pump provides enhanced suction power, securing workpieces of various sizes with precision. This system improves stability, accuracy, and efficiency, making it ideal for complex cutting and engraving operations on a range of materials.
Vacuum Worktable With Double-Stage Air Pump
Double Bag Dust Collector

Double Bag Dust Collector

The double-bag dust collector effectively captures and filters dust and debris generated during machining. With its dual bag design, it ensures superior filtration and longer usage before needing maintenance. This system enhances the working environment by maintaining clean air quality, reducing machine wear, and improving overall efficiency in the workshop.

Automatic Oil Lubrication System

The automatic oil lubrication system ensures optimal performance by continuously distributing precise amounts of lubricant to key machine components. This system reduces friction, minimizes wear and tear, and extends the machine’s lifespan. Its self-regulating nature helps maintain consistent lubrication, improving efficiency and reducing maintenance requirements for seamless operation.
Automatic Oil Lubrication System

Table Design Selection

Sunken Worktable

Sunken Worktable

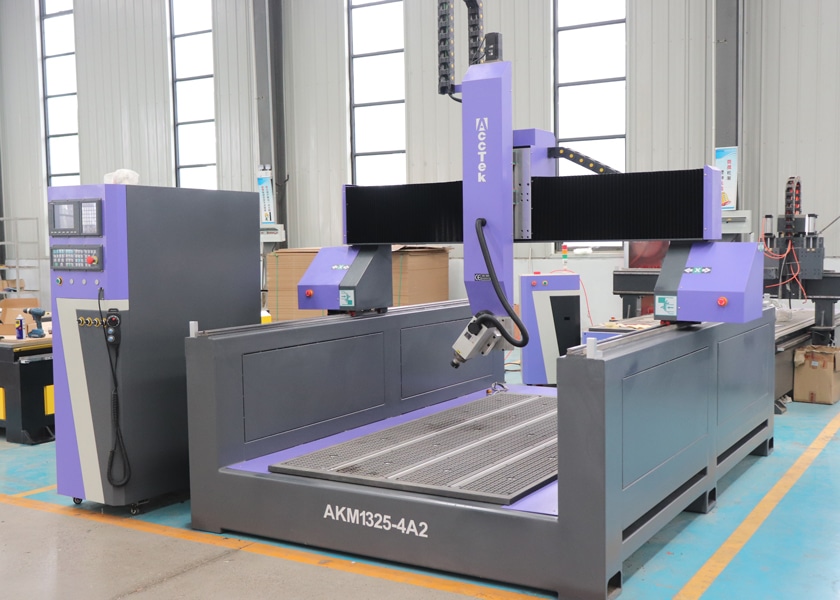

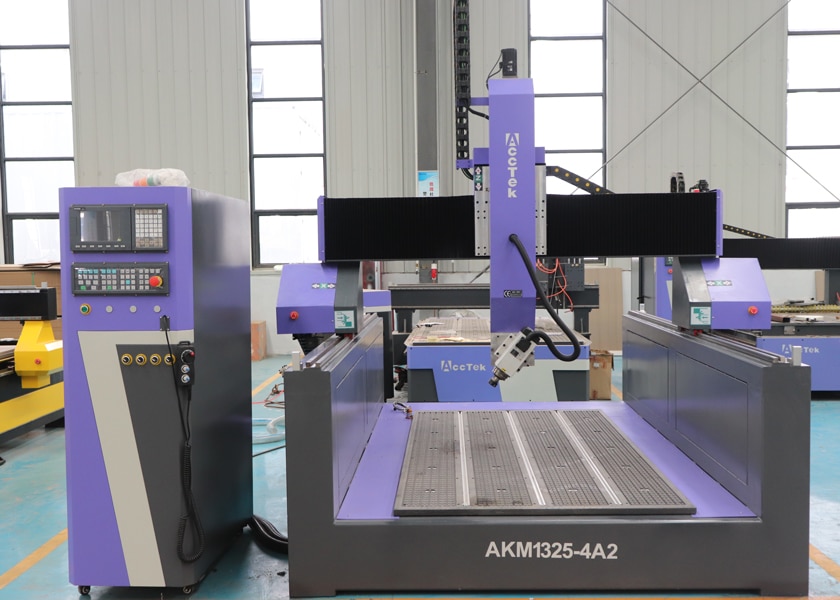

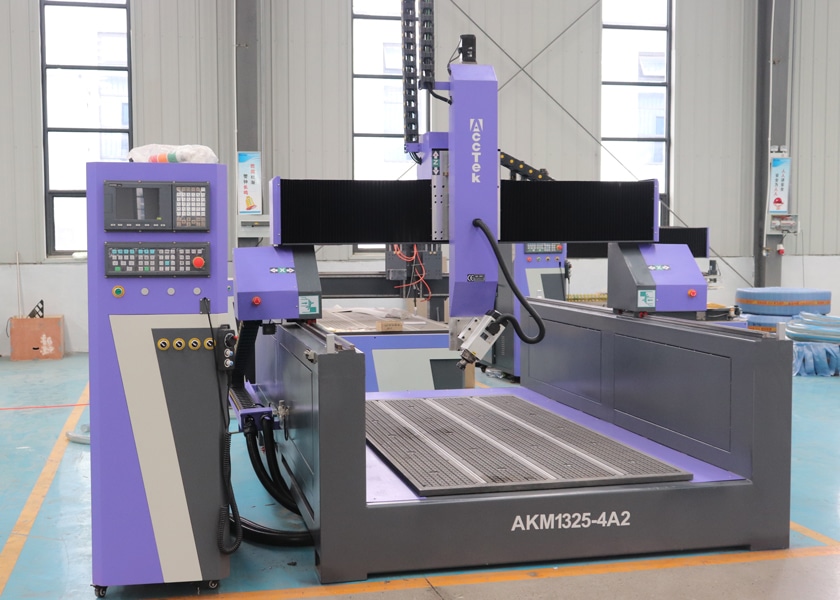

The sunken worktable is designed to accommodate taller workpieces and offers increased flexibility for integrating rotary axes, expanding your machining capabilities. Its recessed design provides a stable foundation for your workpiece, ensuring enhanced precision and stability during operations.

Desktop Worktable

Desktop Worktable

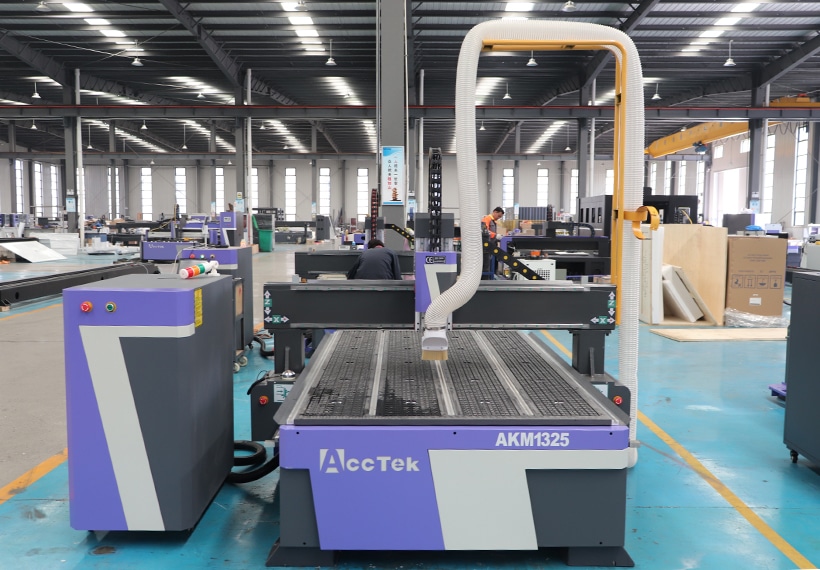

The desktop worktable offers unparalleled flexibility, making it ideal for a wide variety of CNC projects. Positioned at an accessible height, it allows for easy loading and unloading of materials. Whether you're tackling intricate details or larger projects, this design ensures optimal adaptability and efficiency for all your machining tasks.

Product Features

  • 4-Axis Machining: The machine offers versatile 4-axis functionality, allowing for advanced cutting, engraving, and milling of complex, multi-dimensional parts with high precision. This makes it ideal for intricate designs and detailed projects.
  • Air-Cooled Spindle (HQD or HSD): Equipped with a powerful air-cooled spindle, the machine ensures high-speed cutting with consistent performance and minimal heat buildup. This design eliminates the need for water cooling, making maintenance simpler and enhancing the system’s reliability during extended operations.
  • Taiwan Hiwin Guide Rails: The machine utilizes high-quality Taiwan Hiwin guide rails, known for their exceptional accuracy and durability. These rails provide smooth motion and support, ensuring precise cuts and reducing wear on the machine over time.
  • Famous Brand Motors & High-Quality Reducer: Powered by motors from well-known brands, combined with a high-quality reducer, the machine delivers smooth, efficient power transmission. This allows the router to perform reliably across a wide range of applications, from light to heavy-duty tasks.
  • Advanced Control Systems (Mach3 or Syntec 60W-E): The machine comes with a choice of control systems—Mach3 or Syntec 60W-E—providing users with intuitive programming interfaces and precise control over all machining operations. These systems enable detailed and complex designs to be executed with ease.
  • Vacuum Worktable with Double-Stage Air Pump: The router features a vacuum worktable with a double-stage air pump, providing powerful material clamping. This ensures that workpieces are securely held in place during machining, leading to improved stability and accuracy.
  • Double-Bag Dust Collector: With an integrated double-bag dust collector, the machine effectively removes debris and dust from the workspace, ensuring a cleaner and safer environment while maintaining optimal machine performance.
  • Automatic Oil Lubrication System: The automatic oil lubrication system minimizes friction between moving parts, ensuring smooth operation and extending the lifespan of the machine. This feature reduces the need for manual maintenance and helps keep the machine in top condition.

Technical Parameters

Model AKM2030-4A1 AKM2030-4A2 AKM2030-4A3
Working Area 2000×3000×450mm 2000×3000×500mm
Spindle Type Air Cooling Spindle
Spindle Power 6.0 KW 9.0 KW
Spindle Rotating Speed 0-18000 rpm
Worktable Type Vacuum and T-Slot Working Table
X, Y, Z Axis Motor Leadshine Easy Servo Motor Delta Servo Motor Japanese Yaskawa Servo Motor
A Axis Motor Japanese Yaskawa Servo Motor
Locating Precision <0.01mm
Working Precision ±0.03mm
System Resolution ±0.001mm
Min Shaping Character Character: 3x3mm, Letter: 2x2mm
Control System Mach3 System Syntec 610MA-E5 System
Working Temperature 5℃-40℃
Working Humidity 30%-75% (Without Condensed Water)

Product Applications

The AKM2030-4A CNC Router is a versatile and reliable machine designed to meet the needs of various industries. Its advanced features make it suitable for a wide range of applications, including:
  • Woodworking: The AKM2030-4A is perfect for precise cutting, engraving, and milling of wood, including furniture production, cabinetry, decorative designs, and wood prototypes. Its 4-axis capabilities allow for complex carvings and detailed 3D designs.
  • Prototyping: The AKM2030-4A is ideal for rapid prototyping and small-batch production. Whether working with plastics, composites, or metal, the machine delivers high precision and can create intricate parts for prototypes, models, and product testing.
  • Aerospace & Automotive: In these industries, the router is used for the fabrication of parts, prototypes, and tooling, where precision and repeatability are critical. The 4-axis capabilities allow for complex machining of aerospace and automotive components.
  • Mold Making: With its high precision and the ability to create complex shapes, the AKM2030-4A is widely used in mold making for industries such as plastics, rubber, and casting. The router’s capabilities allow for the creation of high-quality molds for various applications.
