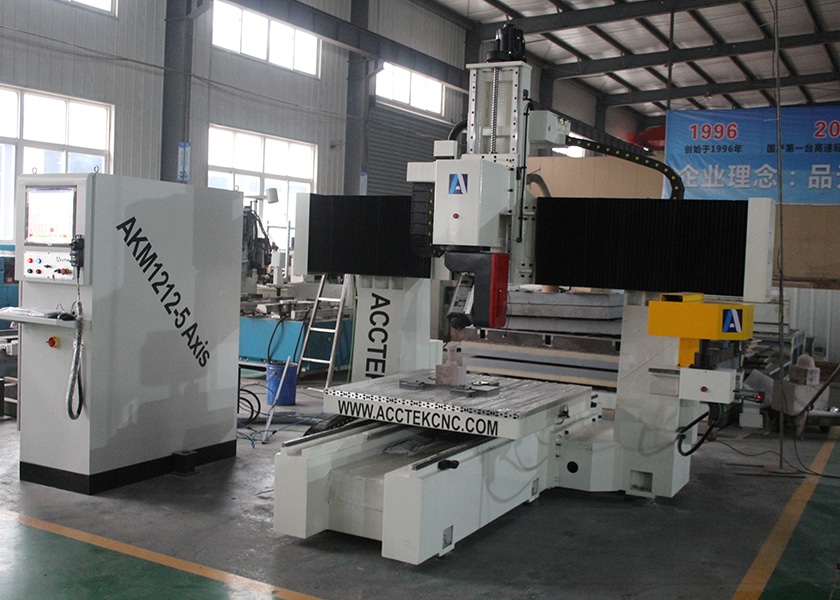

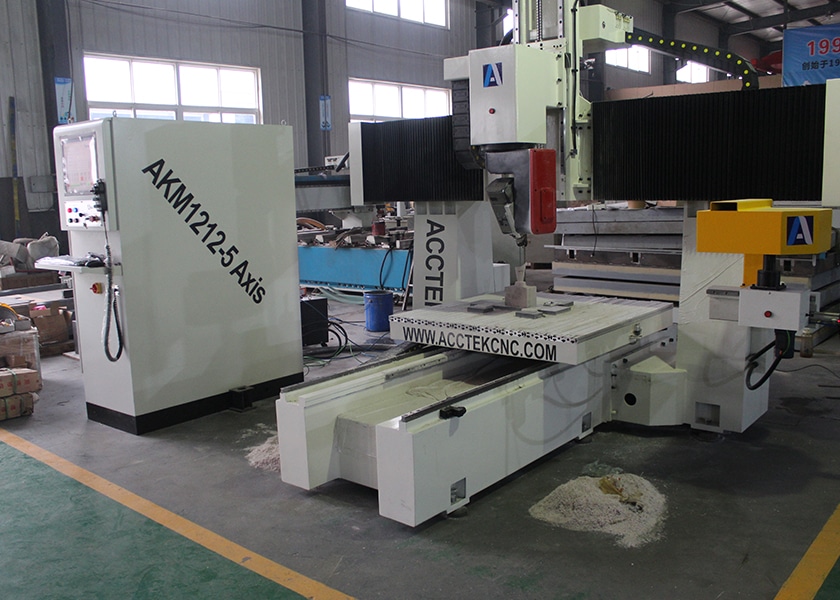

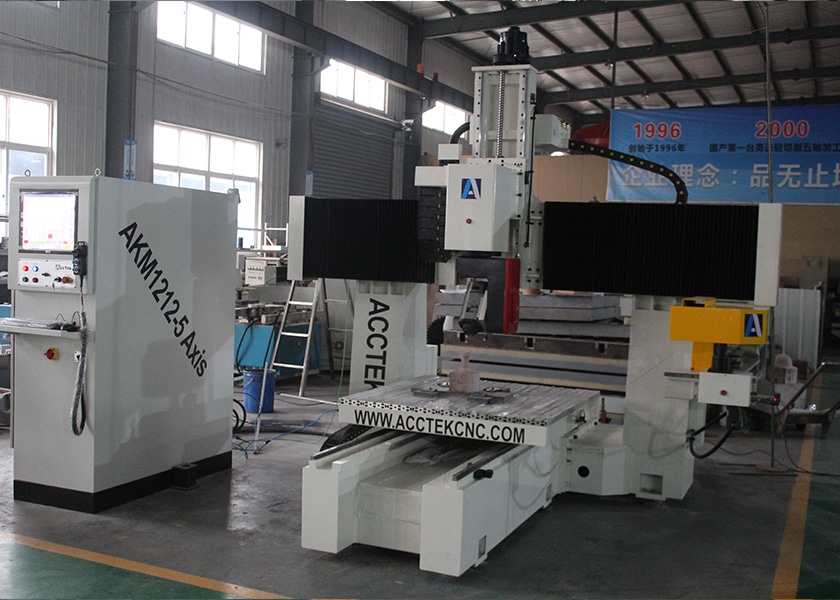

High-End 1224 5-Axis ATC CNC Router For Sale

The 5-axis 1224 ATC CNC router is a cutting-edge machining tool that combines precision and automation to deliver superior performance to a variety of industries.

AKM1224-5A CNC Router

(4 customer reviews)

$64,050.00

Model: AKM1224-5A
Barnd: AccTek CNC
Spindle: Hiteco
Drive Mode: Yaskawa Servo Motor and Driver
Control System: Syntec 610MA-E5
Table of Contents

Product Description

The 5-axis 1224 ATC CNC router is a cutting-edge machining tool that combines precision and automation to deliver superior performance to a variety of industries. This CNC router has five axes, allowing it to move in multiple directions simultaneously, providing greater versatility when creating complex designs. The machine features a 1200×2400mm (approximately 4ft x 8ft) work surface, providing ample space for a variety of applications. The ATC function allows the machine to automatically change cutting tools, streamlining the production process and reducing downtime. With high precision, large work area, and automatic tool change, the 5-axis 1224 ATC CNC router is ideal for industries such as woodworking, aerospace, automotive, and others that require complex and high-quality parts. This CNC router is a powerful asset for businesses looking to enhance their manufacturing capabilities and improve overall productivity.

Product Configuration

Italian Hiteco 5-Axis Water-Cooled Spindle

Italian Hiteco 5-Axis Water-Cooled Spindle

The machine uses a Hiteco 5-axis water-cooled spindle. It is designed for 5-axis CNC machines and uses a water cooling system to maintain ideal operating temperatures. This precision spindle ensures consistently high performance, making it suitable for use in industries requiring complex, multi-directional machining. Water cooling enhances heat dissipation and extends spindle life, resulting in better-cut quality and increased efficiency.

Taiwan Syntec 610MA-E5 System

The machine is equipped with Taiwan’s Syntec 610MA-E5 system, which provides advanced features for precision machining, automation, and flexibility. It can be a CNC router capable of precisely controlling multi-axis motion, spindle speed, and tool changes. The Syntec 610MA-E5 system features a user-friendly interface, powerful processing capabilities, and good compatibility with a variety of machine types.
Taiwan Syntec 610MA-E5 System
Vacuum Worktable With Double-Stage Air Pump

Vacuum Worktable With Double-Stage Air Pump

The machine is equipped with a vacuum worktable that ensures the workpiece remains firmly in place throughout the CNC routing process. The powerful vacuum system grabs your material reliably and evenly, preventing unwanted movement and ensuring precise, error-free results. In addition to improving accuracy, vacuum worktables ensure a safe and clean workspace. The pump requires minimal maintenance, saving you valuable time and reducing operating costs, ensuring your CNC router operates at its best for a long time.

Yaskawa Servo Motor

The machine uses Yaskawa servo motors, which can work seamlessly with Yaskawa motion controllers and drives to precisely control speed, position, and torque, resulting in excellent precision and accuracy. The motor offers fast response times and is able to quickly adapt to changes in position and speed, allowing it to handle dynamic and demanding tasks.
Yaskawa Servo Motor
Hiwin Guide Rail

Taiwan Hiwin Guide Rail

This machine uses Taiwan Hiwin guide rails, which provide unparalleled stability, ensuring your machine’s motion is rock solid, eliminating vibration, and guaranteeing the accuracy you need. The Hiwin guide rails are durable and focus not only on accuracy but also on durability. It’s built to withstand the rigors of continuous operation, delivering the longevity and reliability professionals rely on.

Japanese SMC Pneumatic Element

The machine uses a Japanese SMC pneumatic element to ensure precise control of clamping, tool changing, and workpiece positioning, helping to achieve high machining accuracy. Its sturdy construction and long service life reduce maintenance downtime and increase the overall efficiency of the machine. Additionally, it provides efficient air management, ensuring fast and reliable tool changes.
Japanese SMC Pneumatic Element
Double Bag Dust Collector

Double Bag Dust Collector

The machine features a dual-bag dust collector designed to effectively eliminate dust and debris generated during CNC operations. Equipped with dual collection bags, it ensures complete removal of waste, keeping your workspace clean and your machine running optimally. It’s more than just an accessory, it’s your commitment to cleanliness, air quality, and a more efficient workspace.

Automatic Oil Lubrication System

The machine is equipped with an automatic oil lubrication system that ensures consistent and precise lubrication of critical machine components, reducing wear and friction. Automatic oil lubrication systems eliminate the need for manual lubrication, saving time and reducing the risk of human error. It also provides optimal oil distribution, preventing over or under-lubrication.
Automatic Oil Lubrication System

Table Design Selection

Sunken Worktable

Sunken Worktable

The sunken worktable accommodates higher workpiece heights and provides flexibility for integrated rotary axes, taking your process capabilities to new heights. Additionally, a sunken worktable goes beyond the limitations of a traditional tabletop worktable by providing a solid foundation for your workpiece.

Desktop Worktable

Desktop Worktable

Benchtop worktable is all about flexibility. If you need flexibility and unrestricted handling of a variety of CNC projects, this design is the best choice for you, allowing you to load and unload materials easily and freely. It gives you adaptability and efficiency no matter what project you're working on.

Product Features

  • The machine can move simultaneously in five different axes and can perform complex 3D machining, making it suitable for complex and detailed work.
  • The machine’s worktable size is 1200x2400mm, providing a spacious work area that can accommodate large workpieces and multiple setups.
  • The ATC feature allows automatic tool changes during operation, eliminating the need for manual tool changes, reducing downtime, and increasing productivity.
  • The machine is designed for exceptional precision and accuracy for applications requiring tight tolerances and intricate details.
  • The machine works with a variety of materials including wood, plastics, composites, and more, providing versatility for a variety of industries and applications.
  • The machine is built with a strong and durable frame that minimizes vibrations and ensures stability during high-speed machining operations.
  • The machine comes with a user-friendly control system and software that enables the operator to program and control the machine efficiently.
  • The machine features a high-speed spindle for efficient material removal and surface finishing for a wide range of applications.

Technical Parameters

Model AKM1212-5A AKM1224-5A AKM1325-5A AKM1530-5A
Working Area 1200x1200x600mm 1200×2400×600mm 1300×2500×600mm 1500×3000×600mm
C Axis (Rotary Axis) ±360°
B Axis (Swing Axis) ±110°
Framework Cast steel structure
Spindle Italian Hiteco 10kw 5-axis spindle with industry water chiller
Rotating Speed 6000-24000 rpm/min
Tool Magazine Disc-type ATC (with 8 tools) or Linear-type ATC (with 8 tools)
Drive Motors Yaskawa servo motor
Guide Rail Hiwin 30mm linear guide rail
X, Y, Z Axis Transmission X, Y axis rack and pinion rack, Z axis Taiwan TBI ball screw
Repositioning Accuracy ±0.03mm
Control System Taiwan syntec 610MA-E5 system

Product Applications

The 5-axis 1224 ATC CNC router is widely used in different industries due to its advanced features. It excels at precision machining and complex engraving tasks and is suitable for creating complex three-dimensional components, molds, and artwork. Common applications include woodworking for complex furniture, cabinetry and decorative carvings, metal processing for aerospace and automotive parts, plastic processing for prototypes, and composite manufacturing. Its versatility extends to the production of architectural elements, signage, and detailed sculptures. In any industry, high precision, intricate detailing, and automated tool changes help achieve superior results.

Why Choose AccTek CNC?

Enjoy a 1 to 3-year warranty for the entire machine. If any problems occur during the warranty period, major parts (excluding consumables) will be replaced free of charge.
If you need installation or adjustments, we can dispatch technicians to provide you with hands-on assistance to ensure your CNC router is optimally set up.

We offer free lifetime maintenance to ensure your machine remains running at its best for years to come.

Lifetime online technical support is available, and expert help is just a message or call away, ensuring you’re never left stranded if something goes wrong.
Our CNC routers are designed and manufactured by experts who understand the ins and outs of CNC machining, ensuring the highest quality performance.
Our CNC routers offer customization and accessory options, so no matter what your project is, we can provide a solution to meet your unique needs.
