3 axis CNC Router

Woodworking machinery cnc router machine AKM1325 of wood door funiture

2018-09-20 14:33:24   views:

If you interest in it, pls feel free to contact me: E-mail: export31@acctekcnc.com Whatsapp: +86 17853465932

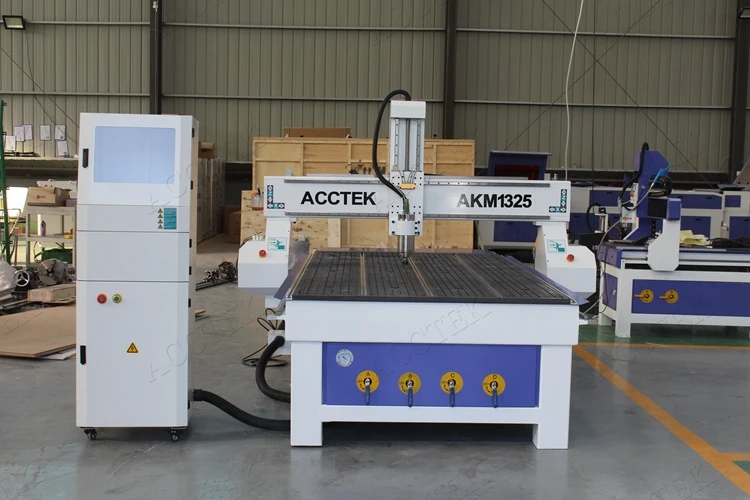

Woodworking machinery cnc router machine AKM1325 of wood door funiture

Product Description



cnc router machine AKM1325:





Main Features of cnc router machine AKM1325:



1. It is widely used for production of cabinet door, solid wooden door, computer desk, assembling furniture and large area and mass engraving on MDF and HDF, wood board, plane cutting,3D embossment and so on.
2.X.Y axis gear trasmission,Z axis Taiwan TBI ballscrew transmission.
3.T-slot working table with 3.0kw.
4. Mach3 control system, independent keyboard control.
5. High accurancy 20mm Hiwin/PMI linear guide rail and TBI ball screw imported from Taiwan, plus XINYUE rack and pinion, ensure the machine work high accurancy and stability.



Technical Parameters of cnc router machine AKM1325:



1 Mold name woodworking cnc router AKM1325
2 Working area 1300*2500*200mm
3 Spindle type water cooling spindle / air cooling spindle
4 Spindle power 3.0/4.5 /5.5kw
5 Spindle rotating speed 0-24000rpm/18000rpm
6 Power supply 220v±10, 50 HZ(AC380v)
7 Worktable vacuum/t-slot working table
8 Operating temperature 5°C-40°C
9 Working humidity 30%-75%(without condensed water)
10 Working precision ±0.03mm
11 System resolution ±0.001mm
12 Control configuration Mach3 control system
13 Data transfer interface USB/PC
14 Graphic format supported G code: *.u00, * mmg, * plt, *.nc
15 Compatible software ARTCAM, UCANCAM ,Type3
16 Net weight 950KG
17 Gross weight 1100KG



Sample



AKM1325 CNC Machine working samples:

1) Mould: wood,wax, wood, gypsum,foams,wax.
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

cnc machine price.jpg
cnc router machine08.jpg

Detailed Images



Detail images of cnc router woodworking machine AKM1325:


>> Changsheng 3.0kw water cooling spindle, rotate speed 0-24000rpm. Z axis by Taiwan TBI ball screw.


>> Oil Lubrication.


>> T shot and Vacuum working table.


>> Shanghai Fuling inverter, filter and power leakage protector,voltage transformer.

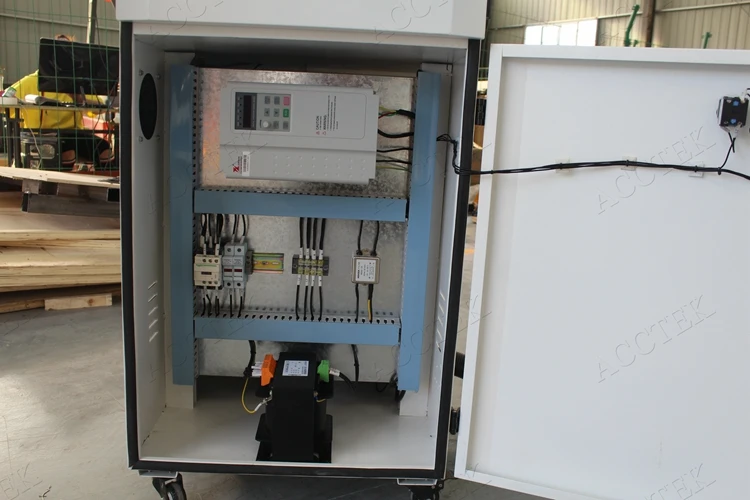

>> Controller cabinet: Leadshine M860 drivers, Mach3 controller card.



Packaging & Delivery

ACCTEK cnc machine Packing & Delivery:




Payment:

1)Fast money transfer mode: Paypal / Western Union.

2)T/T , also called wire transfer, you can pay 30% in advance, 70% before delivery.

3)Trade assurance on alibaba, this is very popular way recent years, can use visa/matercard/e-checking, very easy.



\


ACCTEK cnc machine after sale services:



♥ 24 hours technical support by Email or Calling.

♥ English manual and CD video for machine using and maintaining.

♥ Hardware: 1 years on all parts (without person damaged).

                     Software: Whole life on update for free.

                     Maintenance and technological support: Whole life.

♥ Engineers available to service machinery overseas.




Contact Information


Contact information:

Cathy Wang

Whatsapp&Wechat: +86-17853465932

Skype: export31 @ acctekcnc.com

Email: export31 @ acctekcnc.com
Jinan AccTek Machinery Co.,Ltd
