CNC Router for Stone

4*8 feet 1325 Two spindle Stone cutting machine ,3D stone cnc router engraving

2017-08-09 17:33:37   views:

1325 stone cnc machine for stone and wood

4*8 feet 1325 Two spindle Stone cutting machine ,3D stone cnc router engraving

>>>>>>>Two indenpendent spindle motor stone cnc router (1300*2500*300mm working area )


1.Applicable Materials of marble/granite stone cnc router


Granite, marble, Qingshi, sandstone, and other stone carvings.Granite and other hard stone carving to be at level 5 mm. Marble, Qingshi, can be a sculpture to 5 mm.


2.Machine Character of marble/granite stone cnc router

1. Welded lathe bed of profile steel, stabilizing treated under high temperature.

2. The bed height is lower for put on the heavy stone easily.

3. Y axis with double motors to drive that ensure stable and precise performance.

4. This machine adopt high precision rack and pinion transmission and Hiwin linear square guide rail way ensure high accuracy,fast speed,heavy-duty with long service life.

5. Feeler block make the machine working more precisely.

6. T-slot worktable with clamps can hold the workpieces tightly.

7. Tank wall is stainless steel in case of being rusty while touch water.

8. Dustproof and waterproof design of all axes give full protection of the machine’s transmission parts.

9. 3.0kw-8.0kw spindle is optional.

10. Rotary device for cylinder materials is optional.

11. Software compatibility: compatible with Typ3/Artcam/Castmate / Wentai, and other CAD / CAM design software.

3.Parameter of marble/granite stone cnc router

Model: AKS1325-2
X,Y-axis working area 1300*2500mm
Body dimensions(with bracket) 2900*1750*1400mm
Z-axis working area 150 or 200 mm
Max. Feeding height 120mm or bigger
Cutting thickness of material ≤40mm
Max. travelling speed 8000mm/min
Engraving speed 0-6000mm/min
Mechanical precision 0.01mm
Compatible Software Type 3 software , Artcut software , Artcam software
Max. Power consumption 3.2KW
Power source 220V/380V
Driving system Stepper motor
Memory Without or DSP
Spindle 5.5KW spindle , water-cooled
Spindle speed 0-24000RPM
Blade diameter 3.175mm,4mm,6mm
Control system DSP, USB offline
Command G code, Uoo, mmg, plt, HPGL
Running ambient temperature 0-45°C
Relative humidity 30%-75%
Optional items Rotary axis , vacuum table and dust collector

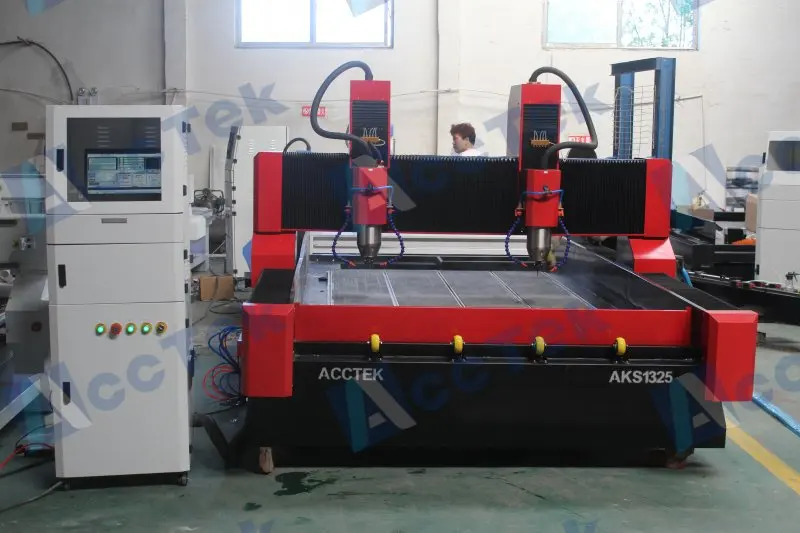

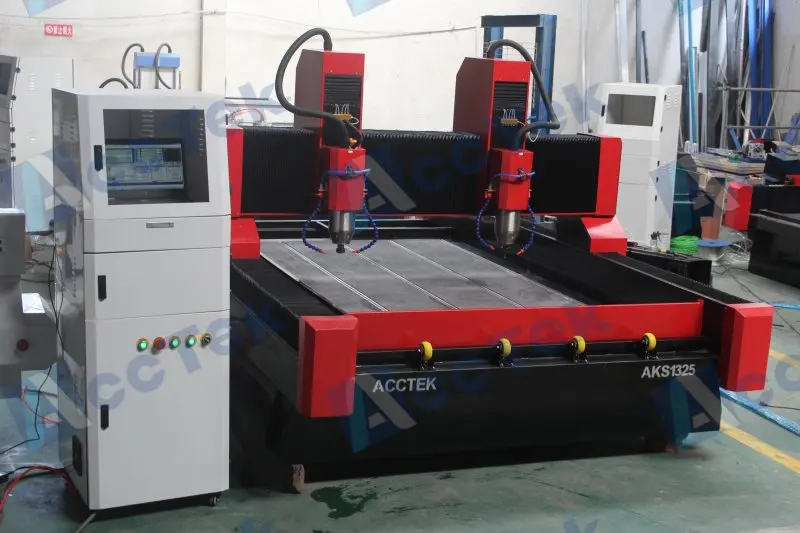

4.Detailed photos OF marble/granite stone cnc router

1.5.5KW spindle motor





 6.samples of marble/granite stone cnc router
