Automatic tool changer CNC Router

ATC cnc router machine wood making cnc machine AKM1325C

2018-10-08 17:14:43   views:

If you interest in it, pls feel free to contact me: E-mail: export31@acctekcnc com Whatsapp: +86 17853465932

ATC cnc router machine wood making cnc machine AKM1325C

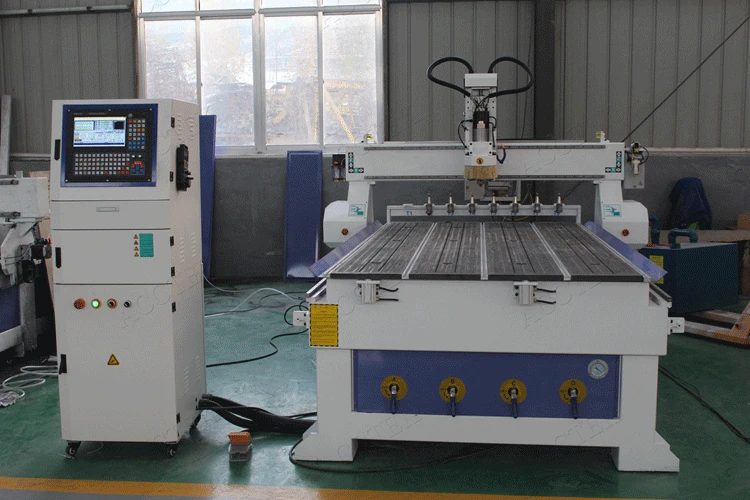

1.Photo of cnc router machine AKM1325C.



2.Main Features of cnc router machine AKM1325C.



# Heavy duty structure

# Working area: 1300*2500*250mm

# 5.5kw Changsheng water cooled ATC spindle (24000rpm)

# Mach3 control system

# Leadshine easy servo motor HBS758

# Transmission: X,Y axis by gear, Z axis Taiwan TBI ball screw

# Taiwan high precision 25mm linear square guide rails

# Delta inverter

# Table: T-slot&Vacuum table and 5.5kw water vacuum pump

# Tool sensor

# 3.0kw double bags dust collector

# 8pcs linear tool changer

# Standard tools box for installation and maintence

# Manual book and 8GB flash disk for manual instruction

# ArtCAM software included



3.Technical Parameters of cnc router machine AKM1325C.



Machine name ATC cnc router woodworking machine AKM1325C
X,Y,Z Working Area 1300*2500*250mm
X,Y,Z Traveling Positioning Accuracy ±0.01/300mm
X,Y,Z Repositioning Accuracy: ±0.03mm/300mm
Table Surface T-slot and Vacuum working table
Frame Heavy Steel Tube Structure
X, Y Structure Rack and Pinion Drive,Hiwin Rail Linear Bearings
Z Structure Hiwin Rail Linear Bearings and Ball Screw
Max. Power Consumption (Without Spindle) 5.8Kw
Max. Rapid Travel Rate 30000mm/min
Max. Working Speed 11000mm/min
Spindle Power 5.5kw Changsheng water cooling ATC spindle
Spindle Speed 0-24000RPM
Drive Motors Leadshine easy servo motor HSB758
Working Voltage AC380V/50/60Hz,3PH (Option: 220V))
Command Language G Code
Operating System Mach3 control system
Computer Interface USB / Ethernet
Collet ER32
X,Y Resolution <0.03mm
Software Compatibility Type3/UcancameV9 software (Option: Artcam software)
Running Environment Temperature 0 - 45 Centigrade
Relative Humidity 30% - 75%
Packing Size 3990*2280*2300mm
N.W. 1300KG
G.W. 1600KG


 4.Detail images of cnc router woodworking machine AKM1325C.

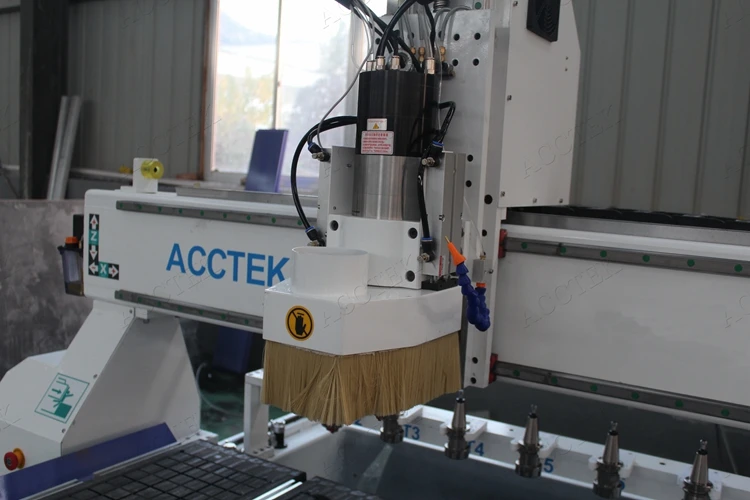

(1).Changsheng water cooling spindle, rotate speed 0-24000rpm. Z axis by Taiwan TBI ball screw.

cnc router10.jpg



(2).8pc linear tool changer.



cnc router08.jpg



(3).T-slot&vacuum working table with aluminum profile and PVC.



cnc router04.jpg



(4).Controller cabinet: Delta inverter, Leadshine easy servo motor HSB758 and driver.



cnc router06.jpg



5.Optional parts for cnc router machine.



   Air cooling spindle motor,Rotary axis.



cnc router machine1.jpg



6.AKM1325C cnc machine working samples.



1) Mould: wood,wax, wood, gypsum,foams,wax.
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

 cnc router13.jpg

cnc machine12.jpg

 cnc router12.jpg

7.Acctek cnc router packaging & delivery.



 We use the Plywood packages case to package products.It will leave the goods in good condition.






8.After sale services.



1)24 hours technical support by Email or Calling.

2)English manual and CD video for machine using and maintaining.

3)Hardware: 1 years on all parts (without person damaged).

                     Software: Whole life on update for free.

                     Maintenance and technological support: Whole life.

4)Engineers available to service machinery overseas.



 company (3).jpg



.jpg



9.About payment.



1)Fast money transfer mode: Paypal / Western Union.

2)T/T , also called wire transfer, you can pay 30% in advance, 70% before delivery.

3)Trade assurance on alibaba, this is very popular way recent years, can use visa/matercard/e-checking, very easy.






10.Contact information.



Cathy Wang

Whatsapp&Wechat: +86-17853465932

Skype: export31 @ acctekcnc.com

Email: export31 @ acctekcnc.com
Jinan AccTek Machinery Co.,Ltd
