Automatic tool changer cnc router

Linear ATC cnc router machine 1325 for door cabinet making , wood cnc engraver

2017-04-19 09:44:55   views:

1 Working area: 1300*2500*200mm 2 It is widely used for production of cabinet door, solid wooden door, computer desk, assembling furniture and mass engraving on MDF and HDF, wood board, plane cutting,3D embossment and so on


 Linear ATC cnc router machine 1325 for door cabinet making , wood cnc engraver machine


Product Description

1. It is widely used for production of cabinet door, solid wooden door, computer desk, assembling furniture and large area and mass engraving on MDF and HDF, wood board, plane cutting,3D embossment and so on.

2. Configured with imported tool magazine of 8 tools the machine can change tools speedy and freely.

3. ATC tool sensor enables the machine compensate the tolerance of the tool length.

4. Vacuum working table with 5.5kw water vacuum pump/Yongdun oil free vacuum pump with high absorption power.

5. Mach3/Imported Taiwan Syntec control system, independent keyboard control.



6. High accurancy 25mm Hiwin/PMI linear guide rail and TBI ball screw imported from Taiwan, plus XINYUE rack and pinion, ensure the machine work high accurancy and stability.

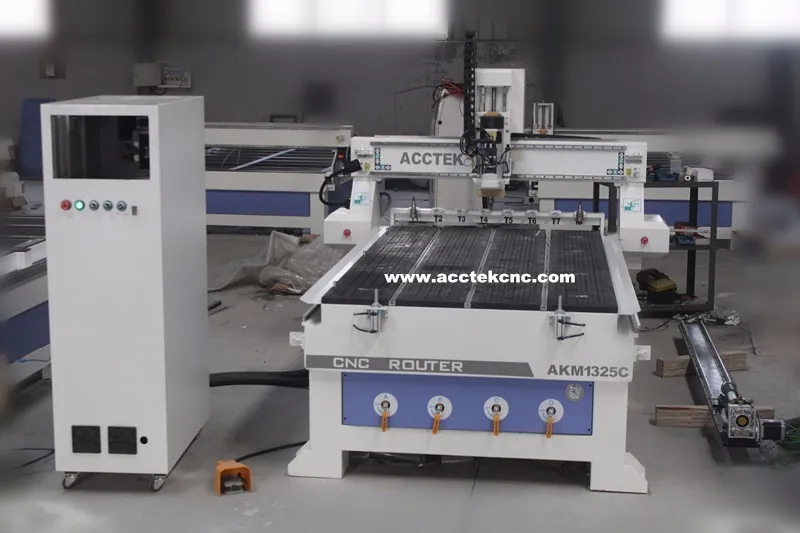

Machine Images
Technicial Parameter
Working area
1300x2500x250mm
Spindle type
Chinese/Italy HSD Air cooled spindle / Water cooled spindle
Spindle power
5.5kw / 9.0kw
Spindle rotating speed
0-18000rpm / 24000rpm
Transmission
X,Y axis use guide rail and rack, Z axis use TBI ball screw and guide rail.
Power (except spindle power)
5.8KW (include powers of: motors, drivers, inverters and so on)
Power supply
AC380±10, 50/60 HZ
Worktable
T-slot & Vacuum working table
Locating precision
<0.01mm
Min shaping character
Character:2x2mm,letter:1x1mm
Operating temperature
5°C-40°C
Working humidity
30%-75%(without condensed water)
Working precision
±0.03mm
System resolution
±0.001mm
Control configuration
Mach3 control system / Taiwan Syntec for optional
Data transfer interface
PC
System environment
Windows XP/ Windows 7
Spindle cooling mode
Air cooling / water cooling for optional
Graphic format supported
G code: *.u00, * mmg, * plt, *.nc
Compatible software
ArtCAM, UCANCAM ,Type3 and other CAD or CAM softwares
Cutting thickness
0-40mm also (depends on different material)
Z tool censor
Yes
Packing
Customized Plywood case (veneer wood case for export)
Detailed Images


\

\

\

\
\
\

Linear auto tools changer device, total 8pcs.

Optional Parts:

\



Installing Details

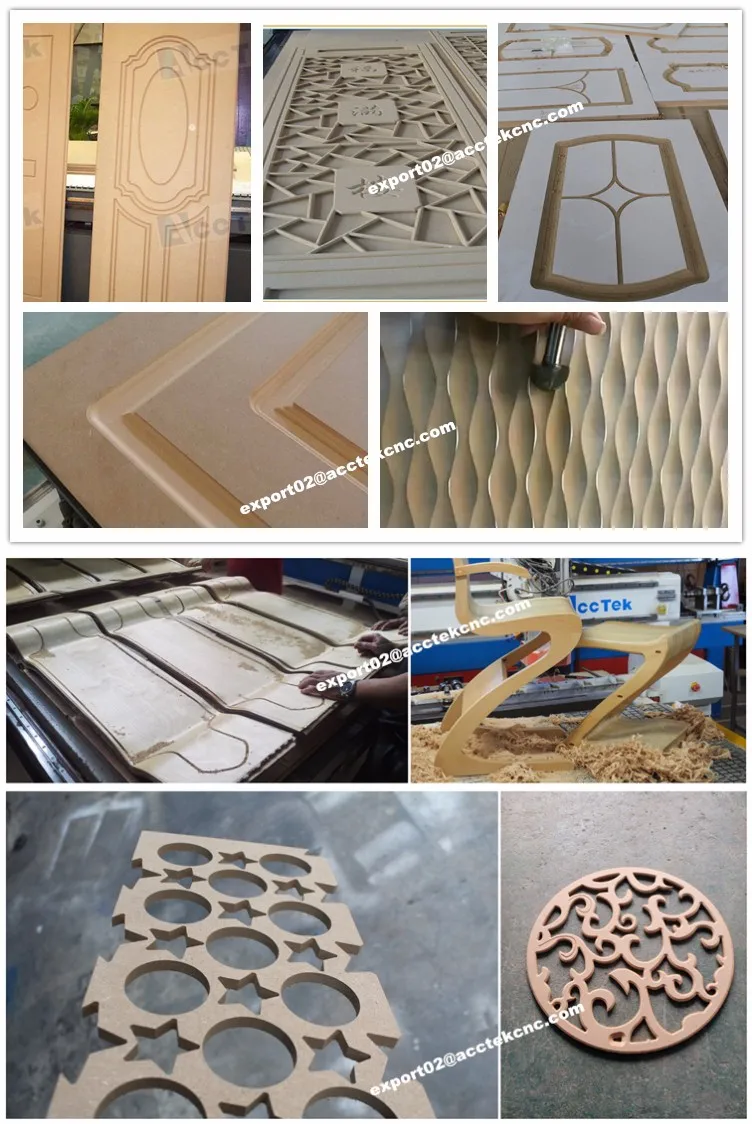

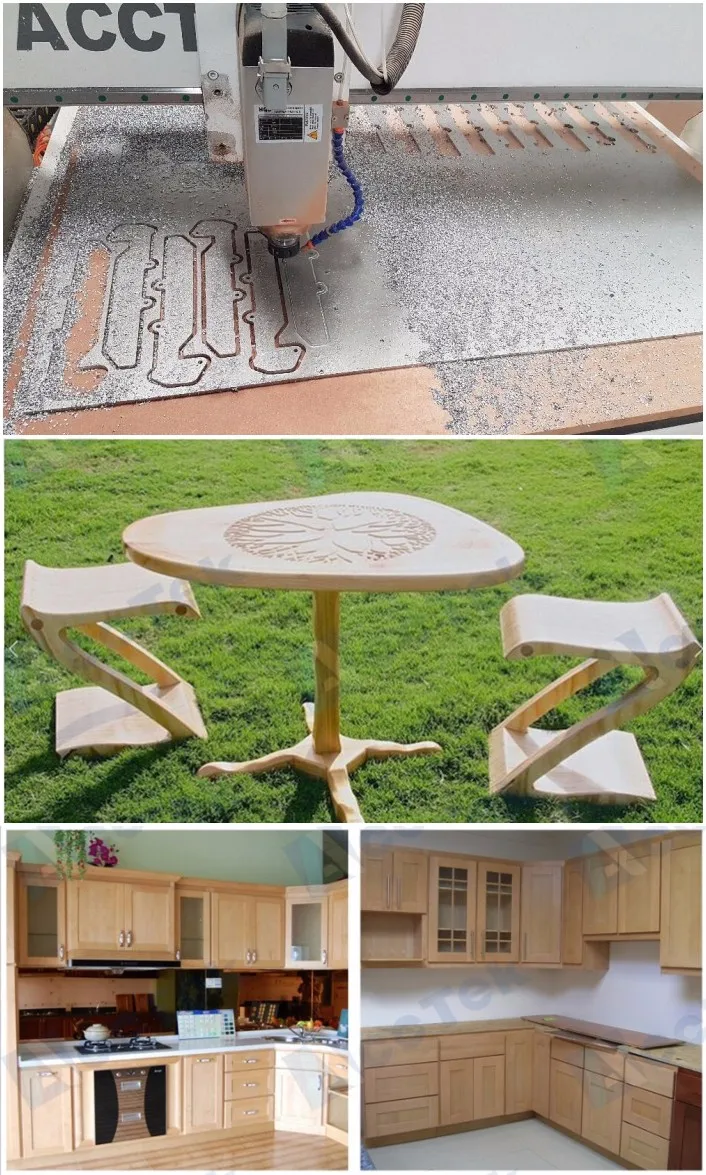

Working samples

This machine is specially designed for home furniture,such as bed, cabinet, windows, doors and indoor decoration. It can also work for many kinds of products,for example:

1) Mould: wood,wax, wood, gypsum,foams,wax.
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Our Service


Our Business is To Improve Your Business !!!

1.1 year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.

\\
