Hot sale!!! Mini cnc router wood cnc engraving machine AKG1224

2018-09-17 10:28:14   views:

If you interest in it, pls feel free to contact me: E-mail: export31@acctekcnc com Whatsapp: +86 17853465932
Hot sale!!! Mini cnc router wood cnc engraving machine AKG1224

\

\

1.Standard configurations of cnc router machine.



# Iron cast steel structure
# AC 220V-single phase, 50/60HZ
# Working area: 1200*2400*200mm
# 1.5kw Changsheng water cooling spindle (24000rpm)
# Mach3 control system
# NEMA34 Stepper motor and Leadshine M860 driver
# Transmission: X,Y,Z axis by Taiwan TBI ball screw
# Taiwan high precision 20mm linear square guide rails
# Table: T slot&vacuum working table
# Shanghai Fuling inverter
# Tool sensor for calibration
# 1 set of advertising cutting bit
# Standard tools box for installation and maintence
# Manual book and 8GB flash disk for manual instruction
# ArtCAM software included


2.Parameters data of 1224 cnc router machine.

1
Model Name Wood cnc router AKG1224
2 X Y Z working area  1200*2400*200mm
3 Whole structure  Cast iron structure
4 Table surface T-slot&vacuum table
5 Movement parts Taiwan TBI Ball screw transmition
6 Spindle Water cooling spindle
7 Spindle speed 24000 RPM
8 Motor NEMA34 stepper motor
9 Driver Leadshine M860 driver
10  Max. Rapid Travel Rate  16000 mm/min
11  Max. Working speed 8000mm/min
12 Control System Mach 3 control system
13 Software Type3, Artcam, Ucancam
14 Machine precision 0.01mm
15  Repositioning precision 0.03mm
16 Command  G code
17  Machine Size  2950*1850*1470mm
18 Net weight 550KG
19  Dust Collector  Optional

3.Detail images of cnc router machine AKG1224.

\

    (1).Changsheng water cooling spindle, rotate speed 0-24000rpm.

\

(2).T-slot&vacuum working table with aluminum profile and PVC.

(3).Controller cabinet: Fuling inverter, 450A stepper motor and Leadshine M860 driver.

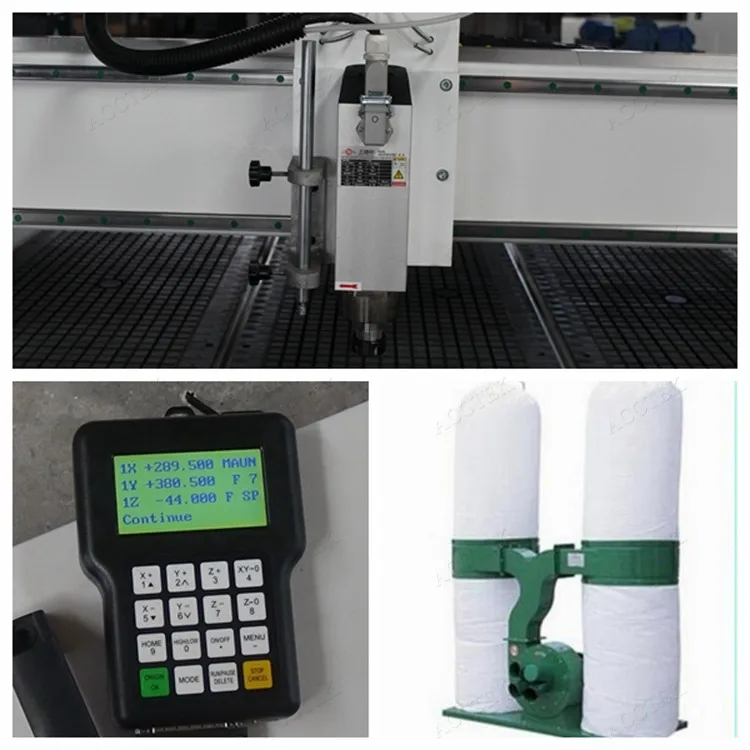

4.Optional parts for AKG1224 cnc router machine.

(1).Changsheng air cooling spindle.

(2).DSP control system.

(3).Dust collector.

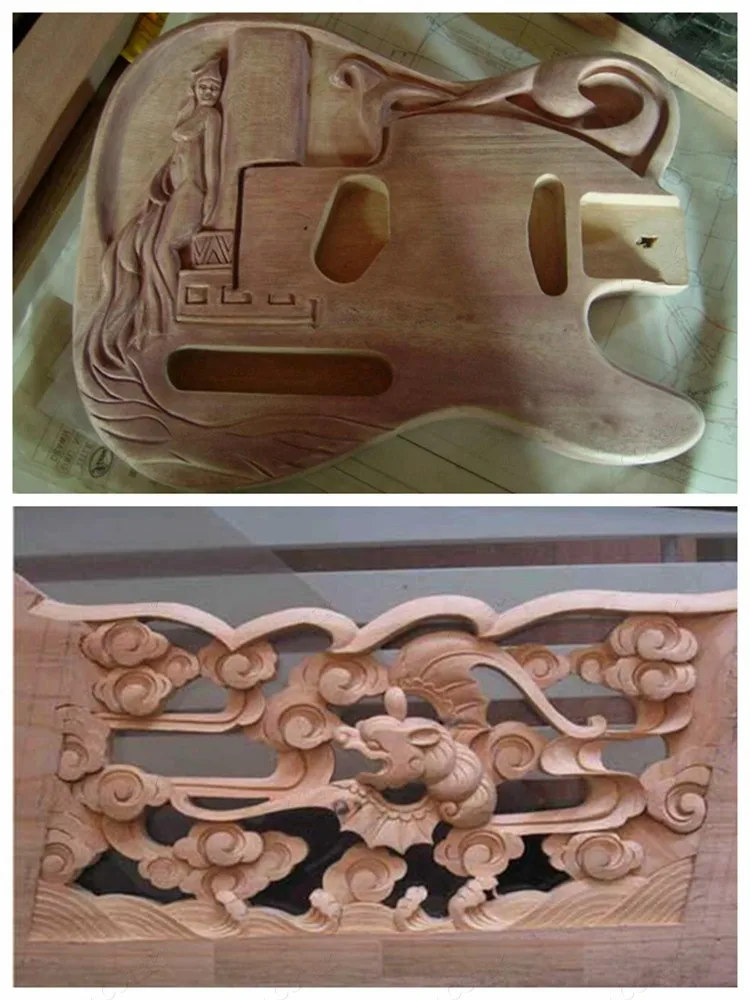

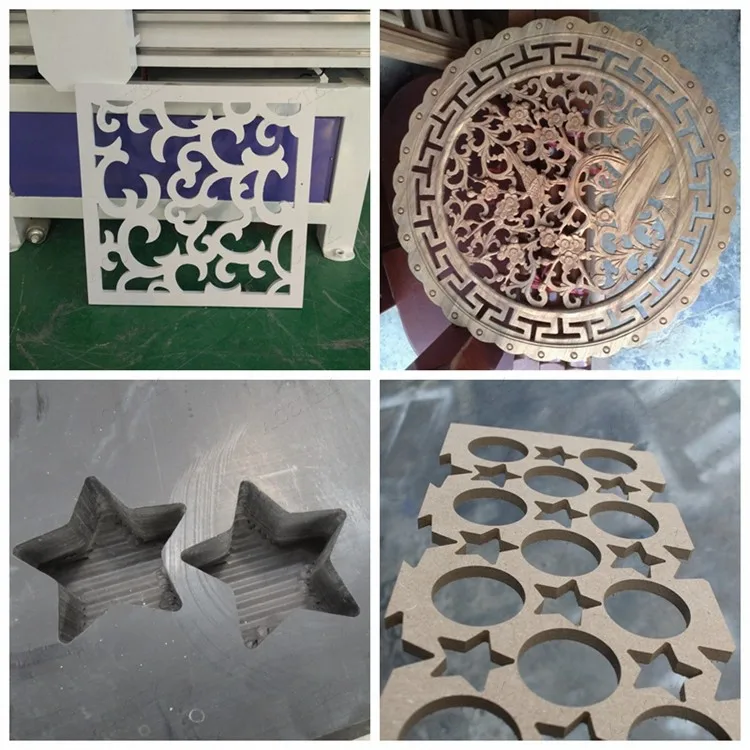

5.Samples for cnc router machine.

Product Application:

1) Mould: wood,wax, wood, gypsum,foams,wax.
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Applications materials:

Wood, mdf, plywood, stone, marble, granite,soft metal, rubber, acrylic, plastic, pvc, pcb and so on..

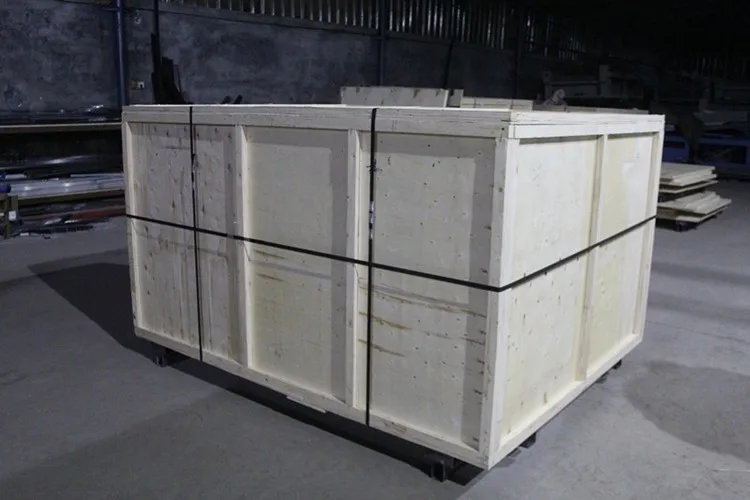

6.AccTek cnc router packaging & delivery.

We use the Plywood packages case to package products.It will leave the goods in good condition.



7.After sale services.


1)24 hours technical support by Email or Calling.
2)English manual and CD video for machine using and maintaining.
3)Hardware: 1 years on all parts (without person damaged).
Software: Whole life on update for free.
Maintenance and technological support: Whole life.
4)Engineers available to service machinery overseas.




8.About payment.

1) Fast money transfer mode: Paypal / Western Union.

2) T/T , also called wire transfer, you can pay 30% in advance, 70% before delivery.

3) Trade assurance on alibaba, this is very popular way recent years, can use visa/matercard/e-checking, very easy.




9.Contact information.



Cathy Wang
Whatsapp&Wechat: +86-17853465932
Skype: export31 @ acctekcnc.com
Email: export31 @ acctekcnc.com
Jinan AccTek Machinery Co.,Ltd
