Mini cnc router cnc engraving machine wood making cnc machine AKG6090

2018-08-14 09:26:20   views:

The mini woodworking cnc router machine adopts iron cast steel frame,work stably and smoothly It always is used for advertising,logo,sign,nameplate,hobby craft and so on
Mini cnc router cnc engraving machine wood making cnc machine AKG6090


1.Cnc engraver machine AKG6090 main features.



(1).Integral cast iron frame,more durability.

(2).Inported all steel linear guide with high precision,ensure machine frame much stability and dutability.

(3).High accuracy rolling ball screw from Gemany,assure machine frame of better precision.

(4).Handle controlling,not occupying computer resource,one computer can control several equipments.

(5).Be compatible with various CAD/CAM software as TYPE3/Artcam/Casmate/Artcut etc.

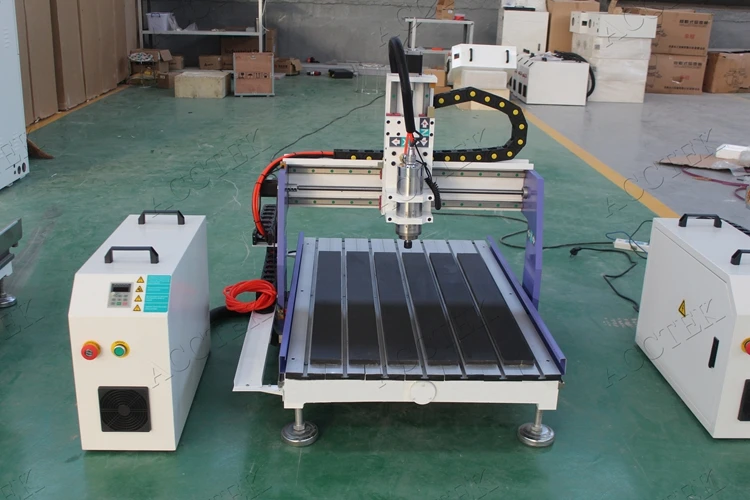

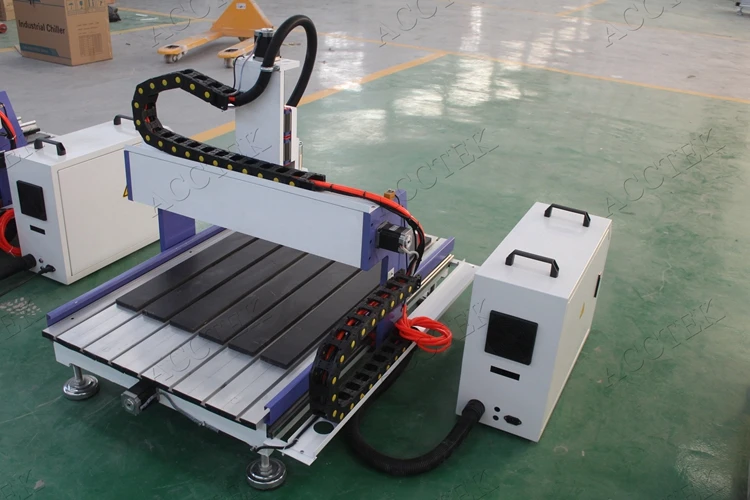

2.Cnc router machine AKG6090.

cnc router machine06.jpg

cnc router machine08.jpg


3.Main Features of cnc router machine AKG6090.



# Iron cast steel structure

# AC 220V-single phase, 50/60HZ

# Working area: 600*900*200mm

# 1.5kw water cooling spindle (24000rpm)

# Mach3 controller with USB interface

# NEMA23 Stepper motor and Leadshine M542 drivers

# Transmission: X,Y,Z axis by Taiwan TBI ball screw

# Taiwan Hiwin high accuracy 20mm linear square guide rails

# Table: T-slot table with nuts and clamps

# Shanghai Fuling inverter

# Water pump

# 1 set of advertising cutting bit

# Standard tools box for installation and maintence

# Manual book and 8GB flash disk for manual instruction

# ArtCAM software included



4.Technical Parameters of cnc router machine AKG6090.



1

Model Name

Wood cnc router AKG6090

2

X Y Z working area

600*900*200mm

3

Whole structure

Cast iron structure

4

Table surface

T-slot table with PVC

5

Movement parts

Taiwan TBI Ball screw transmition

6

Spindle

1.5kw water cooling spindle

7

Spindle speed

24000 RPM

8

Drive Motor

NEMA23 stepper motor and Leadshine M542 drivers

9

Max. Rapid Travel Rate

16000 mm/min

10

Max. Working speed

8000mm/min

11

Control System

Mach3

12

Software

Type3, Artcam, Ucancam

13

Machine precision

0.01mm

14

Repositioning precision

0.03mm

15

Command

G code

16

Working Voltage

AC 220-one phase, 50/60HZ

17

Machine Size

1400*1050*1030mm

18

Net weight

250KG

19

Dust Collector

Optional

20

Color

Can be customized as you like



5.Detail images of cnc router woodworking machine AKG6090.

(1).Changsheng water cooling spindle, rotate speed 0-24000rpm.

(2).High accuracy Taiwan TBI Ball screw transmition.

(3).T-slot working table with aluminum profile and PVC.

(4).Controller cabinet:Shanghai Fuling inverter,NEMA23 stepper motor and Leadshine M542 driver.



cnc router machine07_.jpg



cnc router machine10_.jpg



cnc router machine09_.jpg



6.Optional parts for mini advertising cnc router machine.



1) Air cooling spindle motor.

2) DSP control system and Rotary axis.



mini cnc router1.jpg




7.AKG6090 CNC Machine working samples.



1) Mould: wood,wax, wood, gypsum,foams,wax.
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic.



cnc router machine01.jpg

cnc router machine02.jpg

cnc router machine03.jpg



8.About payment.



1)Fast money transfer mode: Paypal / Western Union.

2)T/T , also called wire transfer, you can pay 30% in advance, 70% before delivery.

3)Trade assurance on alibaba, this is very popular way recent years, can use visa/matercard/e-checking, very easy.






9.AccTek cnc router packaging & delivery.



 We use the Plywood packages case to package products.It will leave the goods in good condition.



 cnc router1.jpg



10.After sale services.



1)24 hours technical support by Email or Calling.

2)English manual and CD video for machine using and maintaining.

3)Hardware: 1 years on all parts (without person damaged).
